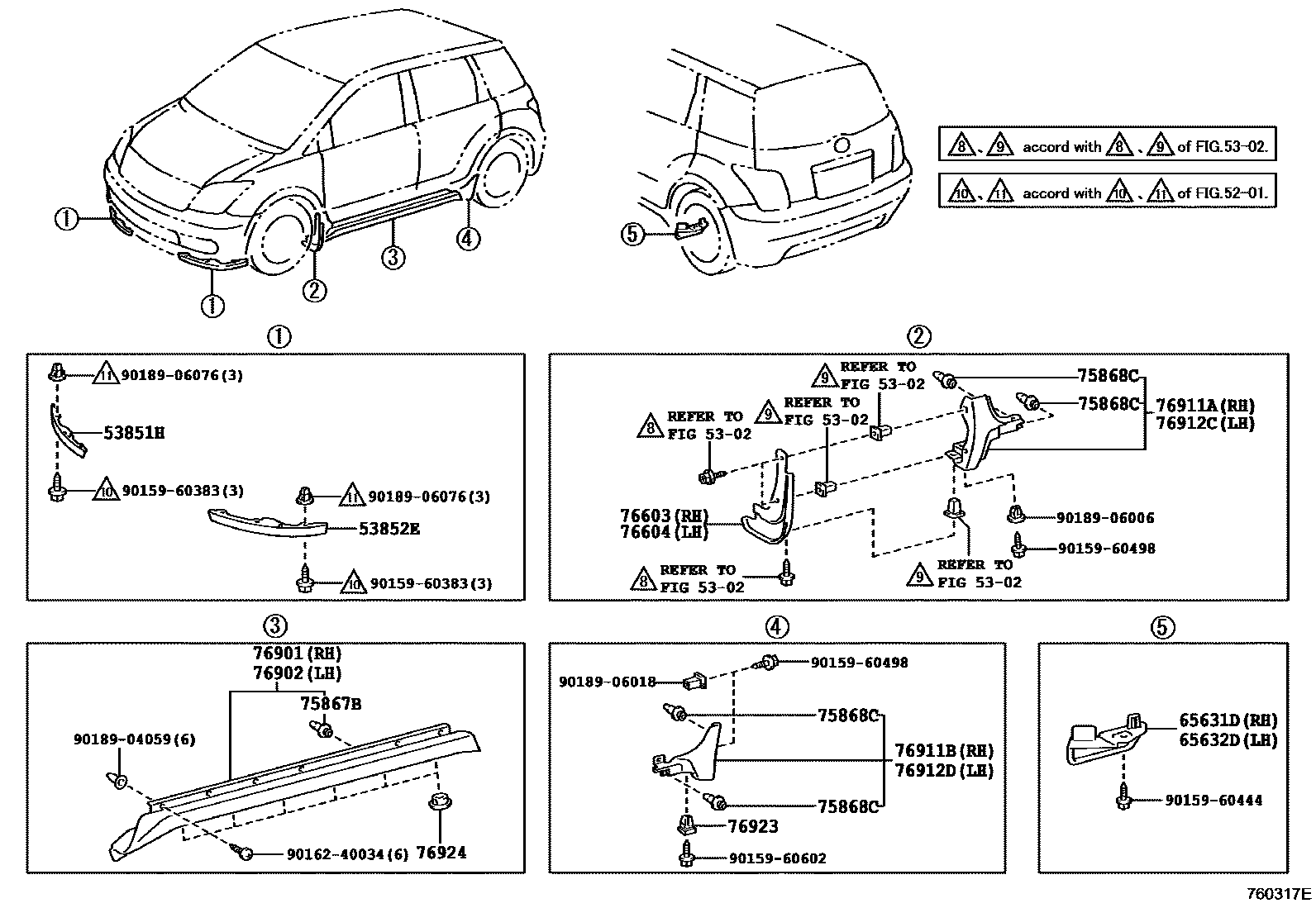

MUDGUARD & SPOILER
5302
53851HPAD, FRONT SPOILER, RH
53852EPAD, FRONT SPOILER, LH
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75867BCLIP, ROCKER PANEL MOULDING
75868CCLIP, REAR SPOILER, NO.2
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
76911AMUDGUARD, FENDER PANEL, RH
WHITE PM.,057
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
LT.OLIVE ME.,6U4
LT. BLUE M.M.,8S9
76911BMUDGUARD, SIDE, RH
WHITE PM.,057
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
BORDEAUX MC.,3P2
YELLOW PM.,595
DK.BLUE M.M.,8P4
76912CMUDGUARD, FENDER PANEL, LH
76912DMUDGUARD, SIDE, LH
WHITE PM.,057
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
BORDEAUX MC.,3P2
YELLOW PM.,595
DK.BLUE M.M.,8P4
76923RETAINER, SIDE MUDGUARD
76924RETAINER, SIDE MUDGUARD, NO.2
9015960383
main90159-60383
9015960444
main90159-60444
9015960498
main90159-60498
9015960602
main90159-60602
9016240034
main90162-40034
9018904059
main90189-04059
9018906006
main90189-06006
9018906018
main90189-06018
9018906076
main90189-06076
26 parts on this diagram · 2 diagrams in section
