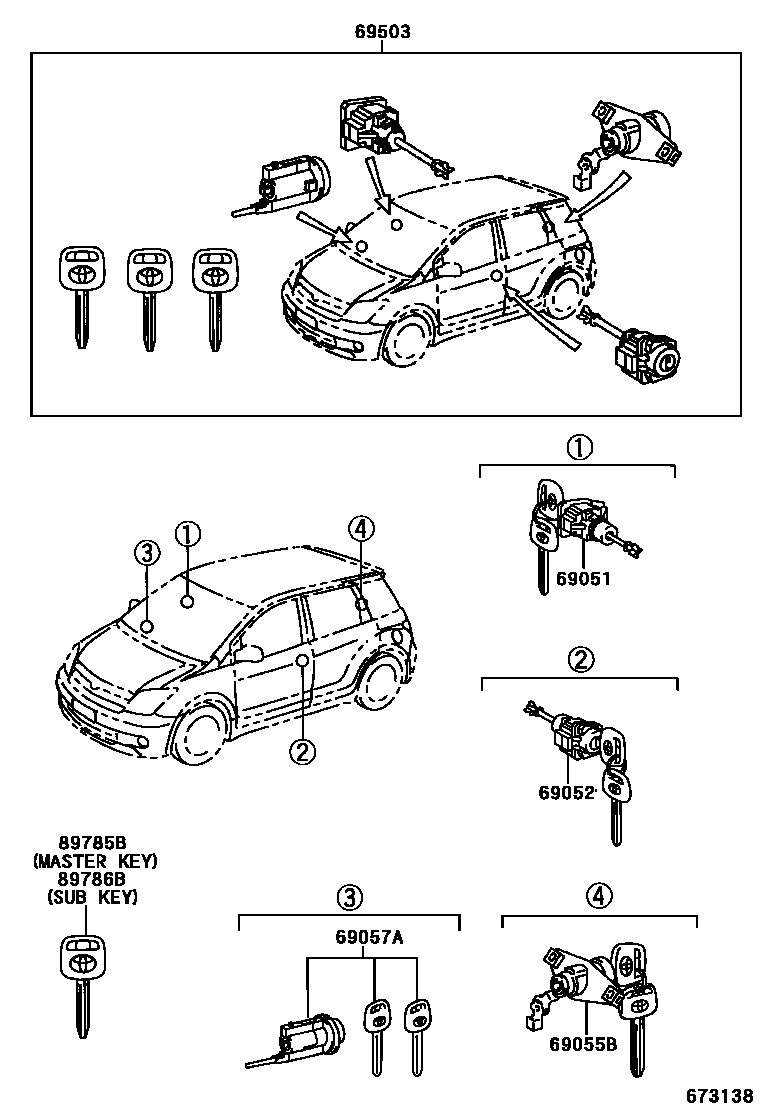

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-52190iNCP61200308-200507

sub69051-52440

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-52180iNCP61200308-200507

sub69052-52350

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-13280iNCP61200308-200507

sub69055-13290

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33280iNCP61200308-200507

69503CYLINDER SET, LOCK

main69005-52820iNCP61200308-200507

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iNCP61200308-200507

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iNCP61200308-200507

7 parts on this diagram · 1 diagram in section
