BACK DOOR LOCK & HANDLE

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-52010iNCP61200308-200612

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-52010iNCP61200308-200612

68810BPAD, BACK DOOR HINGE

main68838-10020iNCP61200308-200507

T=1.1

main68838-52010iNCP61200308-200507

T=0.5

68950CSTAY ASSY, BACK DOOR, RH

main68950-59076iNCP61200308-200507

68960STAY ASSY, BACK DOOR, LH

main68960-59046iNCP61200308-200507

69211CHANDLE, BACK DOOR OUTSIDE

main69023-13020iNCP61200308-200507

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52180iNCP61200308-200612

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-52020iNCP61200308-200507

9010506184

main90105-06184

9011906417

main90119-06417

9014880027

main90148-80027

9017910161

main90179-10161

9165140816

main91651-40816

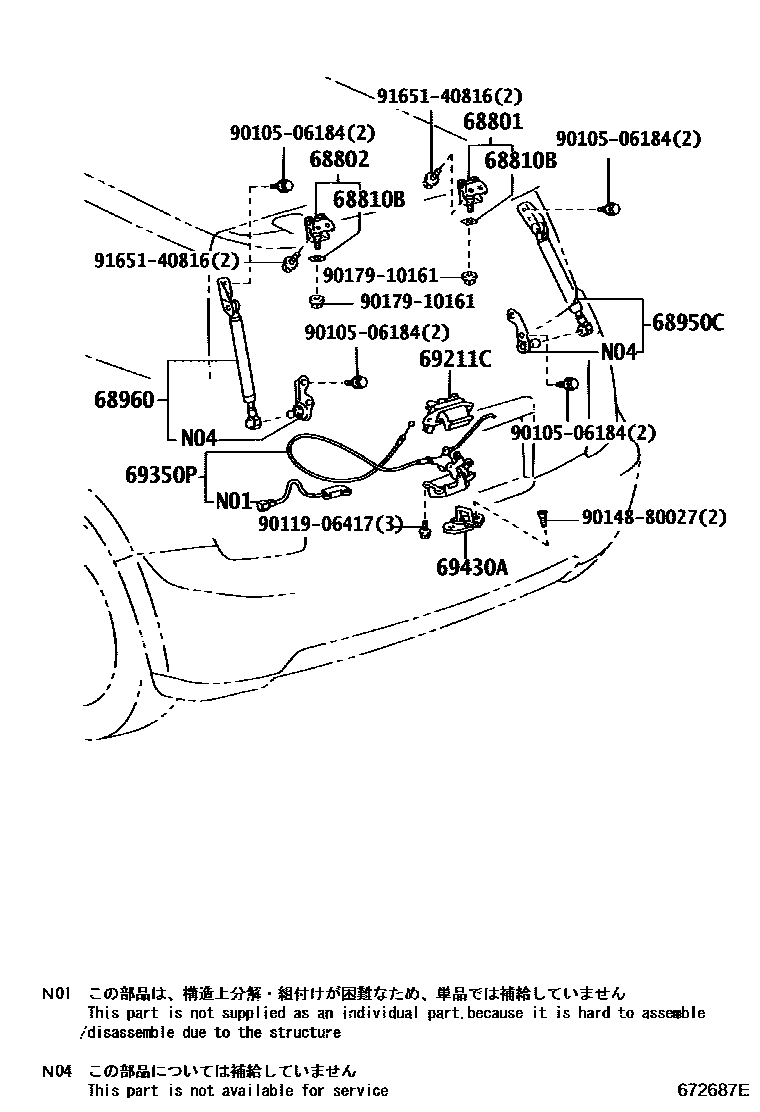

13 parts on this diagram · 1 diagram in section
