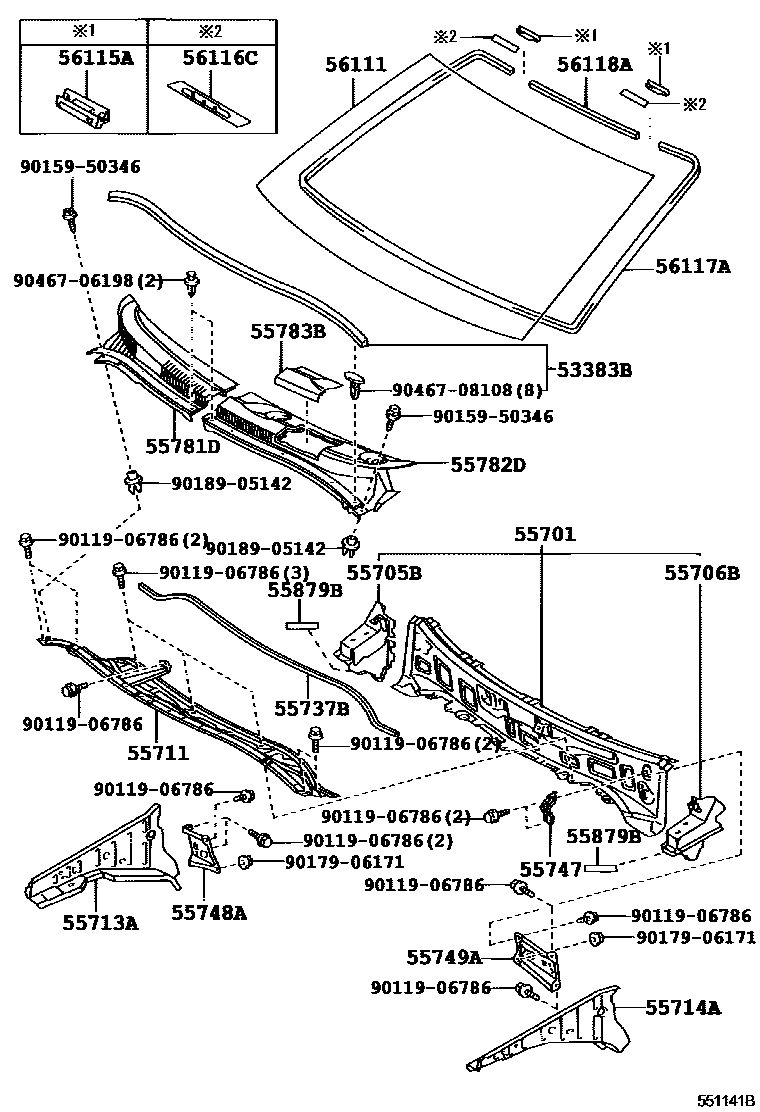

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52060iNCP61¥1,020200308-200507

55701PANEL SUB-ASSY, COWL

main55700-52100iNCP61¥33,000200308-200612

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52050iNCP61¥3,670200308-200507

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52050iNCP61¥3,670200308-200507

55711PANEL, COWL TOP, OUTER

main55701-52140iNCP61¥15,800200308-200507

55713APANEL, COWL TOP SIDE, RH

main55713-52060iNCP61¥3,620200308-200612

55714APANEL, COWL TOP SIDE, LH

main55714-52060iNCP61¥3,620200308-200612

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP61¥820200308-200507

55747STAY, COWL TOP, INNER

main55747-52100iNCP61¥740200308-200507

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-52060iNCP61¥1,320200308-200507

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-52050iNCP61¥1,320200308-200507

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-52190iNCP61¥6,200200308-200507

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-52190iNCP61¥5,400200308-200507

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52160iNCP61¥1,790200308-200507

55879BSEAL, COWL VENT

main55879-52030iNCP61¥370200308-200507

56111GLASS, WINDSHIELD

main56101-52190iNCP61¥88,100200308-200411

*LAM,T=4.56,GREEN

sub56101-52191¥88,100

main56101-52191iNCP61¥88,100200412-200507

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP61¥130200308-200507

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP61¥120200308-200507

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52010iNCP61¥1,330200308-200507

*D,L=3191

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iNCP61¥670200308-200507

*D,L=593

sub56117-74010¥750

9011906786

main90119-06786¥90

9015950346

main90159-50346¥60

9017906171

main90179-06171¥100

9018905142

main90189-05142¥70

9046706198

main90467-06198¥90

9046708108

main90467-08108¥70

26 parts on this diagram · 1 diagram in section
