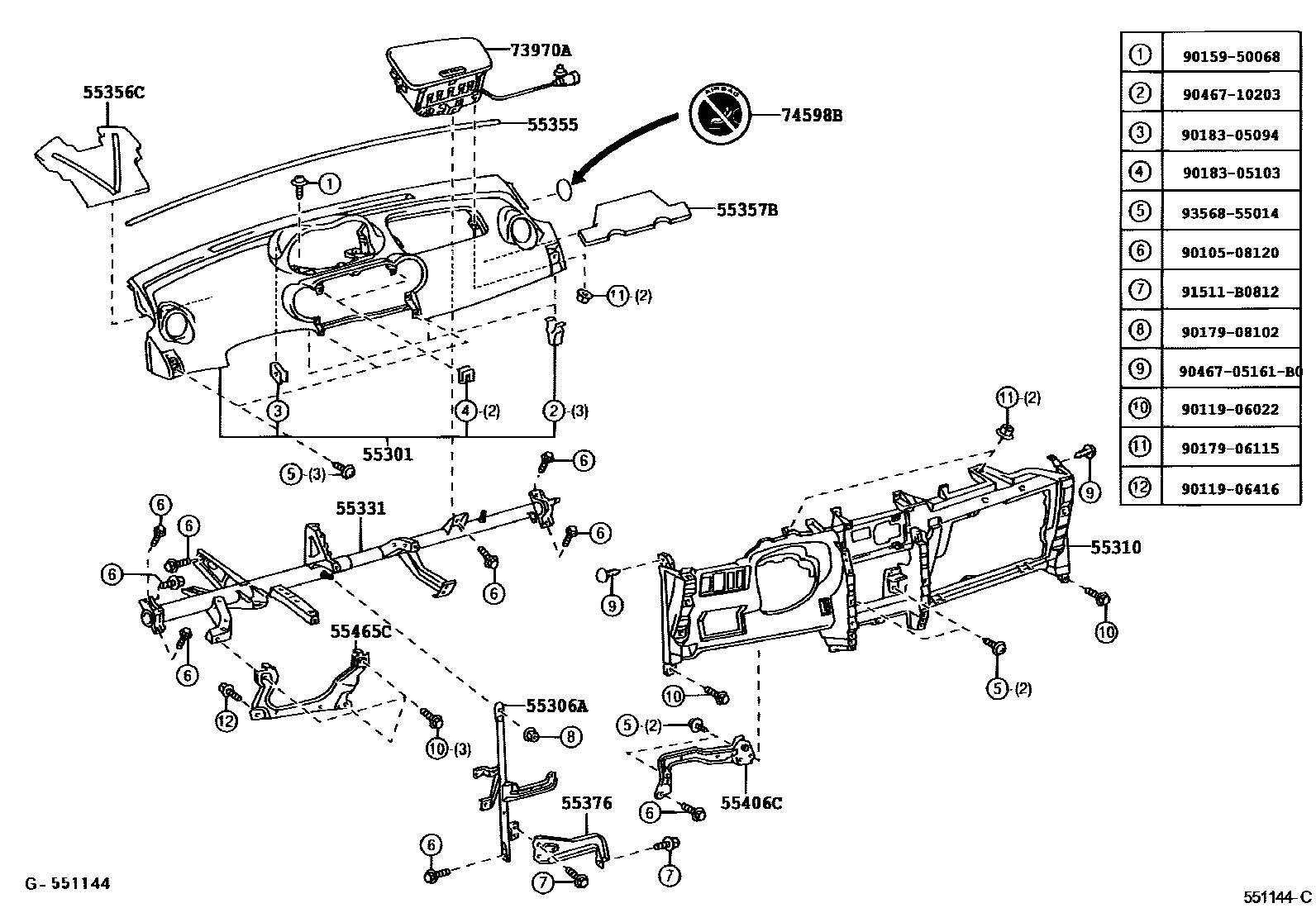

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-52110-B0iNCP61200308-200612

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52120iNCP61¥4,010200308-200608

main55306-52121iNCP61200608

55310PANEL ASSY, INSTRUMENT, LOWER

main55303-52080-B0iNCP61200308-200612

DK.GRAY,TRIM1#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52210iNCP61¥18,400200308-200608

main55330-52480iNCP61200608-200612

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52060iNCP61¥1,170200308-200507

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52120iNCP61¥1,300200308-200507

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52100iNCP61¥680200308-200507

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52030iNCP61¥1,240200308-200507

55406CINSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55406-52070iNCP61¥1,330200308-200507

55465CINSERT, INSTRUMENT PANEL LOWER PAD, LH

main55465-52050iNCP61¥2,110200308-200507

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-52180-B0iNCP61200608-200612

DK.GRAY,TRIM1#

main73970-52210-B0iNCP61200308-200608

DK.GRAY,TRIM1#

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iNCP61¥90200308-200507

9010508120

main90105-08120¥90

9011906022

main90119-06022¥130

9011906416

main90119-06416¥120

9015950068

main90159-50068¥70

9017906115

main90179-06115¥120

9017908102

main90179-08102¥160

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9046705161B0

main90467-05161B0

9046710203

main90467-10203¥60

91511B0812

main91511-B0812¥90

9356855014

main93568-55014¥70

24 parts on this diagram · 4 diagrams in section
