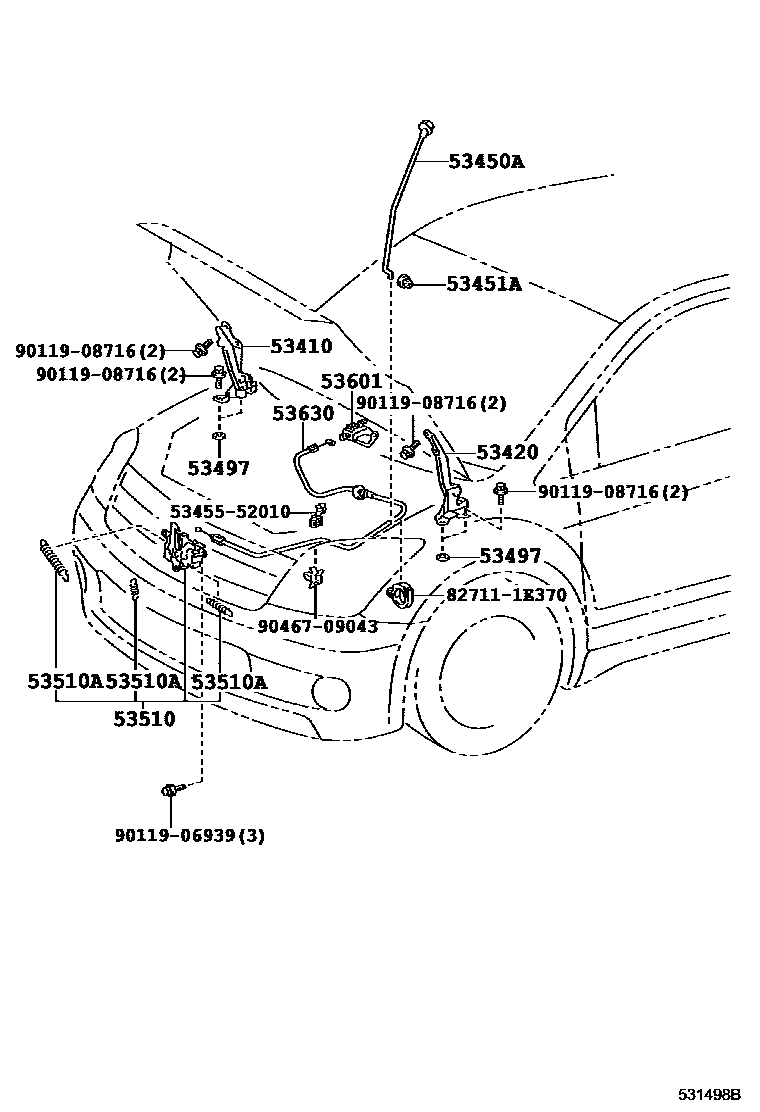

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52010iNCP61200308-200612

53420HINGE ASSY, HOOD, LH

main53420-52010iNCP61200308-200612

53450ASUPPORT ASSY, HOOD, LH

main53440-52020iNCP61200308-200507

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iNCP61200308-200507

53497PAD, HOOD HINGE, NO.1

main53497-10020iNCP61200308-200507

T=1.5

main53497-42010iNCP61200308-200507

T=0.5

53510LOCK ASSY, HOOD

main53510-52191iNCP61200308-200507

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP61200308-200507

WD=0.9,CW=21

main90506-12063iNCP61200308-200507

WD=1.2,CW=8.5

main90506-18067iNCP61200308-200507

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNCP61200308-200612

DK.GRAY,TRIM1#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52050iNCP61200308-200607

sub53630-52051

main53630-52051iNCP61200608

5345552010CLAMP, HOOD SUPPORT ROD

main53455-52010

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9011908716

main90119-08716

9046709043

main90467-09043

14 parts on this diagram · 1 diagram in section
