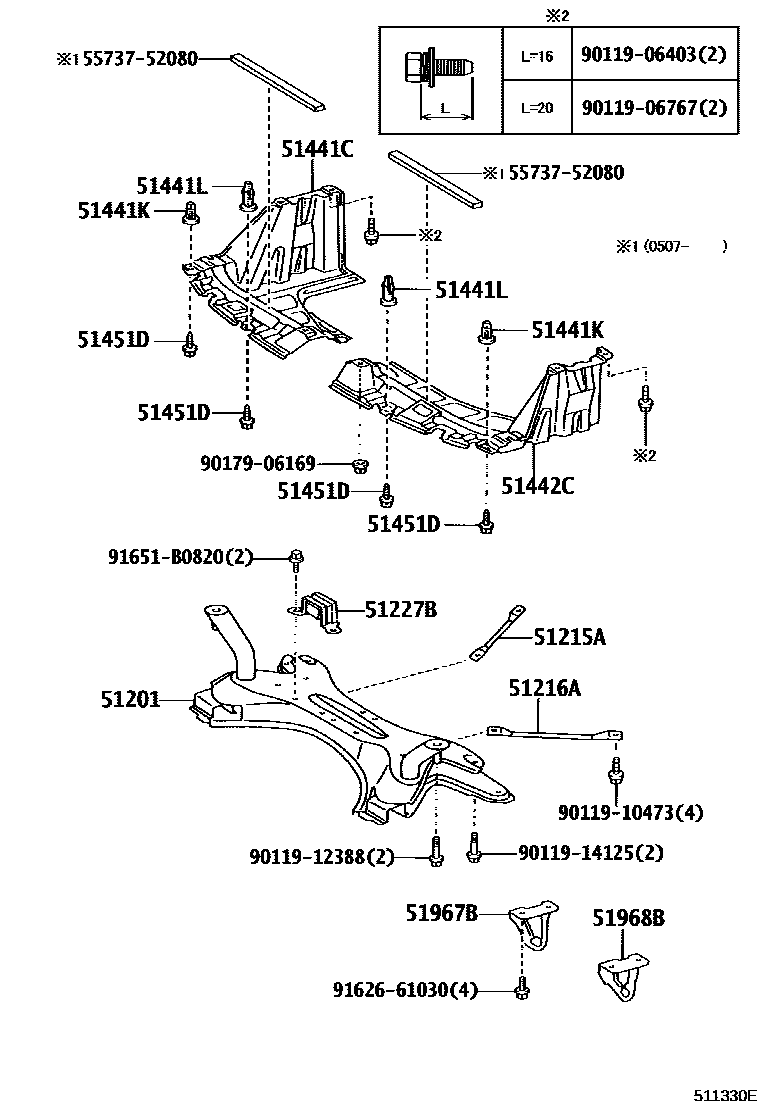

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52014iNCP61200308-200507

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-52010iNCP61200308-200507

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-52010iNCP61200308-200507

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-52060iNCP61200308-200507

51441CCOVER, ENGINE UNDER, RH

main51441-52010iNCP61200308-200507

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06076×2iNCP61200308-200507

51441LGROMMET, NO.2(FOR ENGINE UNDER COVER)

main90189-06177×2iNCP61200308-200507

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNCP61..4FC200308-200507

main51442-52030iNCP61..5F200308-200507

51451DSCREW, NO.1

main90159-60383×4iNCP61200507-200612

51967BHOOK, TRANSPORT, REAR RH

main51967-52030iNCP61200308-200507

51968BHOOK, TRANSPORT, REAR LH

main51967-52030iNCP61200308-200507

5573752080GARNISH, COWL VENTILATOR, RH

main55737-52080

9011906403

main90119-06403

9011906767

main90119-06767

9011910473

main90119-10473

9011912388

main90119-12388

9011914125

main90119-14125

9017906169

main90179-06169

9162661030

main91626-61030

91651B0820

main91651-B0820

20 parts on this diagram · 1 diagram in section
