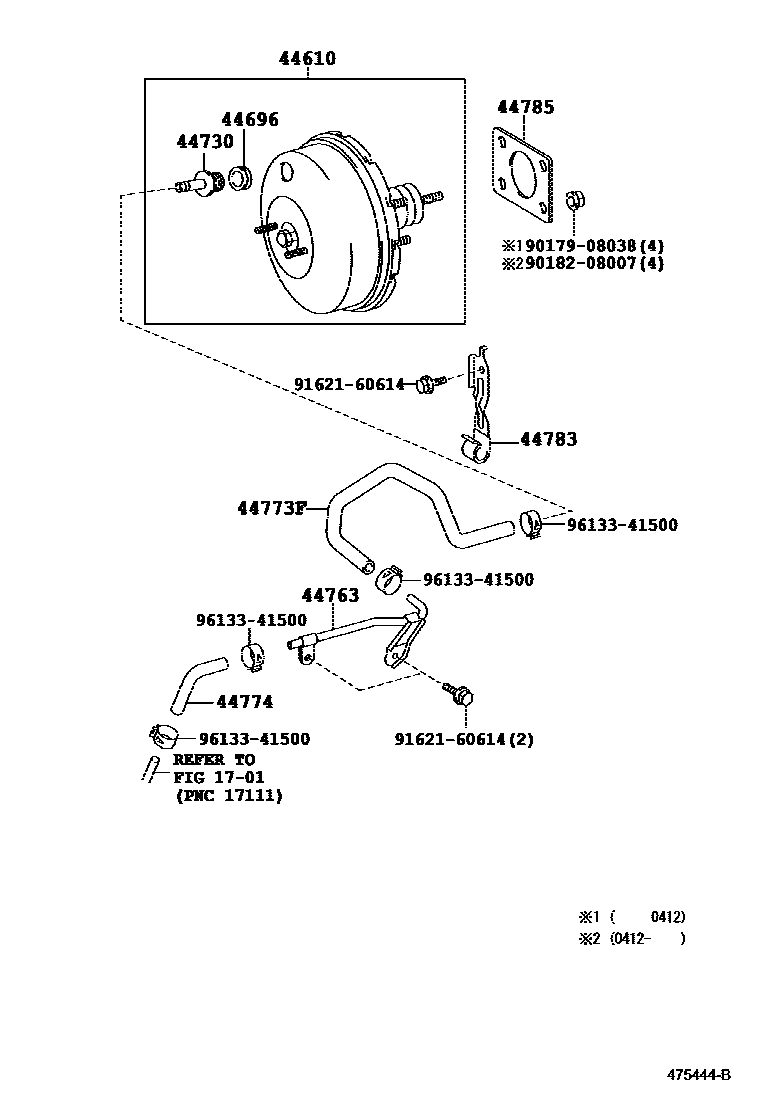

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-52330iNCP61¥46,700200308-200309

sub44610-52331¥46,600

main44610-52331iNCP61¥46,600200309-200612

44696GROMMET, CHECK VALVE

main90480-24015iNCP61¥130200308-200507

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iNCP61¥1,360200308-200507

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP61¥1,930200308-200507

44773FHOSE, UNION TO CHECK VALVE

main44773-52040iNCP61¥2,380200308-200507

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP61¥460200308-200507

44783CLAMP, VACUUM HOSE

main44783-52020iNCP61¥670200308-200507

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP61¥220200308-200507

9017908038

main90179-08038¥130

9018208007

main90182-08007¥100

9162160614

main91621-60614¥120

9613341500

main96133-41500¥140

13 parts on this diagram · 1 diagram in section
