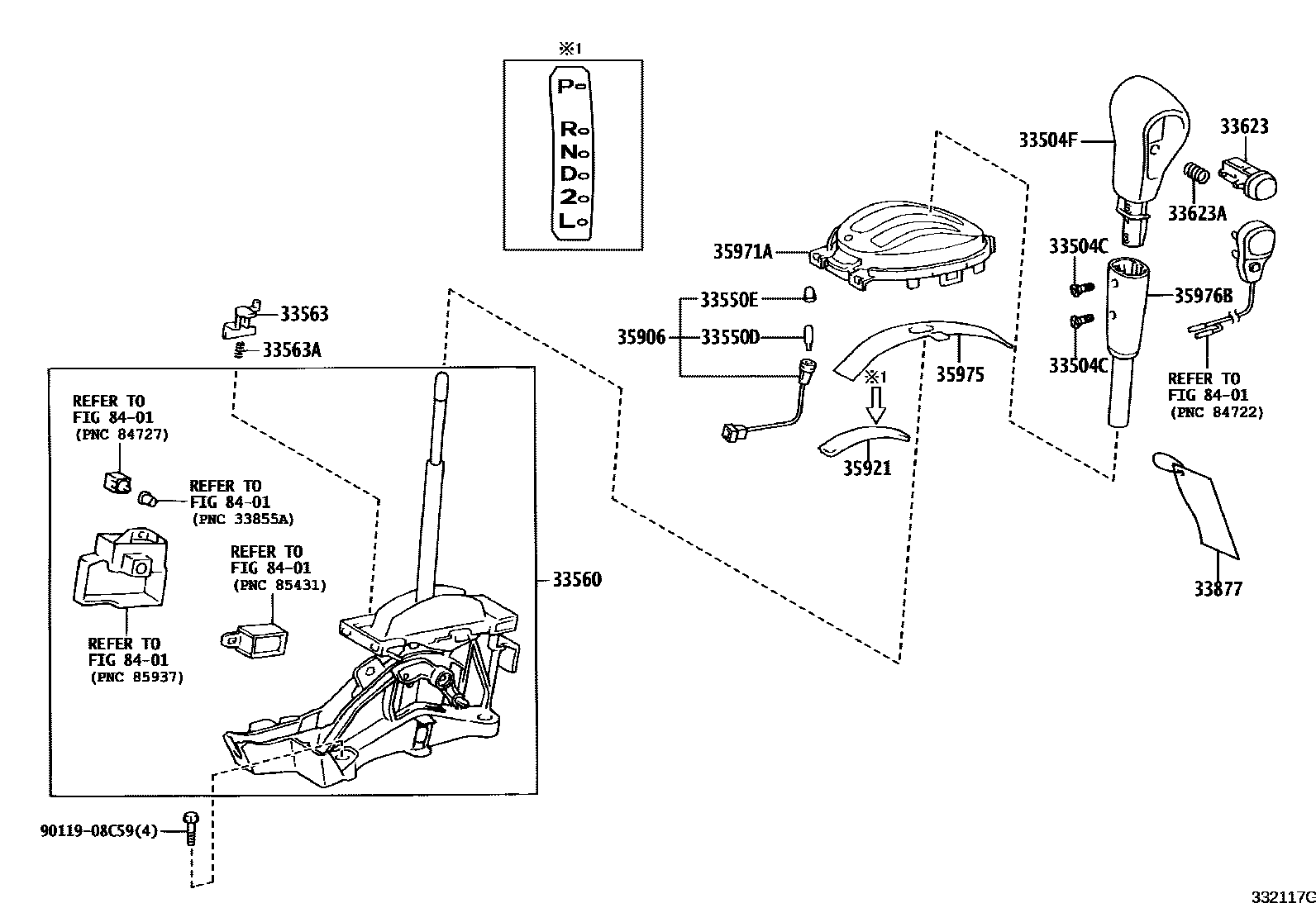

SHIFT LEVER & RETAINER
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
33550ECAP, POSITION INDICATOR LAMP
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33623BUTTON, SHIFT LEVER KNOB
DK.GRAY,TRIM1#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
DK.GRAY,TRIM1#
8401
9011908C59
main90119-08C59
17 parts on this diagram · 3 diagrams in section
