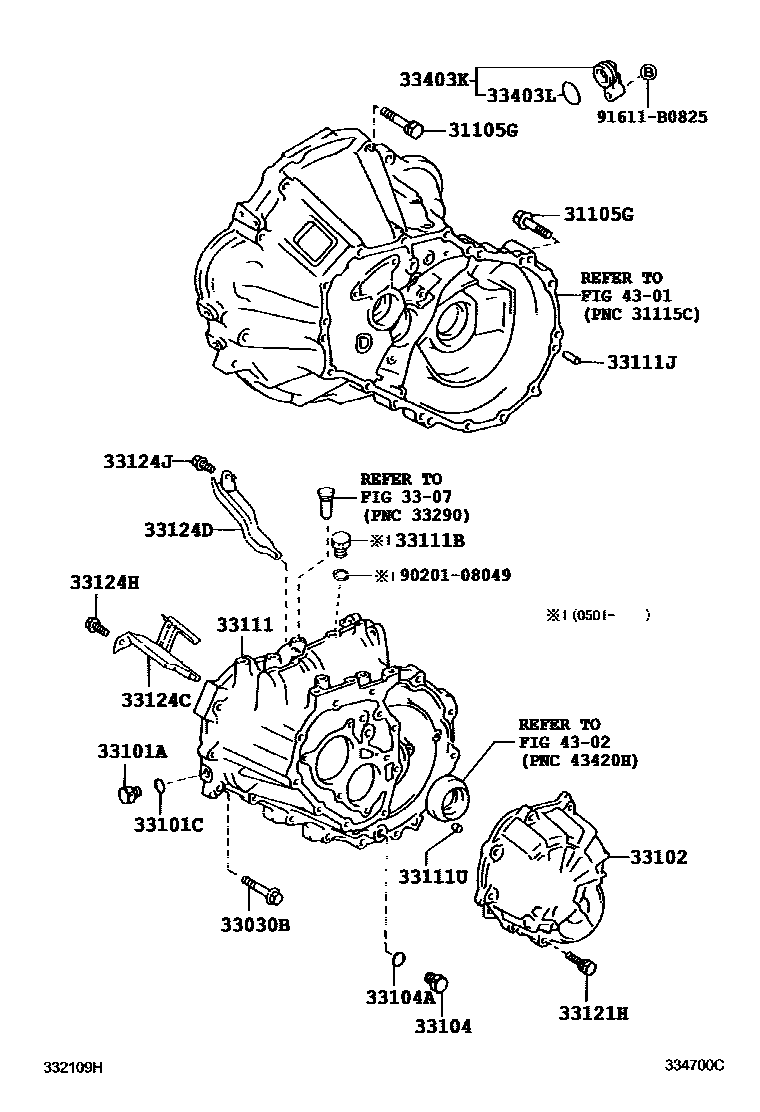

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX45-30
*10-1.25PX50-30
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
*8-1.25PX50-30
*8-1.25PX45-27.5
3307
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
sub33111-12280
33111BBOLT, STUD OR BOLT(FOR TRANSMISSION CASE)
*8-1.25PX14-12
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33124JBOLT, W/WASHER
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
4301
4302
9020108049
main90201-08049
91611B0825
main91611-B0825
23 parts on this diagram · 1 diagram in section
