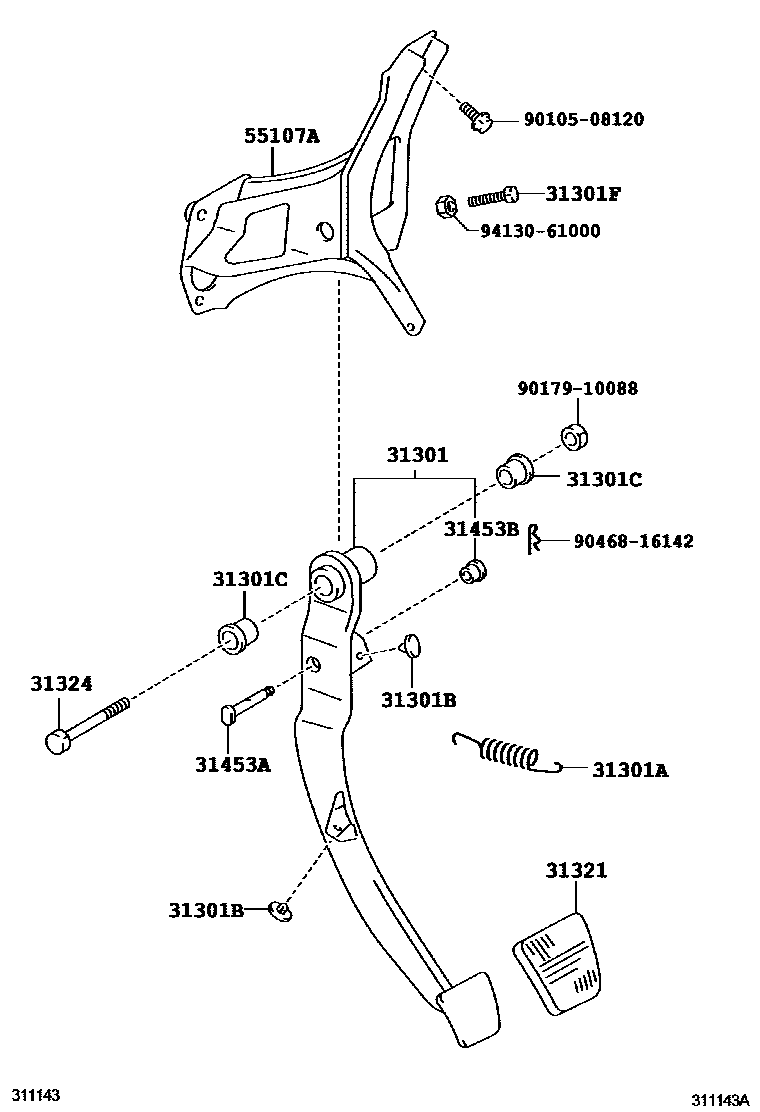

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52020iNCP61..5F¥2,000200308-200507

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP61..5F¥100200308-200507

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP61..5F¥110200308-200507

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP61..5F¥120200308-200507

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNCP61..5F¥110200308-200507

31321PAD, CLUTCH PEDAL

main31321-52010iNCP61..5F¥200200308-200507

31324SHAFT, CLUTCH PEDAL

main90109-10167iNCP61..5F¥190200308-200507

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08294iNCP61..5F¥260200308-200507

L=48.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNCP61..5F¥240200308-200612

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52040iNCP61..5F¥4,010200308-200612

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

9413061000

main94130-61000¥70

14 parts on this diagram · 2 diagrams in section
