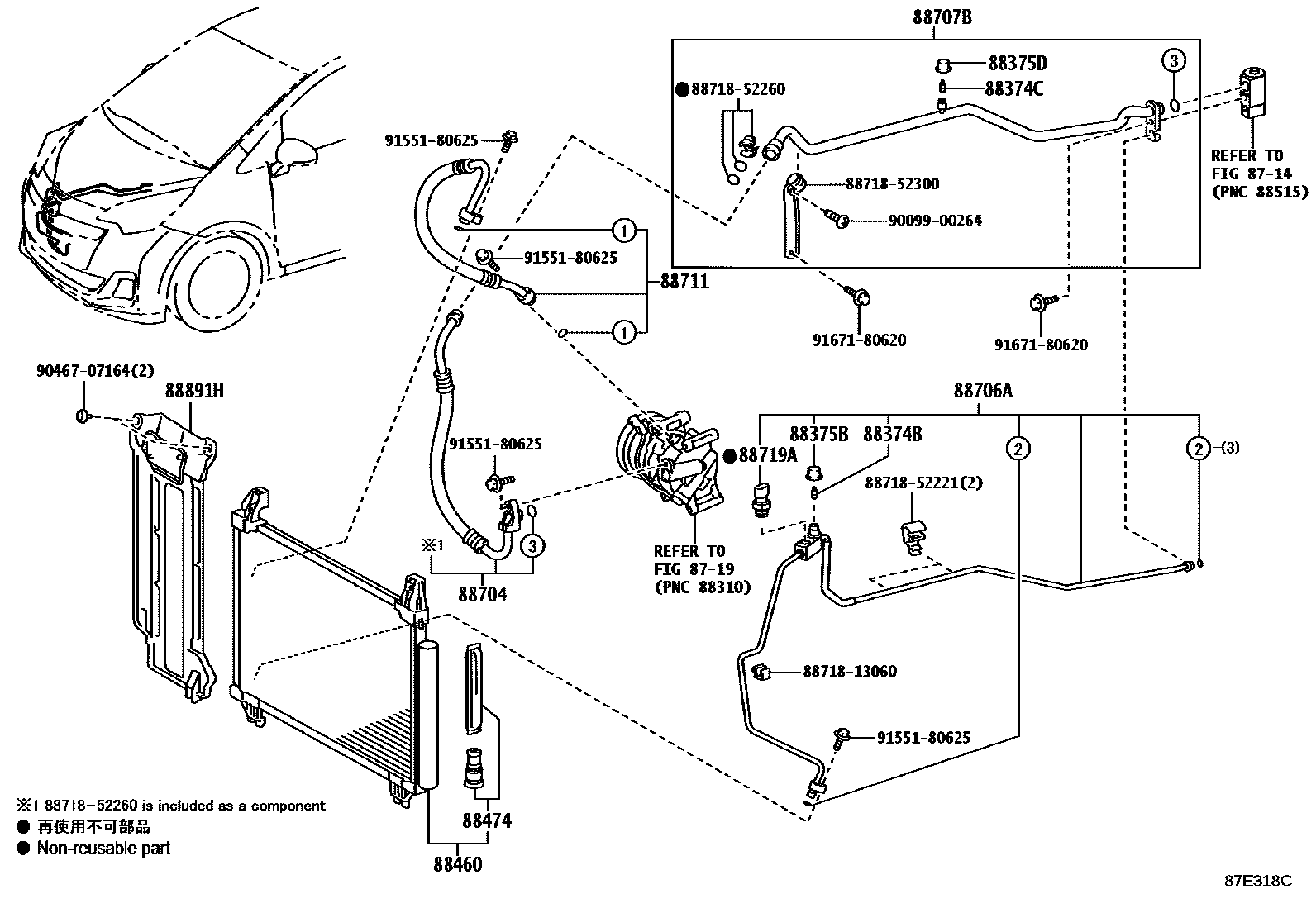

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNCP120201011-201405

88374CVALVE, SERVICE, NO.2

main88374-30010iNCP120201011-201405

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iNCP120201011-201405

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iNCP120201011-201405

88460CONDENSER ASSY, COOLER

main88460-52130iNCP120201011-201405

88474DRYER, COOLER

main88474-12030iNCP120201011-201405

88704HOSE SUB-ASSY, SUCTION

main88704-52230iNCP120201011-201405

88706ATUBE SUB-ASSY, LIQUID, A

main88706-52540iNCP120201011-201405

main88706-52620iNCP120201405

88707BTUBE SUB-ASSY, SUCTION, B

main88707-52300iNCP120201011-201405

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52380iNCP120201011-201405

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNCP120201011-201405

88891HCOVER, COOLER, NO.1

main88891-52100iNCP120201011-201405

8871813060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-13060

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

8871852260PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52260

8871852300PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52300

9009900264

main90099-00264

9046707164

main90467-07164

9155180625

main91551-80625

9167180620

main91671-80620

22 parts on this diagram · 3 diagrams in section
