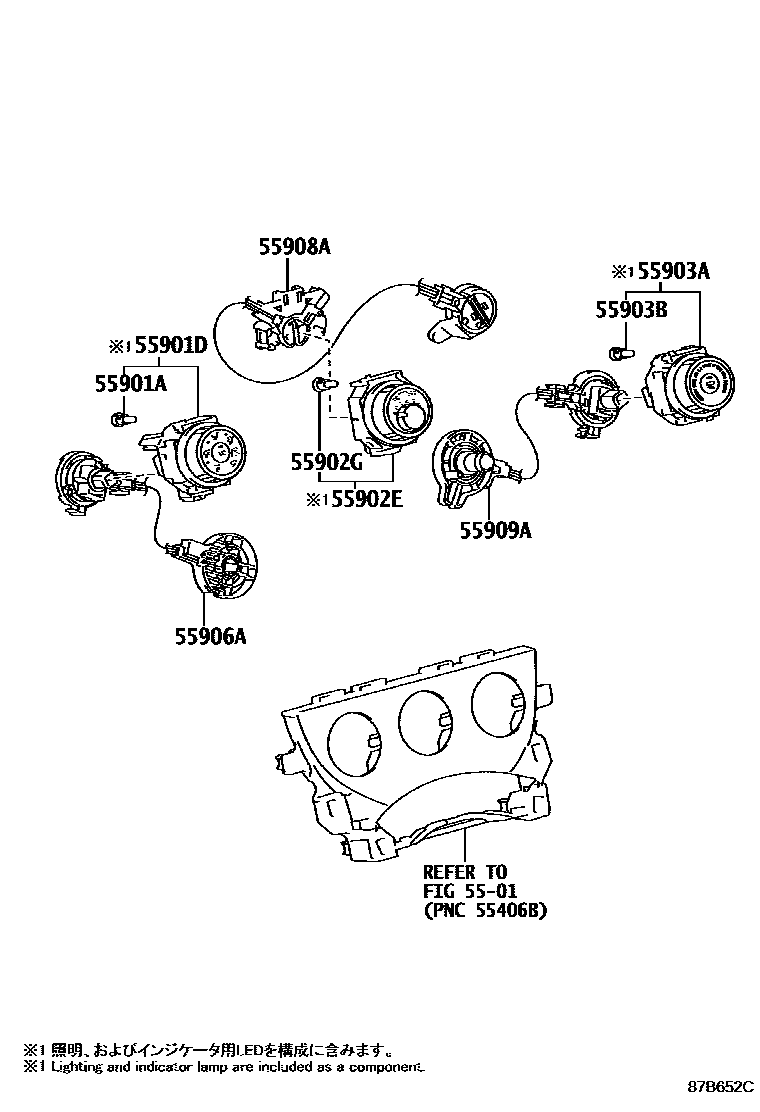

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55901ABULB, HEATER CONTROL SUB-ASSY, NO.1
55901DCONTROL SUB-ASSY, HEATER, NO.1
55902ECONTROL SUB-ASSY, HEATER, NO.2
55902GBULB, HEATER CONTROL SUB-ASSY, NO.2
55903ACONTROL SUB-ASSY, HEATER, NO.3
55903BBULB, HEATER CONTROL SUB-ASSY, NO.3
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
10 parts on this diagram · 4 diagrams in section
