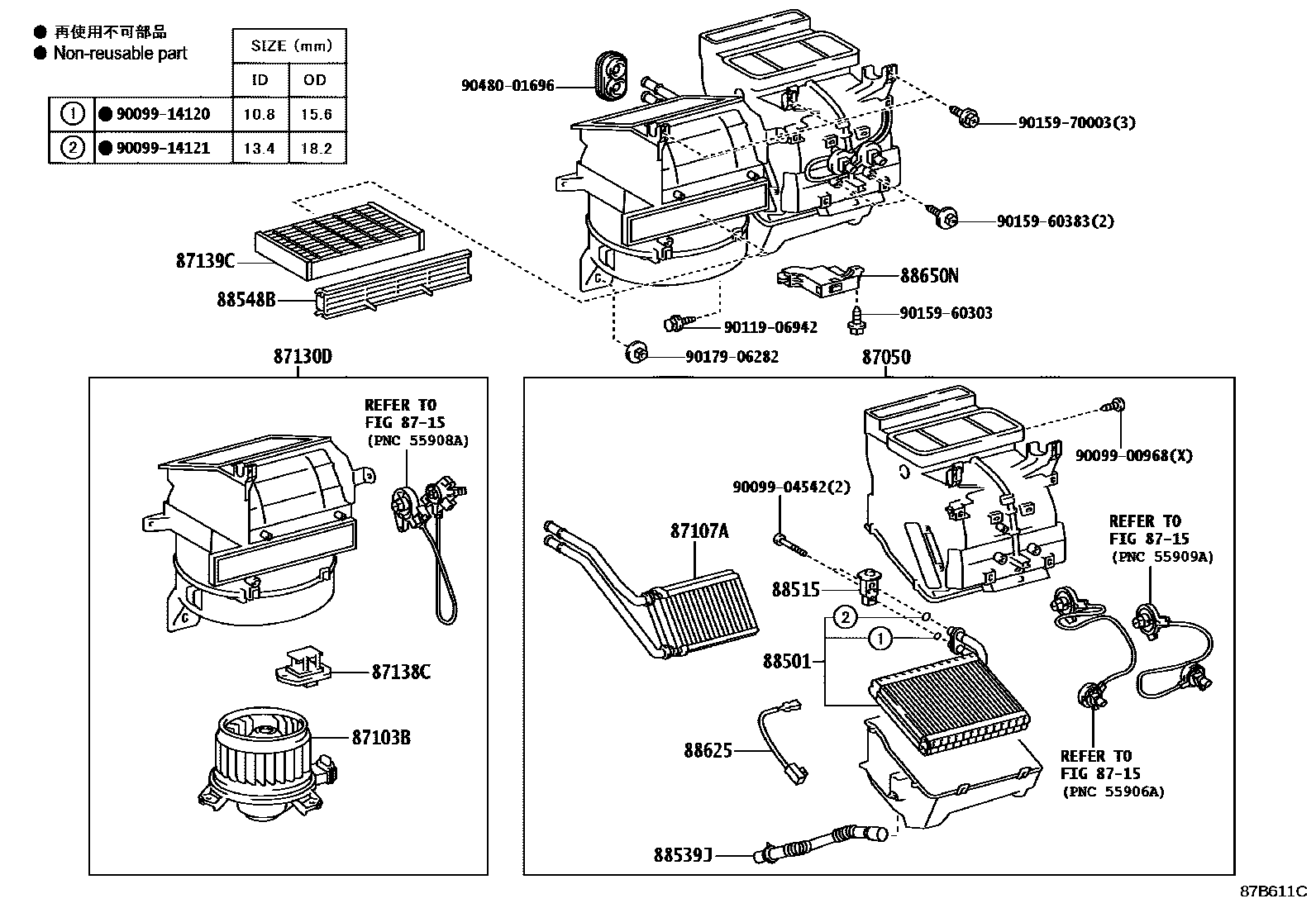

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52131iNCP120..TERRA201405

main87050-52141iNCP120..LUNA201405

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52120iNCP120..TERRA201011-201012

main87103-52121iNCP120..TERRA201101-201405

main87103-52131iNCP120..LUNA201011-201012

main87103-52132iNCP120..LUNA201405

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52061iNCP120201011-201405

87130DBLOWER ASSY

main87130-52050iNCP120..TERRA201405

main87130-52061iNCP120..LUNA201405

87138CRESISTOR, BLOWER

main87138-52030iNCP120..TERRA201011-201405

87139CFILTER, CLEAN AIR

main87139-30040iNCP120201011-201205

POLLEN FILTER

main87139-50100iNCP120201205-201405

*DPF

main87139-52020iNCP120201011-201405

MICRO DUST FILTER

main87139-52040iNCP120201405

POLLEN FILTER

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52102iNCP120201011-201111

main88501-52103iNCP120201405

88515VALVE, COOLER EXPANSION

main88515-68010iNCP120201011-201405

88539JHOSE, DRAIN COOLER

main88539-52020iNCP120201011-201012

sub88539-52040

main88539-52030iNCP120201101-201405

88548BCASE, AIR FILTER

main88548-52040iNCP120201405

88625THERMISTOR, COOLER, NO.1

main88625-26090iNCP120201011-201405

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52680iNCP120..TERRA201011-201109

main88650-52710iNCP120..LUNA201011-201208

main88650-52880iNCP120..TERRA201110-201208

main88650-52890iNCP120..TERRA201208-201405

main88650-52A10iNCP120..LUNA201208-201405

main88650-52A30iNCP120..LUNA201405

main88650-52A90iNCP120..TERRA201405

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9015960303

main90159-60303

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696

23 parts on this diagram · 2 diagrams in section
