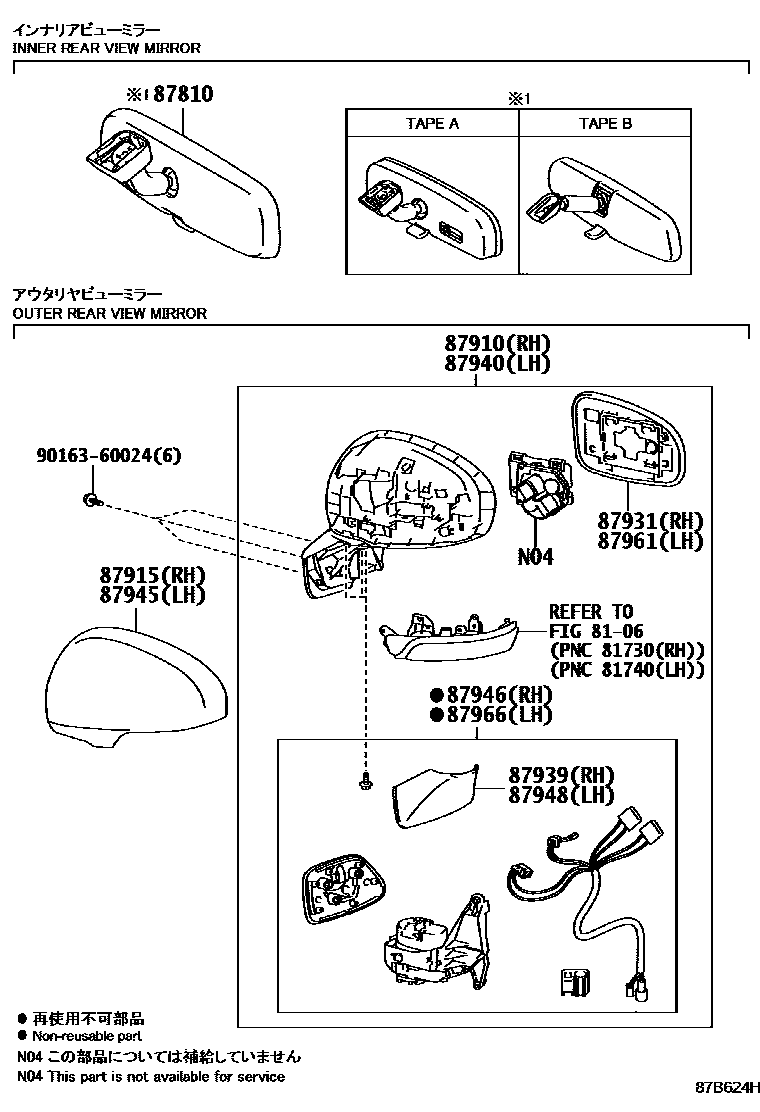

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
TYPE A
TYPE B
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
BRONZE M.M.,4T3
DK. BROWN M.M.,4U3
TURQUOISE ME.,777
LT.BLUE M.M.,8S7
SATIN BLUE M.M.,8V9
DEEP AMETHYST M.M.,9AH
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
BRONZE M.M.,4T3
DK. BROWN M.M.,4U3
TURQUOISE ME.,777
LT.BLUE M.M.,8S7
SATIN BLUE M.M.,8V9
DEEP AMETHYST M.M.,9AH
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9016360024
main90163-60024
13 parts on this diagram · 1 diagram in section
