SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1DOOR,ROOF,FLOOR & BACK DOOR

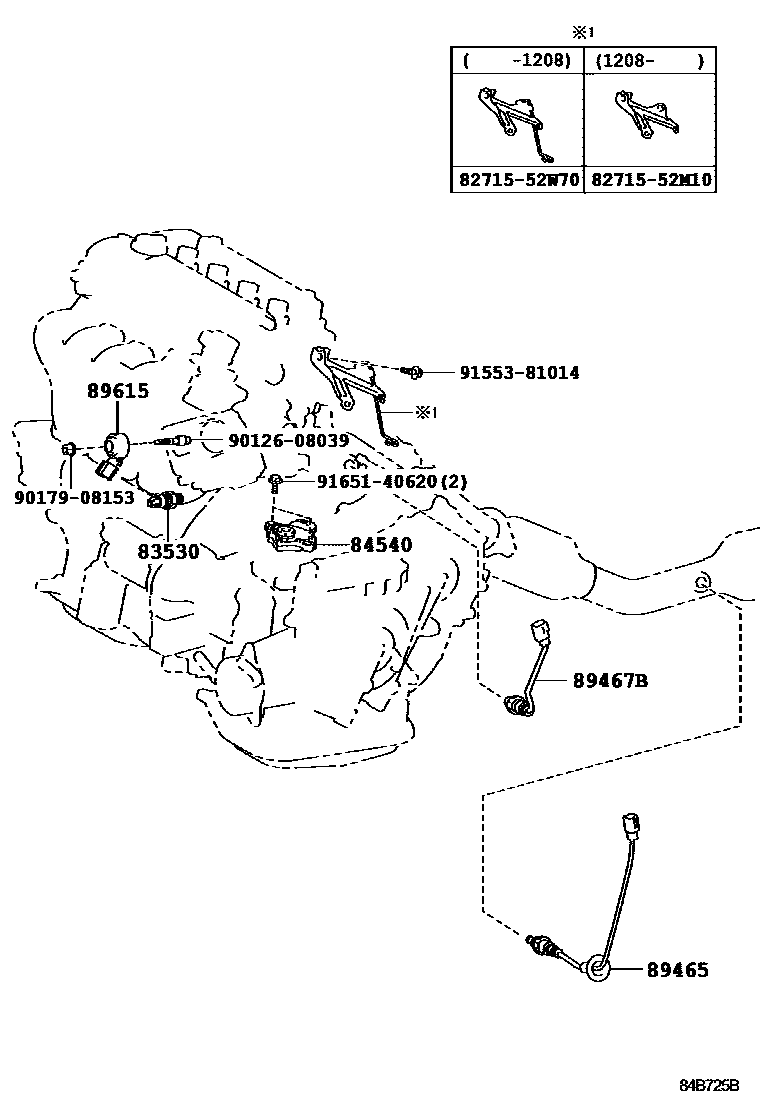

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP120201405

DENSO

main83530-60020iNCP120201011-201405

main83530-60020iNCP120201405

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNCP120201011-201607

89465SENSOR, OXYGEN

main89465-12A90iNCP120201208-201405

main89465-52480iNCP120201011-201208

main89465-52750iNCP120201405

89467BSENSOR, AIR FUEL RATIO

main89467-12160iNCP120201208-201405

main89467-52130iNCP120201011-201208

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP120201011-201405

8271552M10BRACKET,WIRING HARNESS CLAMP

main82715-52M10

8271552W70BRACKET,WIRING HARNESS CLAMP

main82715-52W70

9012608039

main90126-08039

9017908153

main90179-08153

9155381014

main91553-81014

9165140620

main91651-40620

11 parts on this diagram · 8 diagrams in section
