WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1CLAMP & BRACKET 0007 1CONNECTOR 1/2 0008 1CONNECTOR 2/2

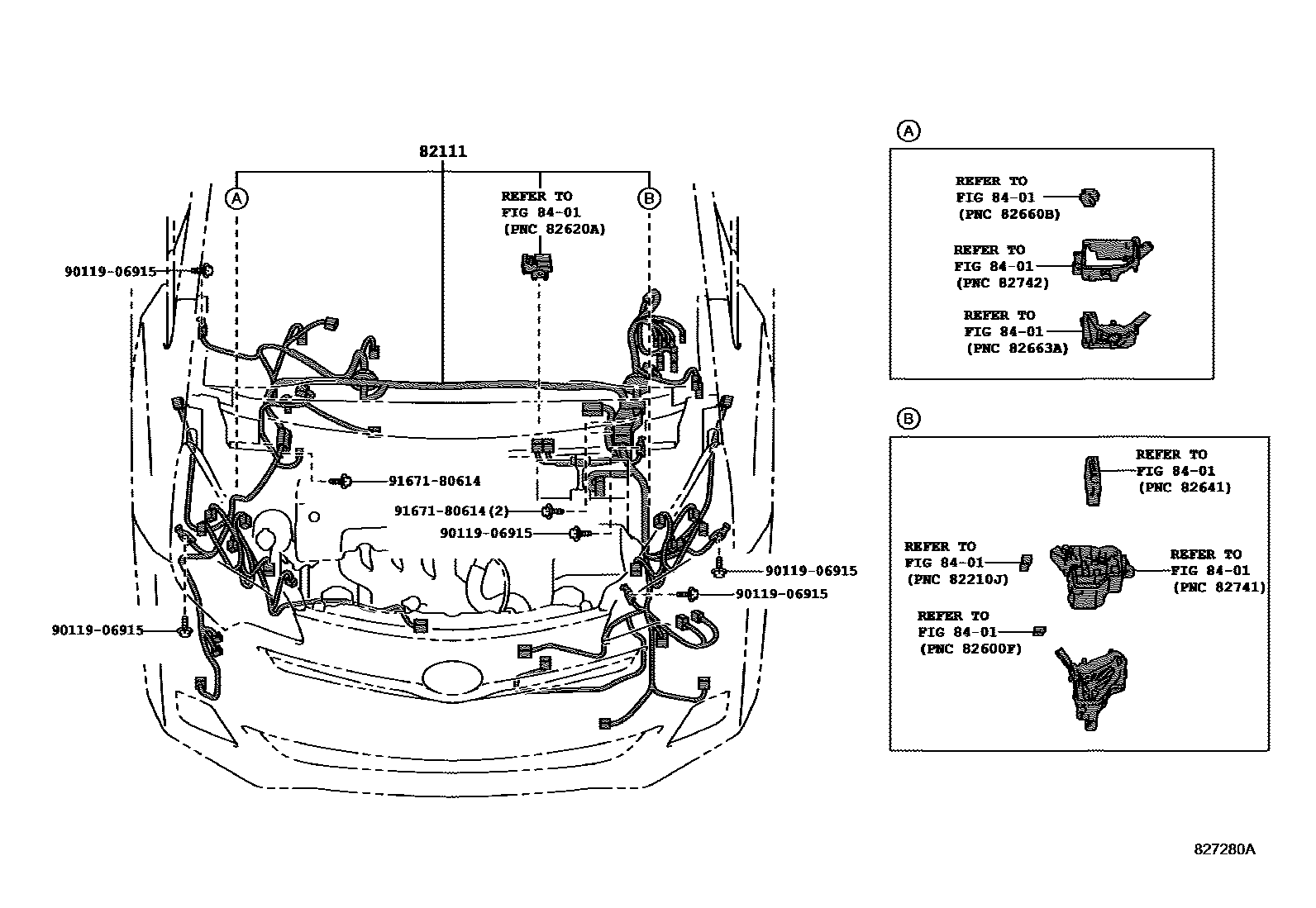

82111WIRE, ENGINE ROOM MAIN

main82111-5CL00iNCP120..TERRA201011-201208

main82111-5CL10iNCP120..LUNA201011-201208

main82111-5CL30iNCP120..LUNA201011-201112

HEADLAMP-DISCHARGE

main82111-5CL31iNCP120..LUNA201112-201208

HEADLAMP-DISCHARGE

main82111-5CV70iNCP120..LUNA201305-201405

main82111-5CV80iNCP120..TERRA201208-201305

main82111-5CV90iNCP120..TERRA201305-201310

main82111-5CV91iNCP120..TERRA201310-201405

main82111-5CW00iNCP120..LUNA201208-201305

main82111-5CW30iNCP120..LUNA201208-201305

HEADLAMP-DISCHARGE

main82111-5CW40iNCP120..LUNA201305-201405

HEADLAMP-DISCHARGE

main82111-5DA90iNCP120..TERRA201405

main82111-5DB90iNCP120..LUNA201405

main82111-5DC00iNCP120..LUNA201405

HEAD LAMP-DISCHARGE W(SMOKE)

8401

9011906915

main90119-06915

9167180614

main91671-80614

4 parts on this diagram · 8 diagrams in section
