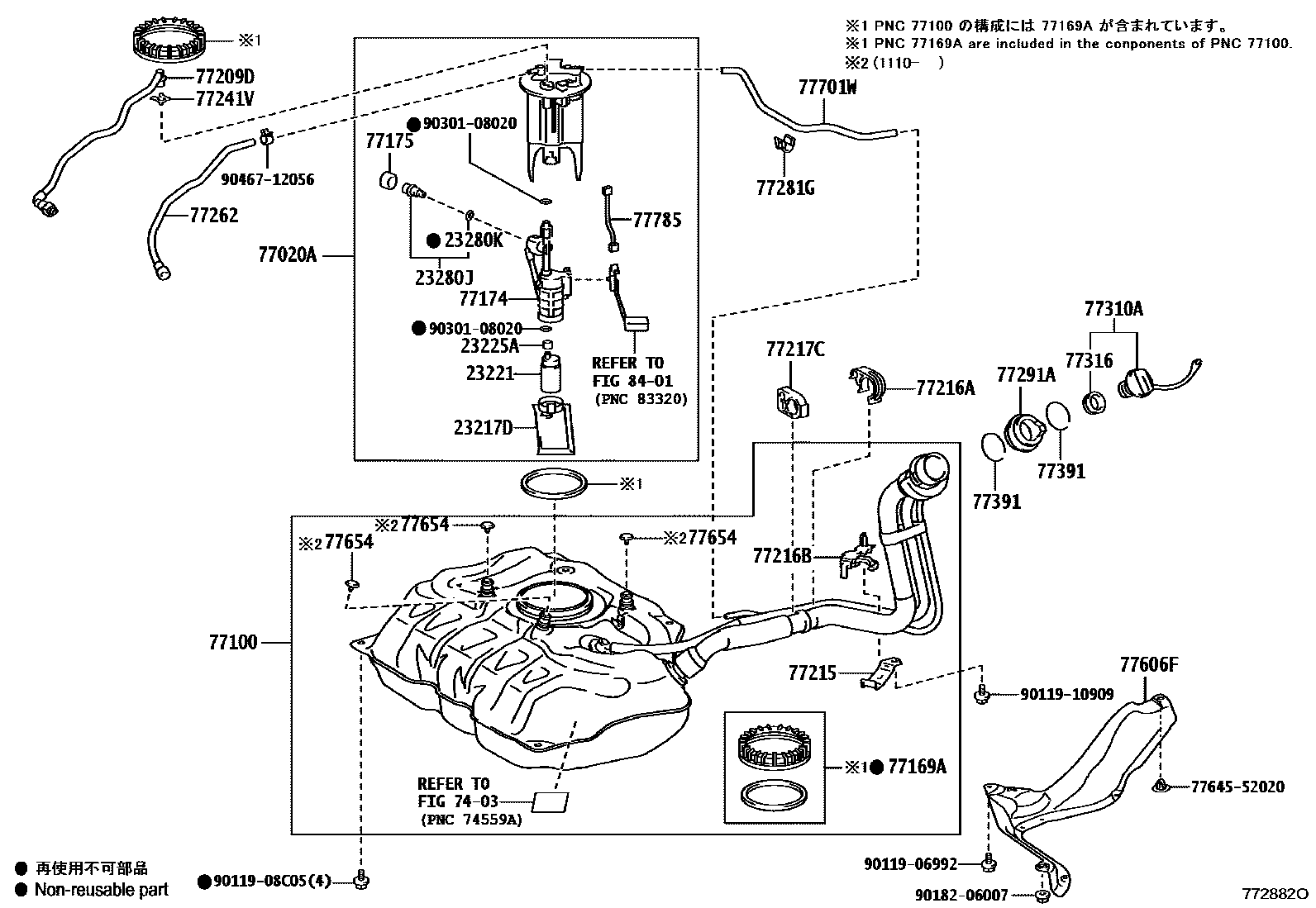

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL RID OPENER

23217DFILTER, FUEL PUMP

main23217-21010i1NZFE..NCP120¥820201011-201405

23221PUMP, FUEL

main23221-47030i1NZFE..NCP120¥37,200201011-201201

sub23221-47031¥23,400

sub77785-52091¥870

main23221-47031i1NZFE..NCP120¥23,400201201-201405

23225ASPACER, FUEL PUMP

main23225-21020i1NZFE..NCP120¥120201011-201405

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-22010i1NZFE..NCP120¥6,000201011-201405

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i1NZFE..NCP120201011-201405

7403

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-52420iNCP120¥73,200201011-201204

sub77020-52421¥46,200

main77020-52421iNCP120¥46,200201205-201405

77100TANK ASSY, FUEL

main77001-52370iNCP120¥36,000201011-201405

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iNCP120¥1,470201011-201405

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52040iNCP120¥570201011-201405

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52040iNCP120¥570201011-201405

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52170iNCP120¥1,210201011-201405

sub77209-52171¥1,360

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77219-52060iNCP120¥490201011-201607

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12180iNCP120¥190201204-201405

main77216-52180iNCP120¥320201011-201203

sub77216-12180¥190

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-52160iNCP120¥320201011-201607

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-52080iNCP120¥340201011-201405

77241VCLIP, TUBE JOINT

main77241-33011iNCP120¥80201011-201405

77262TUBE, FUEL EMISSION, NO.2

main77028-52020iNCP120¥750201011-201405

77281GCLAMP, FUEL HOSE

main77281-52040iNCP120¥220201011-201405

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52010iNCP120¥1,020201011-201405

77310ACAP ASSY, FUEL TANK

main77300-52030iNCP120¥1,560201011-201405

77316GASKET, FUEL TANK CAP

main77316-52040iNCP120¥230201011-201405

77391RING, FUEL INLET BOX

main77391-12020iNCP120¥180201011-201405

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-52060iNCP120¥3,240201011-201405

77654CUSHION, FUEL TANK, NO.2

main77652-52070iNCP120¥40201110-201405

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-12020iNCP120¥1,070201207-201405

main77701-52020iNCP120¥1,710201011-201207

sub77701-12020¥1,070

77785HARNESS, FUEL PUMP

main77785-52090iNCP120¥1,350201011-201201

main77785-52091iNCP120¥870201201-201405

8401

7764552020PACKING, FUEL TANK BRACKET UPPER, B

main77645-52020¥100

9011906992

main90119-06992¥60

9011908C05

main90119-08C05¥100

9011910909

main90119-10909¥100

9018206007

main90182-06007¥60

9030108020

main90301-08020¥250

9046712056

main90467-12056¥70

35 parts on this diagram · 3 diagrams in section
