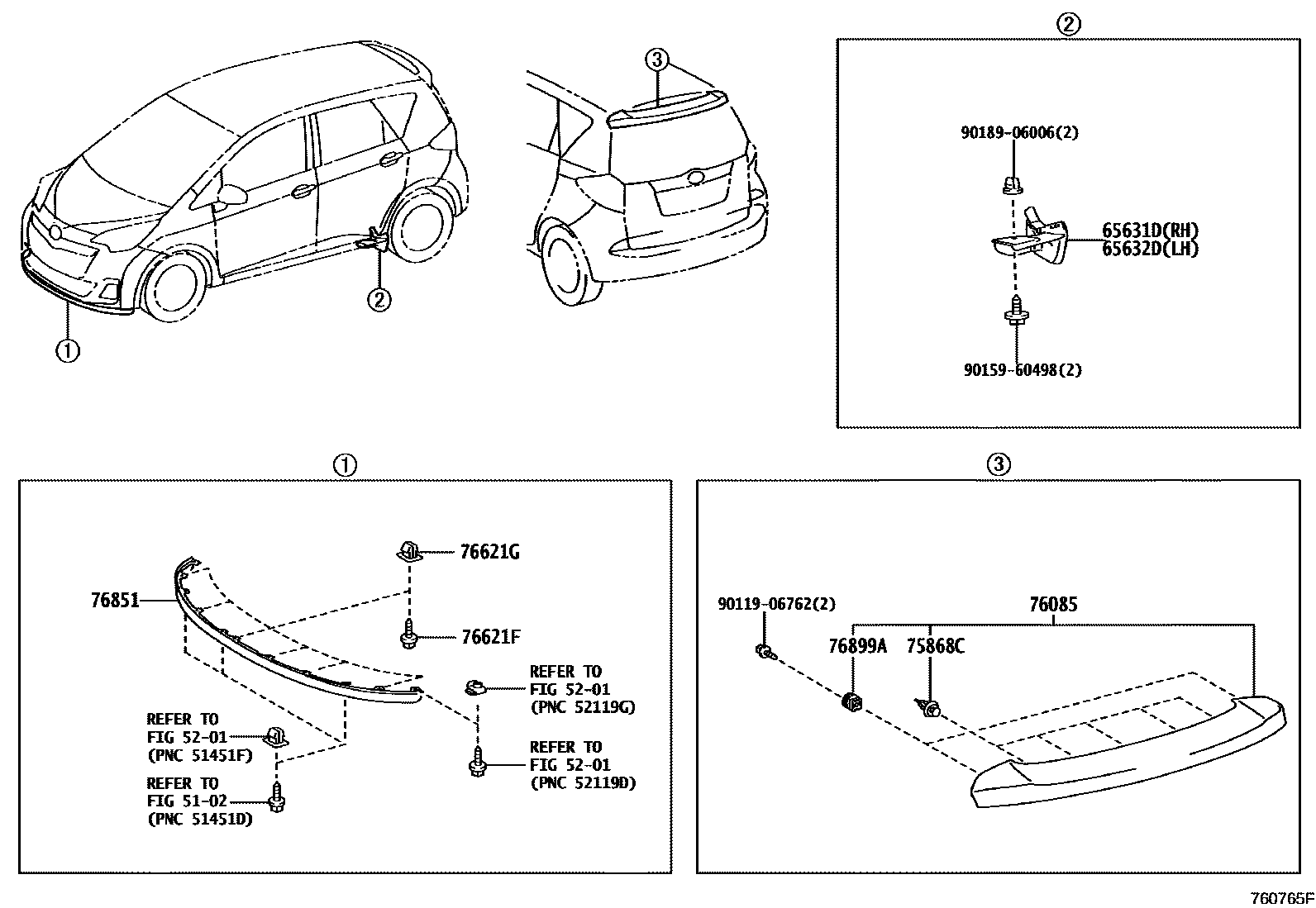

MUDGUARD & SPOILER

0001 1 0002 1

5102

5201

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52060iNCP120¥3,000201011-201405

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52070iNCP120¥3,000201011-201405

75868CCLIP, REAR SPOILER, NO.2

main75868-60020iNCP120¥210201011-201405

main90467-09239iNCP120¥90201107-201208

76085SPOILER SUB-ASSY, REAR

main76085-52170-A1iNCP120201011-201106

WHITE PEARL CS.,070

sub76085-52171¥27,400

main76085-52170-B0iNCP120201011-201106

SILVER ME.,1F7

sub76085-52171¥27,400

main76085-52170-B1iNCP120201011-201106

GRAY ME.,1G3

sub76085-52171¥27,400

main76085-52170-C0iNCP120201011-201106

BLACK MC.,209

sub76085-52171¥27,400

main76085-52170-D0iNCP120201011-201106

SUPER RED 5,3P0

sub76085-52171¥27,400

main76085-52170-E0iNCP120201011-201106

DK. BROWN M.M.,4U3

sub76085-52171¥27,400

main76085-52170-J0iNCP120201011-201106

LT.BLUE M.M.,8S7

sub76085-52171¥27,400

main76085-52170-J1iNCP120201011-201106

SATIN BLUE M.M.,8V9

sub76085-52171¥27,400

main76085-52170-K0iNCP120201011-201106

DEEP AMETHYST M.M.,9AH

sub76085-52171¥27,400

main76085-52171-A1iNCP120201107-201208

WHITE PEARL CS.,070

sub76085-52922¥12,500

main76085-52171-B0iNCP120201107-201208

SILVER ME.,1F7

sub76085-52922¥12,500

main76085-52171-B1iNCP120201107-201208

GRAY ME.,1G3

sub76085-52922¥12,500

main76085-52171-C0iNCP120201107-201208

BLACK MC.,209

sub76085-52922¥12,500

main76085-52171-E0iNCP120201107-201111

DK.BROWN M.M.,4U3

sub76085-52922¥12,500

main76085-52171-H0iNCP120201111-201208

TURQUOISE ME.,777

sub76085-52922¥12,500

main76085-52171-J0iNCP120201107-201208

LT.BLUE M.M.,8S7

sub76085-52922¥12,500

main76085-52171-J1iNCP120201107-201208

SATIN BLUE M.M.,8V9

sub76085-52922¥12,500

main76085-52171-K0iNCP120201107-201208

DEEP AMETHYST M.M.,9AH

sub76085-52922¥12,500

main76085-52172-A1iNCP120201208-201607

WHITE PEARL CS.,070

sub76085-52925¥13,800

main76085-52172-B0iNCP120201208-201607

SILVER ME.,1F7

sub76085-52925¥13,800

main76085-52172-B1iNCP120201208-201607

GRAY ME.,1G3

sub76085-52925¥13,800

main76085-52172-C0iNCP120201208-201607

BLACK MC.,209

sub76085-52925¥13,800

main76085-52172-E1iNCP120201405-201607

BRONZE M.M.,4T3

sub76085-52925¥13,800

main76085-52172-H0iNCP120201208-201405

TURQUOISE ME.,777

sub76085-52925¥13,800

main76085-52172-J0iNCP120201208-201607

LT.BLUE M.M.,8S7

sub76085-52925¥13,800

main76085-52172-J1iNCP120201208-201607

SATIN BLUE M.M.,8V9

sub76085-52925¥13,800

main76085-52172-K0iNCP120201208-201607

DEEP AMETHYST M.M.,9AH

sub76085-52925¥13,800

76621FSCREW, NO.1

main90159-60431iNCP120¥70201011-201607

76621GGROMMET, NO.1

main90189-06193iNCP120¥80201011-201108

main90189-06237iNCP120¥100201109-201607

76851COVER, FRONT SPOILER

main76851-52200iNCP120¥8,900201011-201607

76899ANUT, REAR SPOILER

main76899-60010iNCP120¥820201011-201405

9011906762

main90119-06762¥70

9015960498

main90159-60498¥70

9018906006

main90189-06006¥100

13 parts on this diagram · 2 diagrams in section
