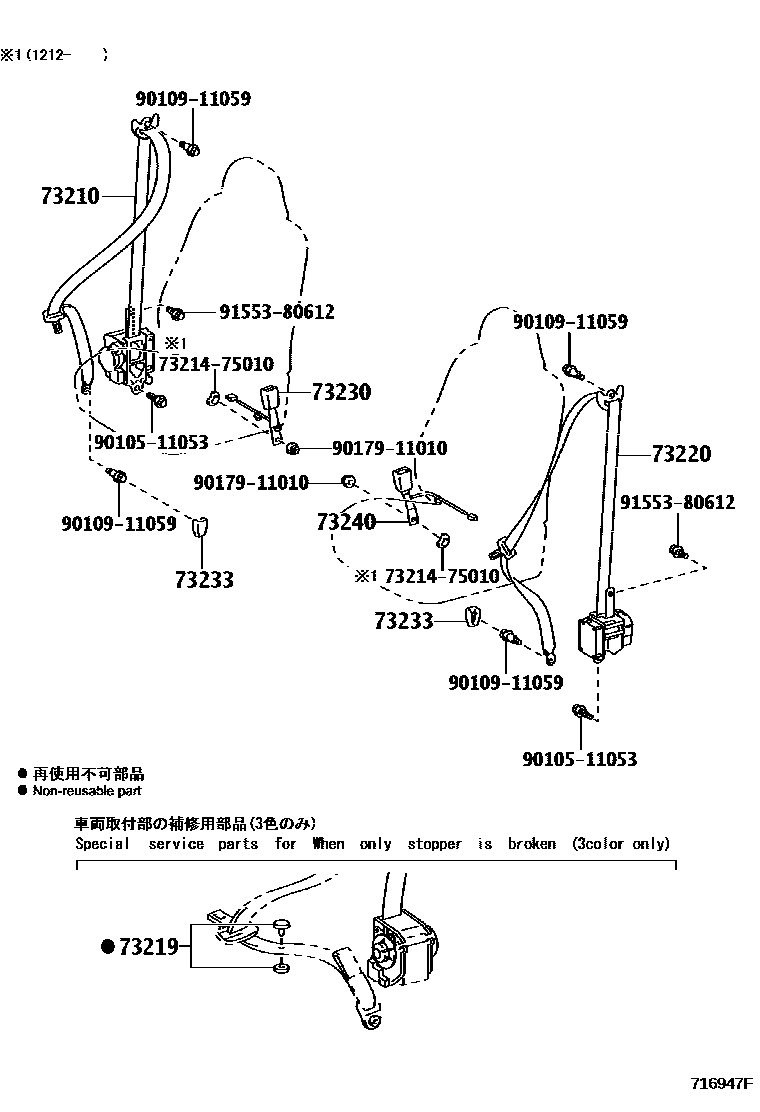

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1REAR SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52830-C0iNCP120201011-201302

BLACK,TRIM2#

main73210-52831-C0iNCP120201405-201607

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33030iNCP120201405

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52740-C1iNCP120201011-201405

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52550-C0iNCP120..LUNA201011-201111

BLACK,TRIM2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-C0×2iNCP120201011-201405

BLACK,TRIM2#

sub73233-0C010

main73233-60020-C0×2iNCP120201503-201607

BLACK,TRIM2#

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52680-C0iNCP120201111-201405

BLACK,TRIM2#

main73230-52830-C0iNCP120..LUNA201011-201111

BLACK,TRIM2#,4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511053

main90105-11053

9010911059

main90109-11059

9017911010

main90179-11010

9155380612

main91553-80612

11 parts on this diagram · 3 diagrams in section
