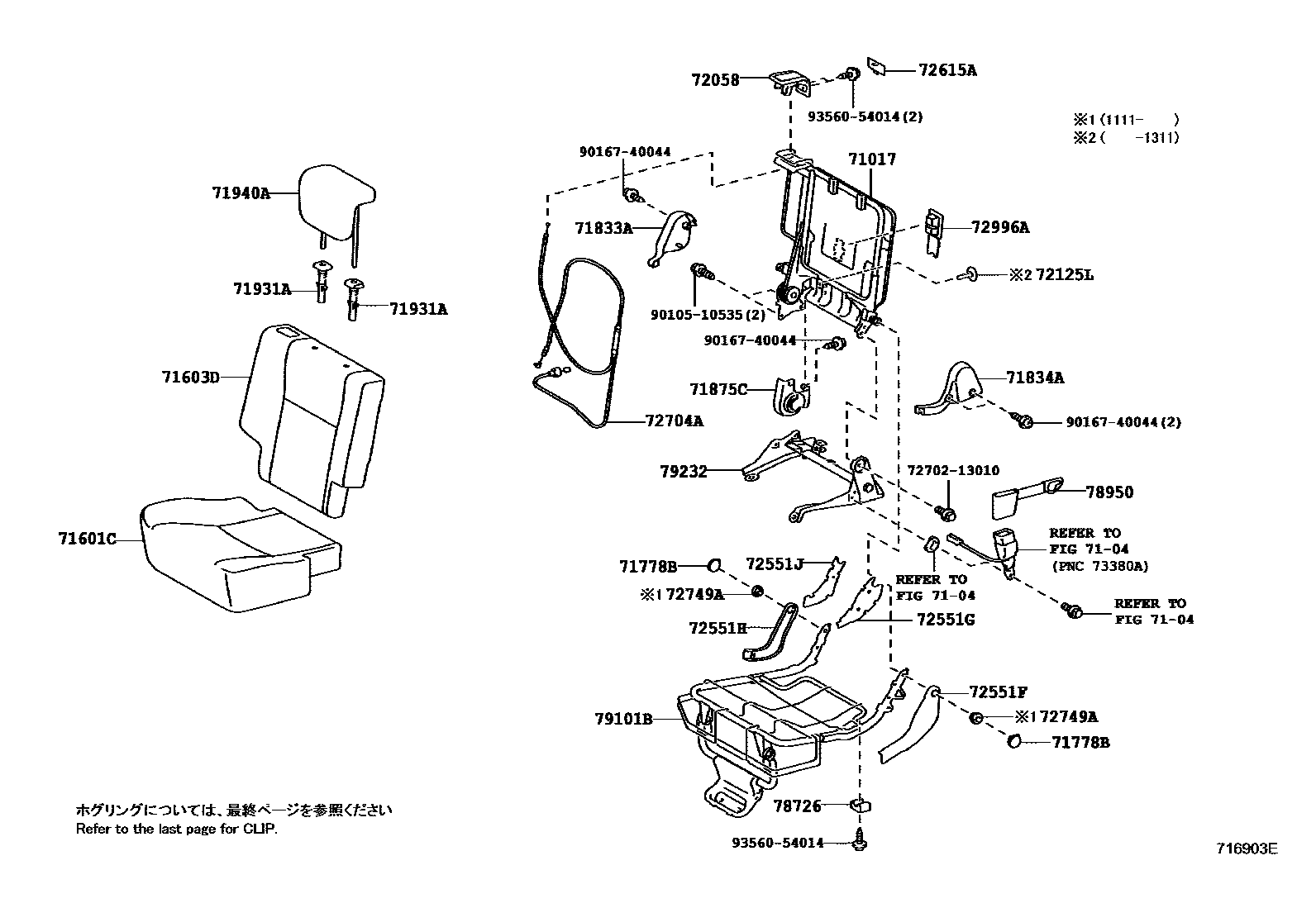

REAR SEAT & SEAT TRACK

0001 1RH 0002 1LH 0003 1LH 0004 1FITTING PARTS 0005 1CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52600iNCP120201405

7104

71601CPAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH

main71601-52N00-C2iNCP120..TERRA201011-201205

BLACK,TRIM2#

main71601-52N00-C4iNCP120..TERRA201205-201405

BLACK,TRIM2#

main71601-52N20-C3iNCP120..LUNA201011-201205

BLACK,TRIM2#

main71601-52N20-C5iNCP120..LUNA201205-201405

BLACK,TRIM2#

main71601-52N21-C6iNCP120..LUNA201405-201607

BLACK,TRIM2#

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52S70-C3iNCP120..TERRA201011-201111

BLACK,TRIM2#

main71603-52S71-C5iNCP120..TERRA201111-201205

BLACK,TRIM2#

main71603-52S71-C6iNCP120..TERRA201205-201208

BLACK,TRIM2#

main71603-52S71-C7iNCP120..TERRA201405-201607

BLACK,TRIM2#

main71603-52S90-C1iNCP120..LUNA201011-201111

BLACK,TRIM2#

main71603-52S91-C3iNCP120..LUNA201111-201205

BLACK,TRIM2#

main71603-52S91-C4iNCP120..LUNA201205-201208

BLACK,TRIM2#

main71603-52S91-C5iNCP120..LUNA201208-201405

BLACK,TRIM2#

main71603-52S91-C6iNCP120..LUNA201405-201607

BLACK,TRIM2#

71778BCOVER, REAR SEAT SIDE HINGE MALE, RH

main71778-52020-C0×4iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-52120-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71879-52160-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52121-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-C0×2iNCP120..TERRA201011-201111

W(LOCK),BLACK,TRIM2#

sub71930-02370

main71931-47010-C0×2iNCP120..TERRA201011-201111

W/O(LOCK),BLACK,TRIM2#

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-52A40-C1×2iNCP120..TERRA201011-201405

BLACK,TRIM2#

main71940-52A41-B2×2iNCP120201405-201607

DK.GRAY,TRIM2#

main71940-52A60-B1×2iNCP120..LUNA201011-201405

DK.GRAY,TRIM2#

72058LEVER SUB-ASSY, REAR SEAT LOCK CONTROL

main72057-52040-C0×2iNCP120201011-201405

BLACK,TRIM2#

72125LRETAINER, REAR SEATBACK PAD

main72125-20030×3iNCP120201011-201311

72551FCOVER, RECLINING LINK, RH NO.1

main72551-52050-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

72551GCOVER, RECLINING LINK, RH NO.2

main72551-52060-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

72551HCOVER, RECLINING LINK, RH NO.3

main72551-52070-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

72551JCOVER, RECLINING LINK, RH NO.4

main72551-52080-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-52100-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-52200iNCP120201011-201405

72749ASPACER, REAR SEAT RECLINING

main72749-48010×4iNCP120201111-201405

72996ACOVER, REAR SEATBACK

main72996-12320-C0×2iNCP120..TERRA201011-201405

BLACK,TRIM2#,4#

78726CUSHION, SUB SEAT CUSHION FRAME

main78726-95J01iNCP120201011-201111

78950BAND ASSY, FOLD SEAT STOPPER, NO.1

main78950-52040-C0iNCP120201011-201405

BLACK,TRIM2#

79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

main79101-52030iNCP120201011-201405

79232LEG, REAR NO.2 SEAT, RH

main71308-52060iNCP120201011-201405

7270213010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-13010

9010510535

main90105-10535

9016740044

main90167-40044

9356054014

main93560-54014

28 parts on this diagram · 5 diagrams in section
