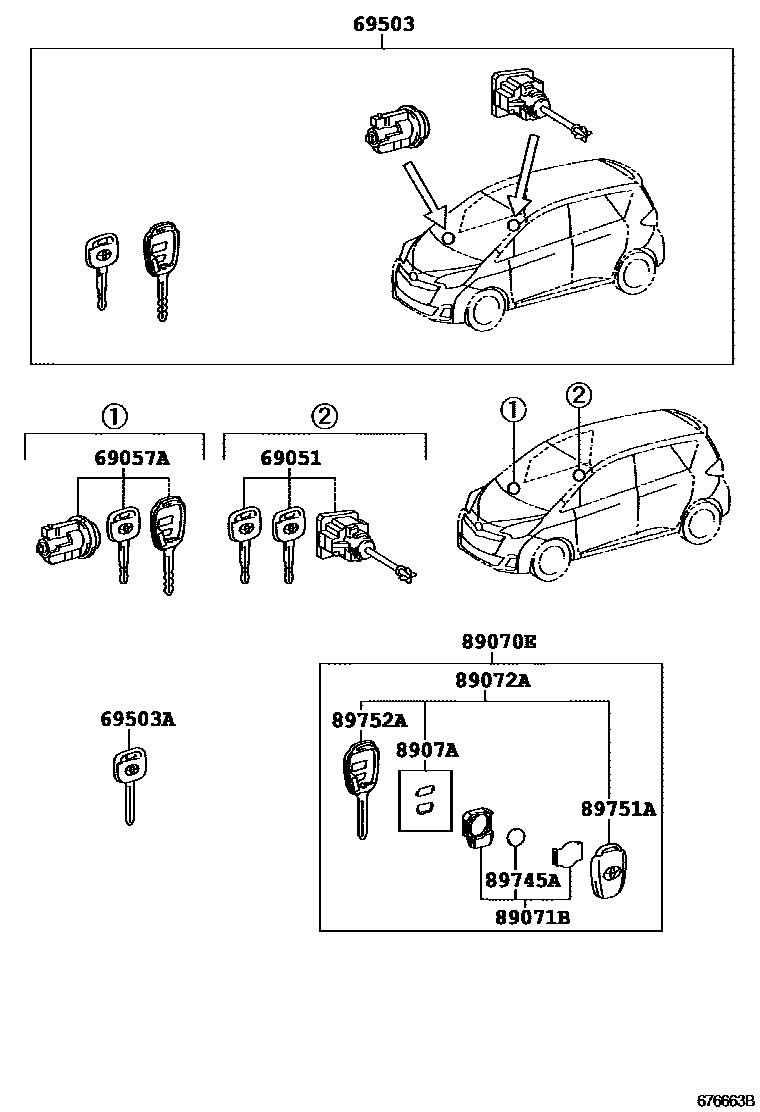

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-52490iNCP120..TERRA201405

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-52B20iNCP120..TERRA201011-201405

69503CYLINDER SET, LOCK

main69005-52J30iNCP120..LUNA201011-201405

main69005-52J90iNCP120..TERRA201405

69503AKEY, BLANK

main69515-52120iNCP120..LUNA201011-201405

MASTER KEY,W(*68)

main90999-00199iNCP120..TERRA201405

MASTER KEY,W(*68)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-52C70iNCP120..TERRA201405

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52250iNCP120..TERRA201405

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-52540iNCP120..TERRA201011-201405

8907ASWITCH SET, TRANSMITTER

main8907A-52010iNCP120..TERRA201011-201405

89745ABATTERY, TRANSMITTER

main89745-52020iNCP120..LUNA201011-201405

CR1632

main89745-71010iNCP120..TERRA201405

CR2016

89751ACOVER, TRANSMITTER HOUSING

main89751-52130iNCP120..TERRA201011-201405

89752ACASE, TRANSMITTER HOUSING

main89752-52070iNCP120..TERRA201011-201405

11 parts on this diagram · 2 diagrams in section
