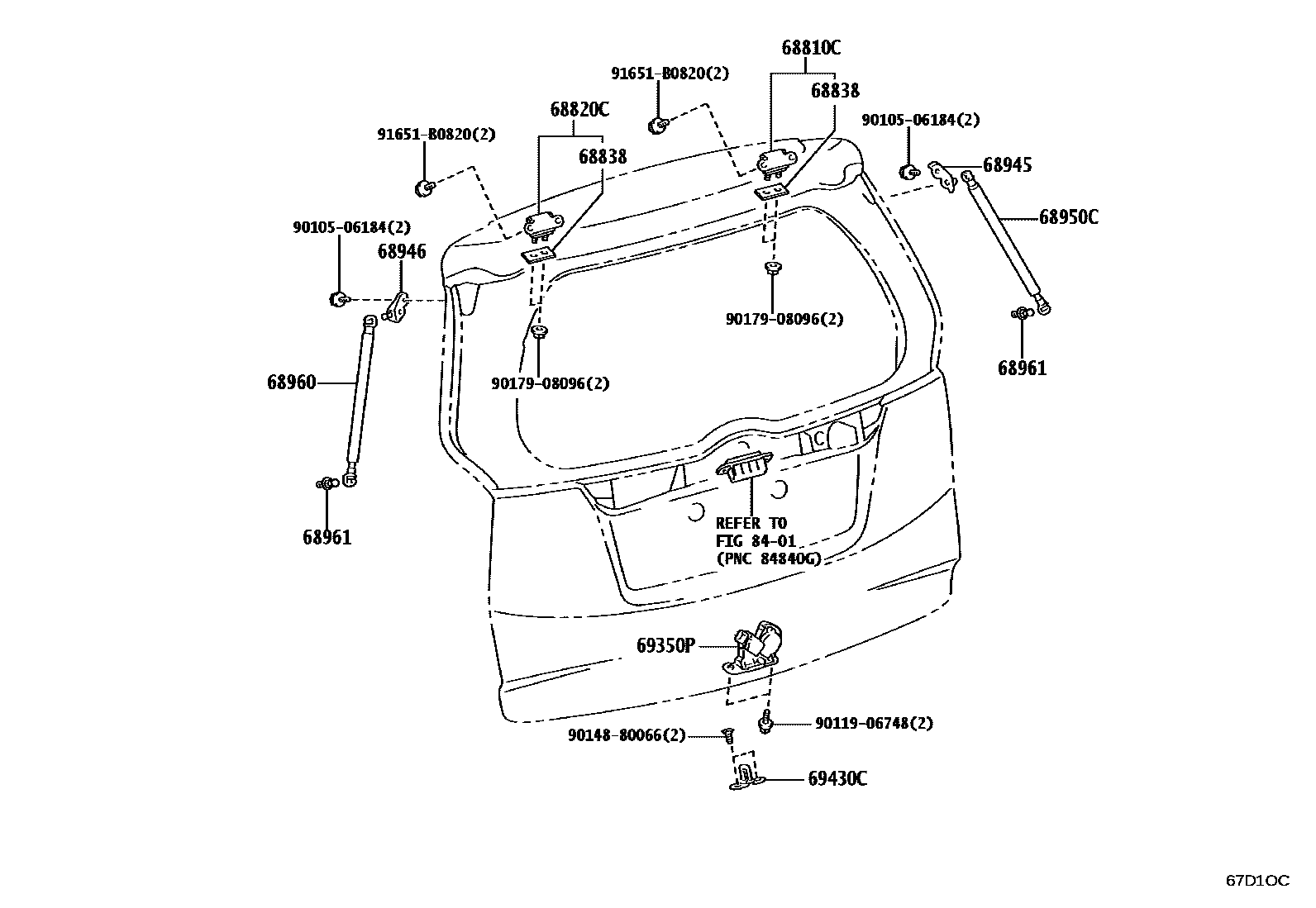

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-52080iNCP120201405

68820CHINGE ASSY, BACK DOOR, LH

main68810-52080iNCP120201011-201405

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010×2iNCP120201405

T=2.0

main68838-52030×2iNCP120201011-201405

T=1.0

main68838-52060×2iNCP120201011-201405

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52090iNCP120201011-201405

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52050iNCP120201011-201405

68950CSTAY ASSY, BACK DOOR, RH

main68950-52370supersedes 68950-52301iNCP120201011-201405

LICENSE PLATE BRACKET-FOR LIGHTED LICENSE PLATE(DOP)

68960STAY ASSY, BACK DOOR, LH

main68960-52330supersedes 68960-52271iNCP120201011-201405

LICENSE PLATE BRACKET-FOR LIGHTED LICENSE PLATE(DOP)

68961BOLT, BACK DOOR STAY

main68961-20140×2iNCP120201011-201405

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52350iNCP120201011-201405

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52040iNCP120201011-201405

8401

9010506184

main90105-06184

9011906748

main90119-06748

9014880066

main90148-80066

9017908096

main90179-08096

91651B0820

main91651-B0820

16 parts on this diagram · 1 diagram in section
