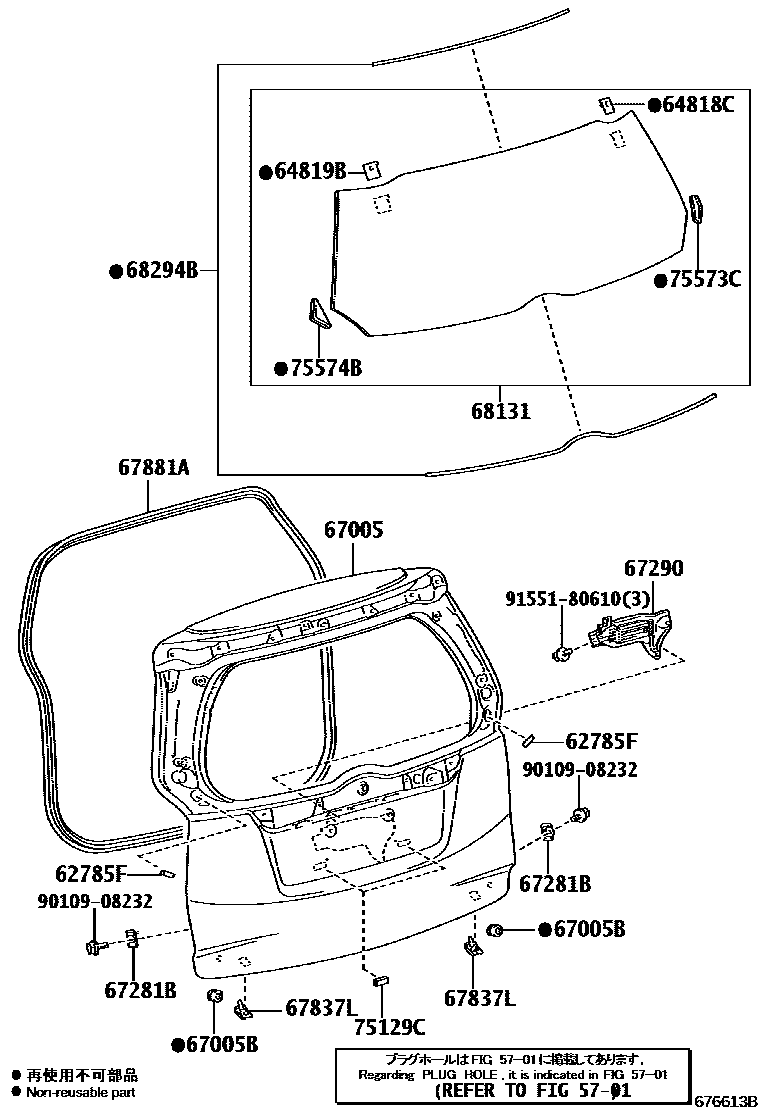

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-12050iNCP120201011-201405

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-52070iNCP120201011-201405

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-52060iNCP120201011-201405

67005PANEL SUB-ASSY, BACK DOOR

main67005-52810iNCP120201011-201208

main67005-52811iNCP120201108-201109

sub67005-52810

main67005-52813iNCP120201208-201405

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iNCP120201011-201405

67281BSTOPPER, BACK DOOR, LOWER

main67281-52010iNCP120201011-201405

67290DAMPER ASSY, BACK DOOR

main67290-52010iNCP120201011-201405

67837LSEAL, DOOR DUST PROOF

main67837-52020iNCP120201011-201405

67881AWEATHERSTRIP, BACK DOOR

main67881-52160iNCP120201011-201405

68131GLASS, BACK DOOR

main68105-52550iNCP120201011-201405

*UVCEHT,T=3.1,GREEN

68294BDAM, BACK DOOR GLASS ADHESIVE

main56117-50140iNCP120201011-201405

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iNCP120201011-201012

main75129-30010iNCP120201101-201405

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-52190iNCP120201011-201405

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-52080iNCP120201011-201405

9010908232

main90109-08232

9155180610

main91551-80610

17 parts on this diagram · 2 diagrams in section
