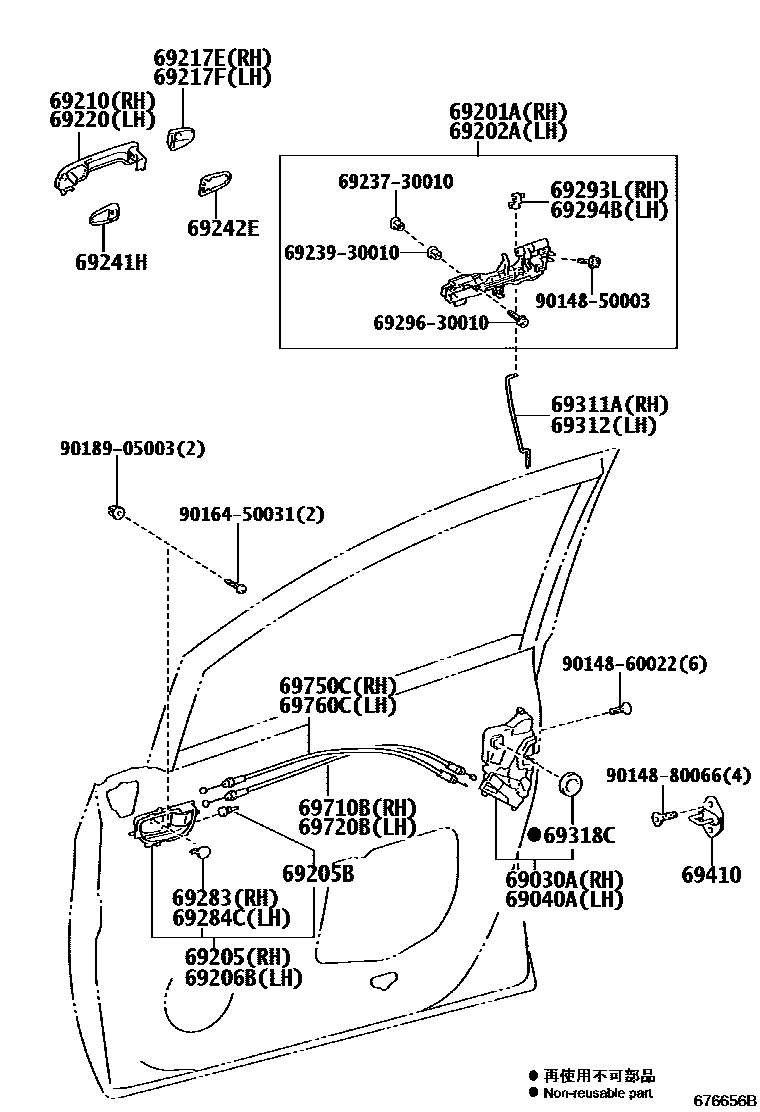

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-52290iNCP120201011-201405

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-47050iNCP120..TERRA201405

main69040-47090iNCP120..LUNA201405

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-52130iNCP120201011-201405

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-52070iNCP120201011-201405

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52170-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#

main69205-52180-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027×2iNCP120201011-201405

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52170-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#

main69206-52180-C0iNCP120..TERRA201405-201607

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-52100-A1iNCP120..LUNA201405-201607

WHITE PEARL CS.,070

main69210-52100-B0iNCP120..LUNA201405-201607

SILVER ME.,1F7

main69210-52100-B1iNCP120..LUNA201011-201405

GRAY ME.,1G3

main69210-52100-C0iNCP120..LUNA201011-201405

BLACK MC.,209

main69210-52100-D0iNCP120..LUNA201011-201405

SUPER RED 5,3P0

main69210-52100-E0iNCP120..LUNA201011-201111

DK. BROWN M.M.,4U3

main69210-52100-E5iNCP120..LUNA201405-201607

BRONZE M.M.,4T3

main69210-52100-H2iNCP120..LUNA201111-201405

TURQUOISE ME.,777

main69210-52100-J0iNCP120..LUNA201405-201607

LT.BLUE M.M.,8S7

main69210-52100-J1iNCP120..LUNA201405-201607

SATIN BLUE M.M.,8V9

main69210-52100-K0iNCP120..LUNA201405-201607

DEEP AMETHYST M.M.,9AH

main69211-52100-A1iNCP120..TERRA201011-201405

WHITE PEARL CS.,070

main69211-52100-B0iNCP120..TERRA201011-201405

SILVER ME.,1F7

main69211-52100-B1iNCP120..TERRA201011-201405

GRAY ME.,1G3

main69211-52100-C0iNCP120..TERRA201011-201405

BLACK MC.,209

main69211-52100-D0iNCP120..TERRA201011-201405

SUPER RED 5,3P0

main69211-52100-E0iNCP120..TERRA201011-201111

DK. BROWN M.M.,4U3

main69211-52100-E4iNCP120..TERRA201405-201607

BRONZE M.M.,4T3

main69211-52100-H2iNCP120..TERRA201111-201405

TURQUOISE ME.,777

main69211-52100-J0iNCP120..TERRA201405-201607

LT.BLUE M.M.,8S7

main69211-52100-J1iNCP120..TERRA201011-201405

SATIN BLUE M.M.,8V9

main69211-52100-K0iNCP120..TERRA201011-201405

DEEP AMETHYST M.M.,9AH

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-52030-A1iNCP120201011-201405

WHITE PEARL CS.,070

main69217-52030-B0iNCP120201405-201607

SILVER ME.,1F7

main69217-52030-B1iNCP120201405-201607

GRAY ME.,1G3

main69217-52030-C0iNCP120201011-201405

BLACK MC.,209

main69217-52030-D0iNCP120201011-201405

SUPER RED 5,3P0

main69217-52030-E0iNCP120201011-201111

DK. BROWN M.M.,4U3

main69217-52030-E5iNCP120201405-201607

BRONZE M.M.,4T3

main69217-52030-H2iNCP120201111-201405

TURQUOISE ME.,777

main69217-52030-J0iNCP120201011-201405

LT.BLUE M.M.,8S7

main69217-52030-J1iNCP120201405-201607

SATIN BLUE M.M.,8V9

main69217-52030-K0iNCP120201405-201607

DEEP AMETHYST M.M.,9AH

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-52040-A1iNCP120201011-201405

WHITE PEARL CS.,070

main69217-52040-B0iNCP120201011-201405

SILVER ME.,1F7

main69217-52040-B1iNCP120201405-201607

GRAY ME.,1G3

main69217-52040-C0iNCP120201011-201405

BLACK MC.,209

main69217-52040-D0iNCP120201011-201405

SUPER RED 5,3P0

main69217-52040-E0iNCP120201011-201111

DK. BROWN M.M.,4U3

main69217-52040-E5iNCP120201405-201607

BRONZE M.M.,4T3

main69217-52040-H2iNCP120201111-201405

TURQUOISE ME.,777

main69217-52040-J0iNCP120201405-201607

LT.BLUE M.M.,8S7

main69217-52040-J1iNCP120201011-201405

SATIN BLUE M.M.,8V9

main69217-52040-K0iNCP120201011-201405

DEEP AMETHYST M.M.,9AH

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-52100-A1iNCP120..LUNA201405-201607

WHITE PEARL CS.,070

main69210-52100-B0iNCP120..LUNA201405-201607

SILVER ME.,1F7

main69210-52100-B1iNCP120..LUNA201011-201405

GRAY ME.,1G3

main69210-52100-C0iNCP120..LUNA201405-201607

BLACK MC.,209

main69210-52100-D0iNCP120..LUNA201011-201405

SUPER RED 5,3P0

main69210-52100-E0iNCP120..LUNA201011-201111

DK. BROWN M.M.,4U3

main69210-52100-E5iNCP120..LUNA201405-201607

BRONZE M.M.,4T3

main69210-52100-H2iNCP120..LUNA201111-201405

TURQUOISE ME.,777

main69210-52100-J0iNCP120..LUNA201405-201607

LT.BLUE M.M.,8S7

main69210-52100-J1iNCP120..LUNA201405-201607

SATIN BLUE M.M.,8V9

main69210-52100-K0iNCP120..LUNA201405-201607

DEEP AMETHYST M.M.,9AH

main69211-52100-A1iNCP120..TERRA201011-201405

WHITE PEARL CS.,070

main69211-52100-B0iNCP120..TERRA201405-201607

SILVER ME.,1F7

main69211-52100-B1iNCP120..TERRA201405-201607

GRAY ME.,1G3

main69211-52100-C0iNCP120..TERRA201011-201405

BLACK MC.,209

main69211-52100-D0iNCP120..TERRA201011-201405

SUPER RED 5,3P0

main69211-52100-E0iNCP120..TERRA201011-201111

DK. BROWN M.M.,4U3

main69211-52100-E4iNCP120..TERRA201405-201607

BRONZE M.M.,4T3

main69211-52100-H2iNCP120..TERRA201111-201405

TURQUOISE ME.,777

main69211-52100-J0iNCP120..TERRA201011-201405

LT.BLUE M.M.,8S7

main69211-52100-J1iNCP120..TERRA201405-201607

SATIN BLUE M.M.,8V9

main69211-52100-K0iNCP120..TERRA201405-201607

DEEP AMETHYST M.M.,9AH

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-52020×2iNCP120201011-201405

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-52030×2iNCP120201011-201405

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-52010-C0iNCP120201405-201607

BLACK,TRIM2#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-52010-C0iNCP120201011-201405

BLACK,TRIM2#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iNCP120201011-201405

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iNCP120201011-201405

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-52170iNCP120201011-201405

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-52180iNCP120201011-201405

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-47010×2iNCP120201011-201405

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010×2iNCP120201011-201405

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-52170iNCP120201011-201405

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-52170iNCP120201011-201405

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-52100iNCP120201011-201405

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-52100iNCP120201011-201405

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6923930010PIN, BACK DOOR OUTSIDE HANDLE

main69239-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

33 parts on this diagram · 1 diagram in section
