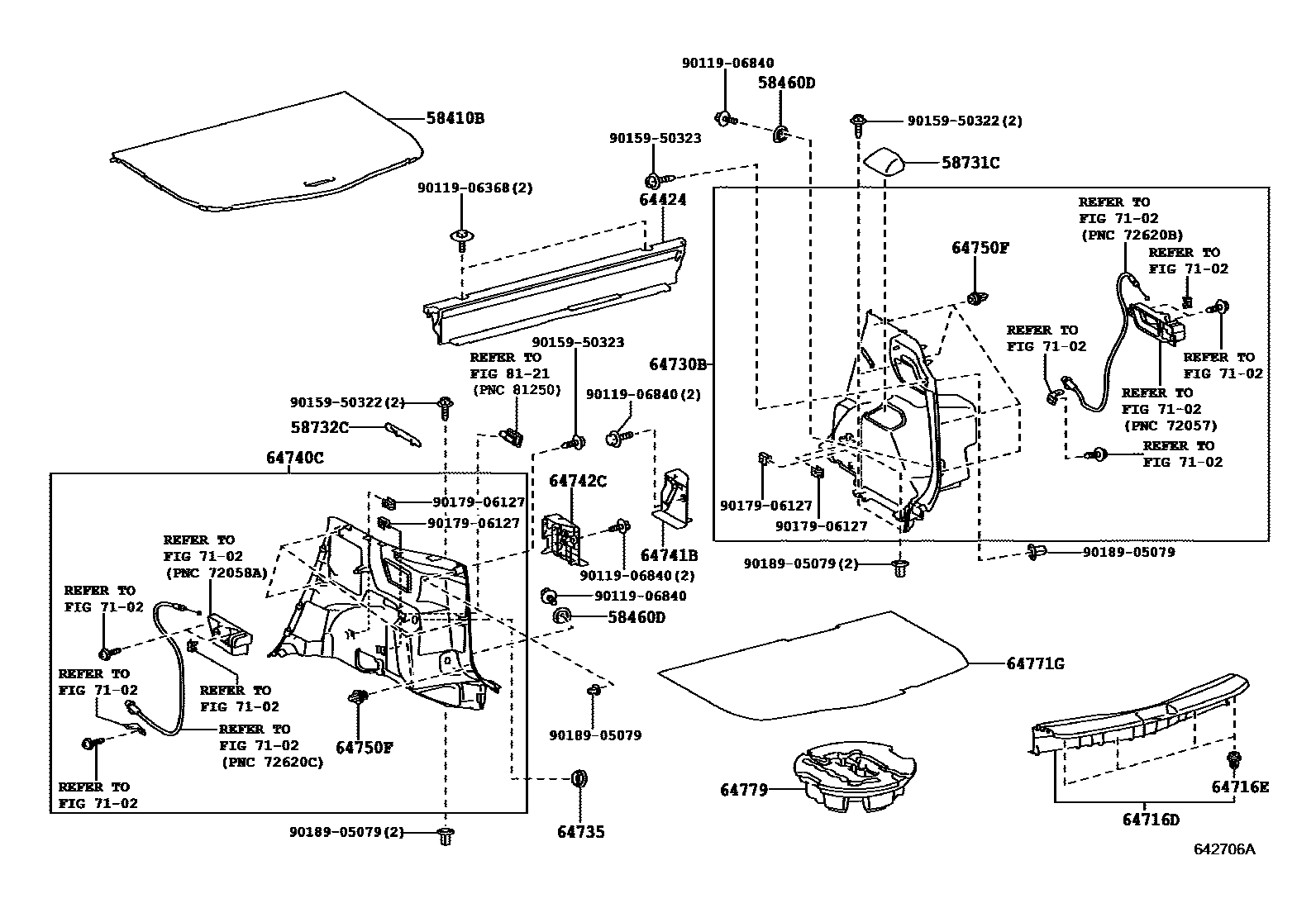

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58410BBOARD ASSY, DECK

main58410-52060-B0iNCP120..LUNA201011-201405

DARK GRAY,TRIM2#,4#

main58410-52070-B0iNCP120..TERRA201011-201405

DARK GRAY,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×2iNCP120201405

58731CCAP, REAR ABSORBER

main58731-52050-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#,4#

58732CCAP, REAR ABSORBER

main58732-52030-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#,4#

64424SEPARATOR, LUGGAGE ROOM BOX

main64424-52020-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#,4#

64716DCOVER, DECK TRIM, REAR

main64716-52160-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#,4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161×4iNCP120201011-201405

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52360-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#,4#

main64730-52360-C1iNCP120201405-201607

BLACK,TRIM2#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-13050-C0iNCP120201011-201405

BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52400-C0iNCP120..LUNA201011-201107

BLACK,TRIM2#,4#

sub81330-05050

main64740-52620-C0iNCP120201107-201405

BLACK,TRIM2#

main64740-52620-C1iNCP120201405-201607

BLACK,TRIM2#

64741BBOX, DECK SIDE TRIM, RH

main64741-52020-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#,4#

64742CBOX, DECK SIDE TRIM, LH

main64742-52010-C0iNCP120..LUNA201011-201405

BLACK,TRIM2#,4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×8iNCP120201011-201205

64771GCOVER, SPARE WHEEL

main64771-52180-B0iNCP120..LUNA201011-201405

DARK GRAY,TRIM2#,4#

64779TRAY, SPARE WHEEL COVER

main64779-46010iNCP120201011-201405

7102

8121

9011906368

main90119-06368

9011906840

main90119-06840

9015950322

main90159-50322

9015950323

main90159-50323

9017906127

main90179-06127

9018905079

main90189-05079

23 parts on this diagram · 3 diagrams in section
