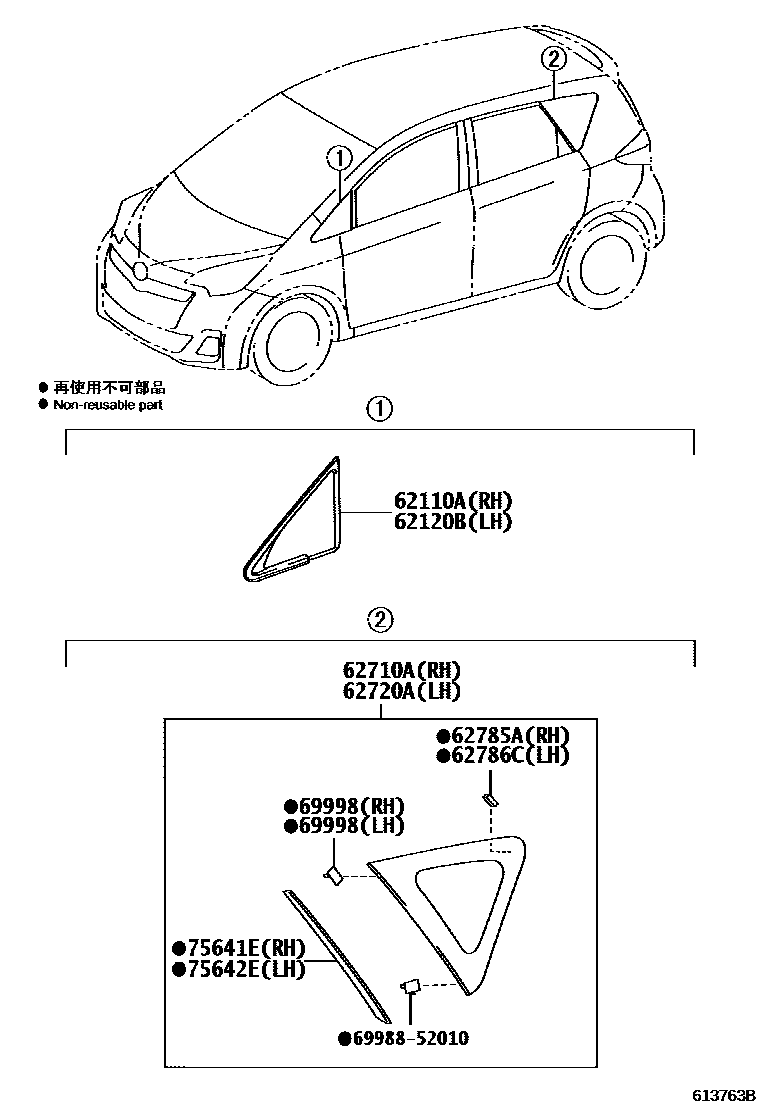

QUARTER WINDOW
62110AWINDOW ASSY, FRONT SIDE FIX, RH
62120BWINDOW ASSY, FRONT SIDE FIX, LH
62710AWINDOW ASSY, QUARTER, RH
*UVCT,T=2.8,GREEN
62720AWINDOW ASSY, QUARTER, LH
*UVCT,T=2.8,GREEN
62785ASPACER, QUARTER WINDOW GLASS
62786CSPACER, QUARTER WINDOW GLASS, LH
69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1
RH
LH
75641EMOULDING, QUARTER WINDOW, RH
75642EMOULDING, QUARTER WINDOW, LH
6998852010SPACER, QUARTER WINDOW GLASS
main69988-52010
10 parts on this diagram · 1 diagram in section
