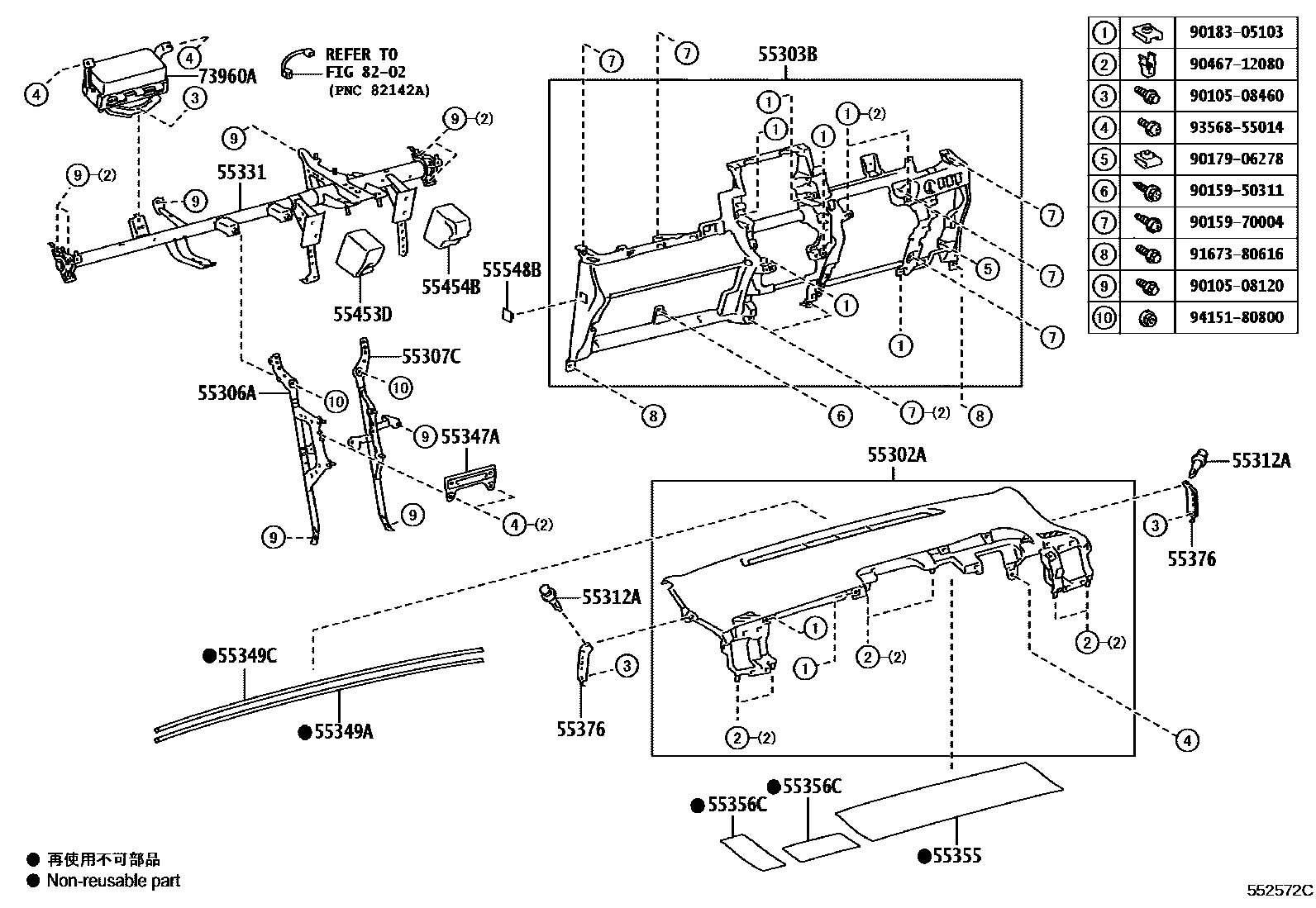

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#
BLACK,TRIM2#,4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55312ACLIP, INSTRUMENT PANEL
sub52161-0K040
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55349ACUSHION, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
55454BPAD, INSTRUMENT PANEL SAFETY, NO.2
55548BCOVER, INSTRUMENT PANEL HOLE
BLACK
8202
9010508120
main90105-08120
9010508460
main90105-08460
9015950311
main90159-50311
9015970004
main90159-70004
9017906278
main90179-06278
9018305103
main90183-05103
9046712080
main90467-12080
9167380616
main91673-80616
9356855014
main93568-55014
9415180800
main94151-80800
27 parts on this diagram · 4 diagrams in section
