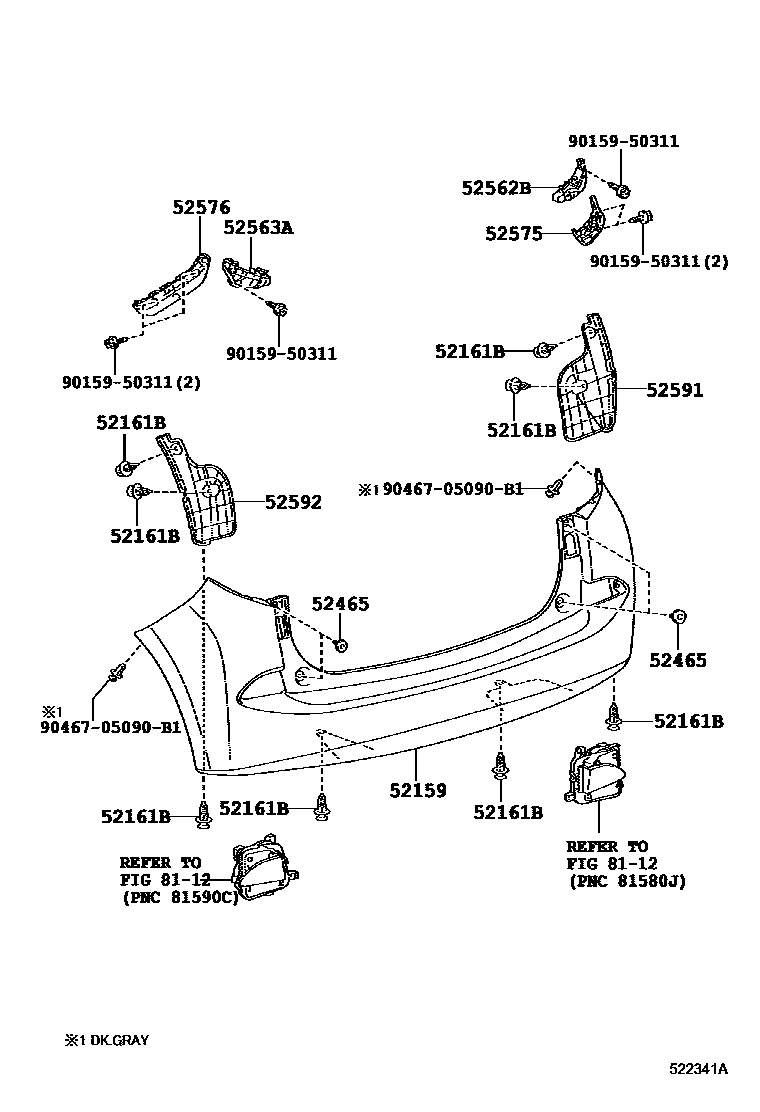

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-52964iNCP120201011-201209

PAINT REQ.

sub52159-52973

main52159-52973iNCP120201209-201607

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iNCP120201011-201405

sub52161-0K040

52465CUSHION, REAR BUMPER, NO.1

main52461-52020iNCP120201011-201405

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-52050iNCP120201011-201405

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-52020iNCP120201011-201405

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52120iNCP120201011-201405

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52100iNCP120201011-201405

52591SEAL, REAR BUMPER SIDE, RH

main52591-52290iNCP120201011-201405

52592SEAL, REAR BUMPER SIDE, LH

main52592-52280iNCP120201011-201405

8112

9015950311

main90159-50311

9046705090B1

main90467-05090B1

12 parts on this diagram · 1 diagram in section
