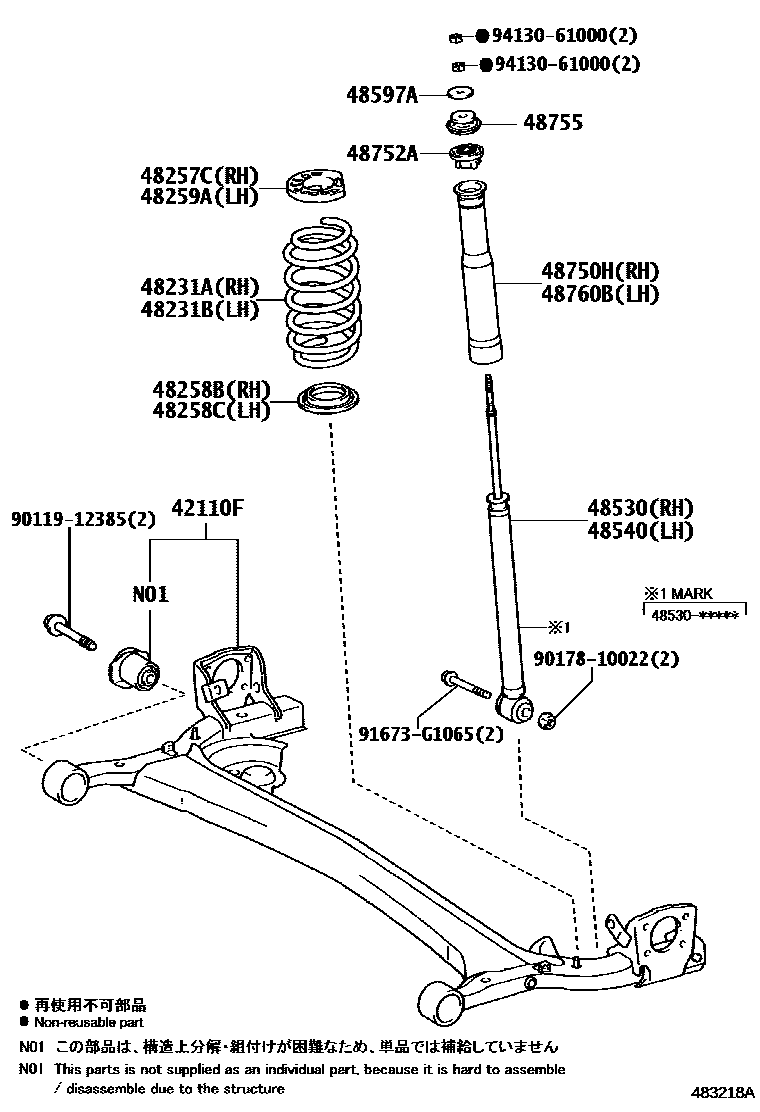

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-52332iNCP120201011-201405

48231ASPRING, COIL, REAR RH

main48231-52E10iNCP120201011-201405

48231BSPRING, COIL, REAR LH

main48231-52E10iNCP120201011-201405

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iNCP120201011-201405

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iNCP120201011-201405

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iNCP120201011-201405

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iNCP120201011-201405

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-52D50iNCP120201011-201405

MARK 48530-52D50

main48530-52L20iNCP120201405

MARK 48530-52L20

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-52D50iNCP120201011-201405

MARK 48530-52D50

main48530-52L20iNCP120201405

MARK 48530-52L20

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320×2iNCP120201011-201405

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-52100iNCP120201011-201402

main48750-52200iNCP120201403-201405

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-52010×2iNCP120201011-201405

48755SUPPORT, REAR SUSPENSION

main48755-52010×2iNCP120201011-201405

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-52100iNCP120201011-201402

main48750-52200iNCP120201403-201405

9011912385

main90119-12385

9017810022

main90178-10022

91673G1065

main91673-G1065

9413061000

main94130-61000

18 parts on this diagram · 1 diagram in section
