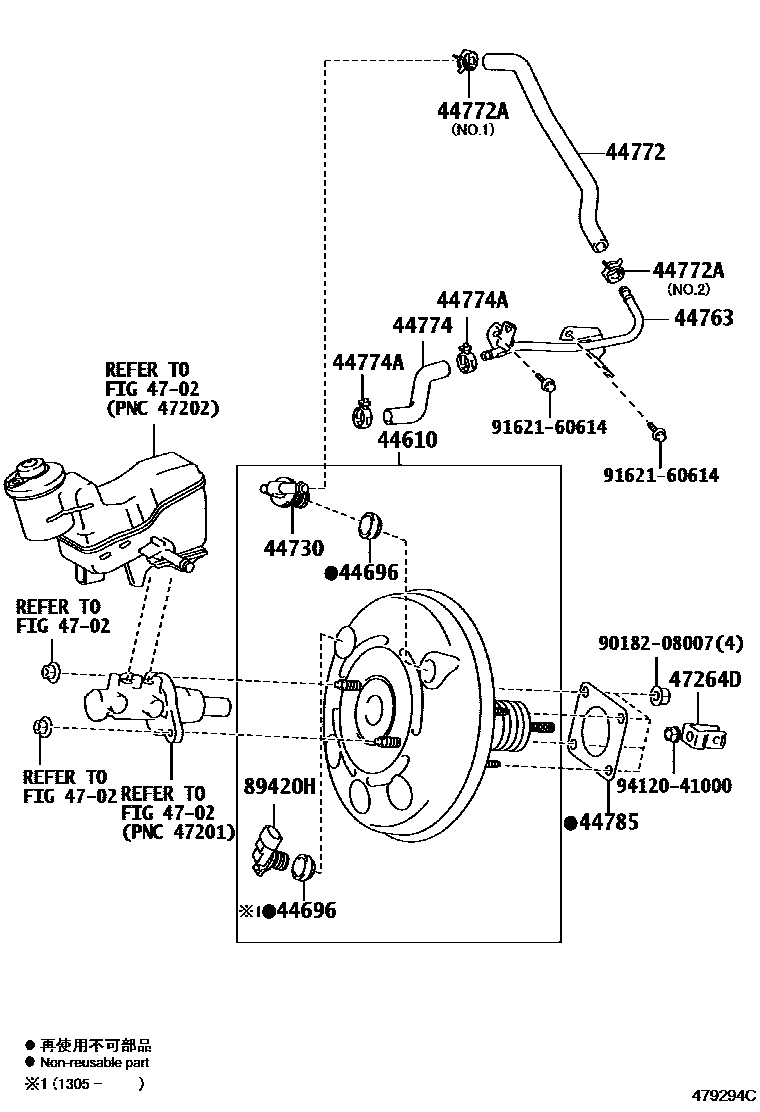

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-52810iNCP120201011-201305

main44610-52F10iNCP120201305-201405

main44610-52F60iNCP120201405

44696GROMMET, CHECK VALVE

main90480-24439iNCP120201011-201305

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iNCP120201011-201405

44763TUBE, BOOSTER VACUUM

main44763-52030iNCP120201011-201405

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52120iNCP120201011-201405

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iNCP120201209-201405

NO.1 & NO.2

main96133-41500iNCP120201011-201209

NO.1

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52070iNCP120201011-201405

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iNCP120201011-201405

main96136-41801×2iNCP120201502-201607

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP120201011-201405

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNCP120201011-201405

89420HSENSOR ASSY, VACUUM

main89421-52020iNCP120201305-201405

9018208007

main90182-08007

9162160614

main91621-60614

9412041000

main94120-41000

15 parts on this diagram · 1 diagram in section
