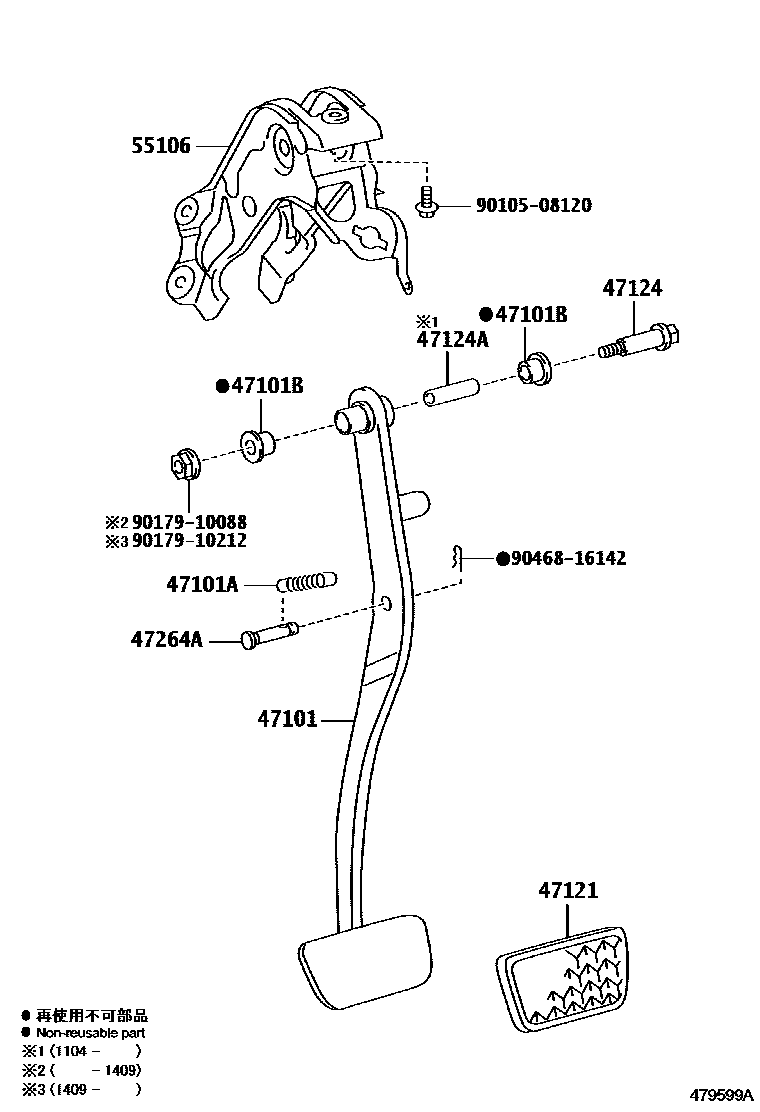

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52240iNCP120201011-201112

sub47101-52241

main47101-52241iNCP120201201-201405

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP120201011-201205

main90506-14088iNCP120201205-201405

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP120201011-201405

47121PAD, BRAKE PEDAL

main47121-52010iNCP120201011-201408

main47121-52020iNCP120201409

47124SHAFT, BRAKE PEDAL

main90105-10444iNCP120201104-201409

main90109-10167iNCP120201011-201104

main91552-81055iNCP120201409

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNCP120201104-201405

47264APIN(FOR PUSH ROD)

main90249-08051iNCP120201011-201405

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52130iNCP120201011-201104

sub55106-52H01

main55106-52131iNCP120201104-201405

9010508120

main90105-08120

9017910088

main90179-10088

9017910212

main90179-10212

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
