STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-52100iNCP120..TERRA¥10,500201011-201607

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-52170iNCP120..LUNA¥13,500201011-201607

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP120¥3,010201011-201110

sub45025-52170¥2,750

main45025-52170iNCP120¥2,750201111-201405

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52050iNCP120¥4,840201011-201405

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52131iNCP120..TERRA¥66,600201105-201206

sub4520A-52132¥46,200

main4520A-52132iNCP120..TERRA¥46,200201207-201405

main4520A-52141iNCP120..LUNA¥66,600201105-201206

sub4520A-52142¥66,500

main4520A-52142iNCP120..LUNA¥66,500201207-201405

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNCP120¥70201105-201405

45250COLUMN ASSY, STEERING

main45250-52792iNCP120..TERRA¥93,400201011-201104

sub45250-52793¥93,400

main45250-52793iNCP120..TERRA¥93,400201105-201206

sub45250-52794¥93,400

main45250-52794iNCP120..TERRA¥93,400201207-201405

sub4520A-52132¥46,200

sub45271-52040¥90

sub45874-52040¥1,260

sub80960-52110¥21,500

sub82711-16830¥100

sub82711-3F400¥130

sub91511-B0825¥140

main45250-52802iNCP120..LUNA¥93,400201011-201104

sub45250-52803¥93,400

main45250-52803iNCP120..LUNA¥93,400201105-201206

sub45250-52804¥93,400

main45250-52804iNCP120..LUNA¥93,400201207-201405

sub4520A-52142¥66,500

sub45271-52040¥90

sub45874-52040¥1,260

sub80960-52110¥21,500

sub82711-16830¥100

sub82711-3F400¥130

sub91511-B0825¥140

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNCP120¥700201011-201405

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52201iNCP120¥12,100201011-201405

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNCP120¥90201105-201405

45286BCOVER, STEERING COLUMN, UPR

main45286-12560-C0iNCP120..LUNA201208-201607

BLACK,TRIM2#

main45286-52160-C0iNCP120..TERRA201011-201607

BLACK,TRIM2#

sub45286-52180¥1,750

main45286-52160-C0iNCP120..LUNA201011-201208

BLACK,TRIM2#,4#

sub45286-52180¥1,750

45287COVER, STEERING COLUMN, LWR

main45287-12640-C0iNCP120..LUNA201208-201607

BLACK,TRIM2#

sub45024-52080¥3,290

sub45287-52270¥2,740

main45287-52190-C0iNCP120..LUNA201011-201208

BLACK,TRIM2#,4#

sub45287-52260¥2,740

main45287-52190-C0iNCP120..TERRA201011-201607

BLACK,TRIM2#

sub45287-52260¥2,740

45289ASUPPORT, STEERING COLUMN COVER

main45289-52010-C0iNCP120..LUNA201011-201208

BLACK,TRIM2#,4#

sub45289-52010¥320

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-52040iNCP120¥1,260201105-201405

45897BOLT, STEERING LOCK SET

main45897-12020iNCP120¥210201011-201405

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNCP120¥540201011-201209

main90119-10980iNCP120¥190201210-201405

80960MOTOR ASSY, POWER STEERING

main80960-52070iNCP120¥25,700201308-201311

sub80960-52110¥21,500

main80960-52100iNCP120¥25,700201112-201307

sub80960-52070¥25,700

main80960-52110iNCP120¥21,500201312-201405

8401

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830¥100

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400¥130

9011908560

main90119-08560¥110

9046706188

main90467-06188¥160

91511B0825

main91511-B0825¥140

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

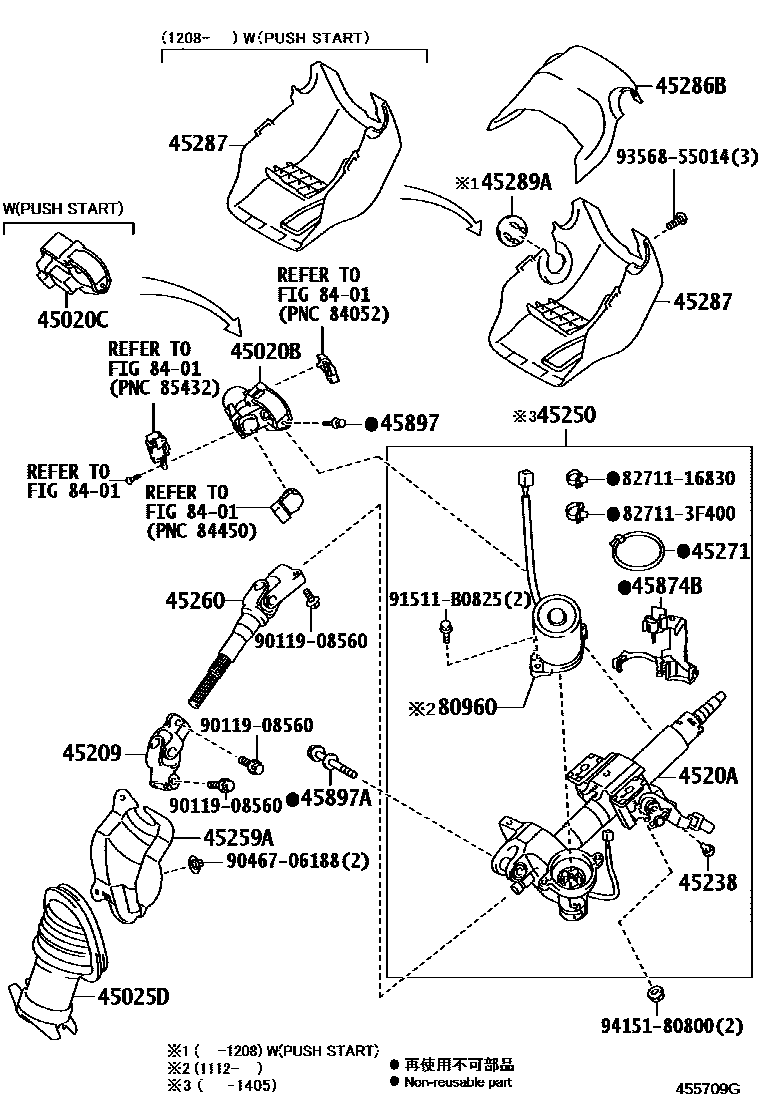

25 parts on this diagram · 1 diagram in section
