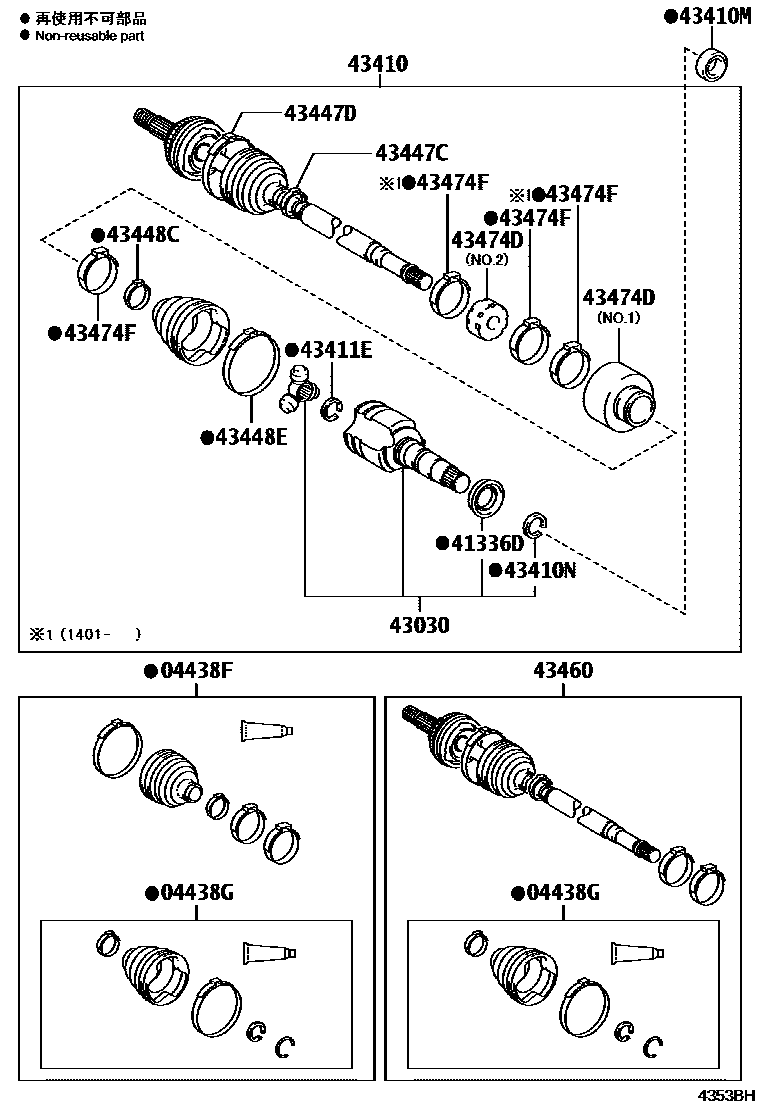

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52891iNCP120¥9,000201011-201408

sub04427-52897¥9,000

main04427-52893iNCP120¥9,000201408

sub04427-52896¥6,700

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52191iNCP120¥5,500201011-201405

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP120¥130201011-201405

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-10011iNCP120¥19,500201011-201405

sub43403-0W031¥16,200

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52270iNCP120¥68,900201011-201405

sub43410-52271¥52,100

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34035iNCP120¥400201011-201308

sub90311-34046¥400

main90311-34046iNCP120¥400201308-201405

sub90311-34050¥400

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNCP120¥100201011-201405

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNCP120¥110201011-201405

sub90520-22029¥90

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52260iNCP120¥220201011-201405

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52250iNCP120¥330201011-201405

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNCP120¥80201011-201405

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01146iNCP120¥350201011-201405

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59666iNCP120¥49,900201011-201408

sub43460-59669¥37,800

main43460-59667iNCP120¥43,300201408

sub43460-59668¥32,800

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNCP120¥4,640201011-201405

NO.1

main43474-52080iNCP120¥2,650201011-201405

NO.2

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iNCP120¥700201011-201408

15 parts on this diagram · 2 diagrams in section
