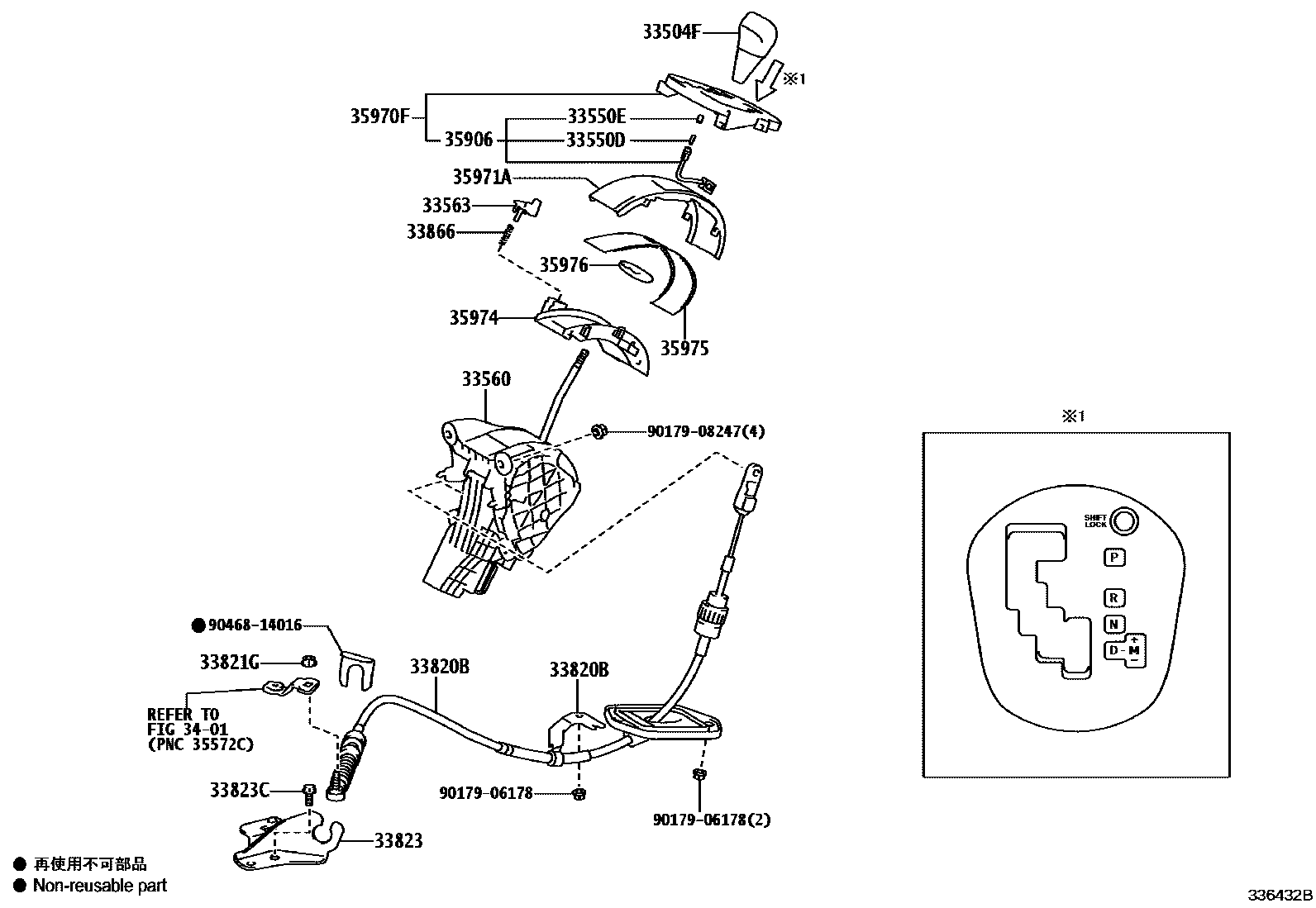

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-74011-C0iNCP120..TERRA201011-201405

BLACK,TRIM2#

main33504-74020-C1iNCP120..LUNA201011-201405

BLACK,TRIM2#

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iNCP120201405

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main35956-64020iNCP120201011-201405

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52370iNCP120..TERRA201011-201405

main33560-52380iNCP120..LUNA201011-201405

33563BUTTON, SHIFT LOCK RELEASE

main33563-52110iNCP120201011-201405

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-52720iNCP120201011-201405

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iNCP120201011-201405

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-52120iNCP120201011-201405

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91611-B0816×2iNCP120201011-201405

33866SPRING, SHIFT LOCK RELEASE

main33866-64010iNCP120201011-201405

3401

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52130iNCP120201011-201405

35970FHOUSING ASSY, POSITION INDICATOR

main35970-52100iNCP120201011-201405

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52450iNCP120201011-201405

35974HOUSING, POSITION INDICATOR, LOWER

main35974-52020iNCP120201011-201405

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52120iNCP120201011-201405

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-48050iNCP120201011-201405

9017906178

main90179-06178

9017908247

main90179-08247

9046814016

main90468-14016

20 parts on this diagram · 1 diagram in section
