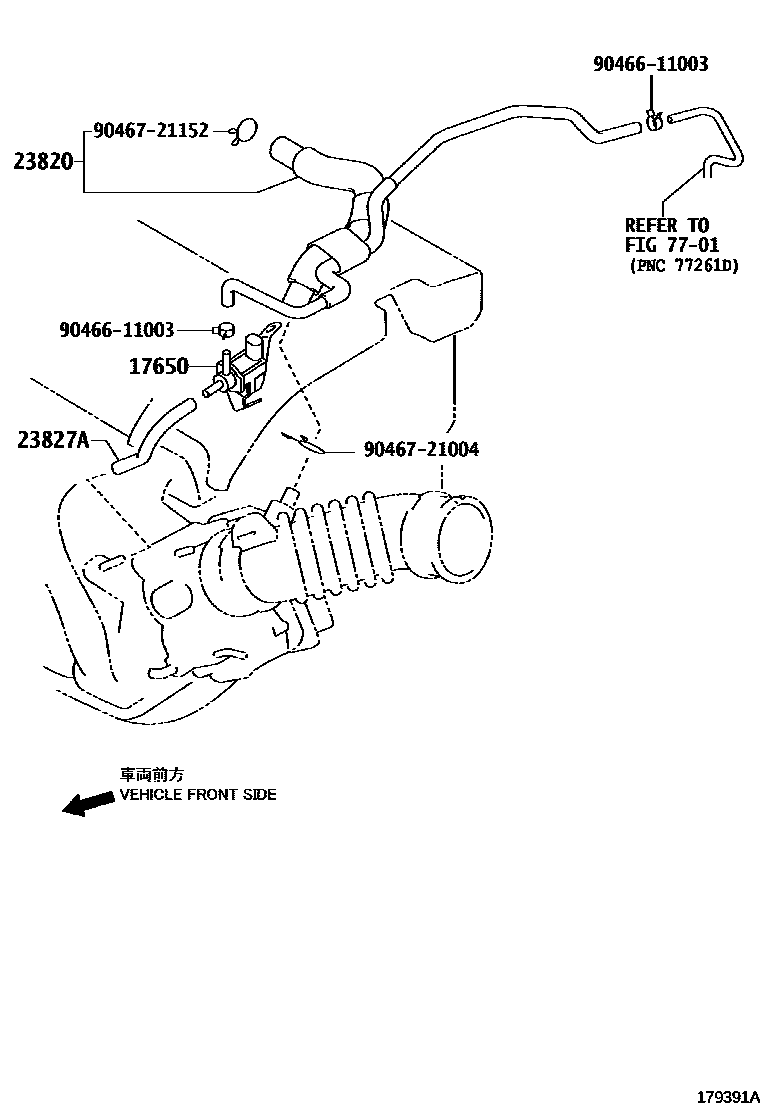

VACUUM PIPING

0001 1 0002 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-21070i1NZFE..NCP120201011-201405

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21180i1NZFE..NCP120201011-201208

sub23820-21181

main23820-21200i1NZFE..NCP120201208-201405

main23820-21201i1NZFE..NCP120201606

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21150i1NZFE..NCP120201011-201405

7701

9046611003

main90466-11003

9046721004

main90467-21004

9046721152

main90467-21152

7 parts on this diagram · 2 diagrams in section
