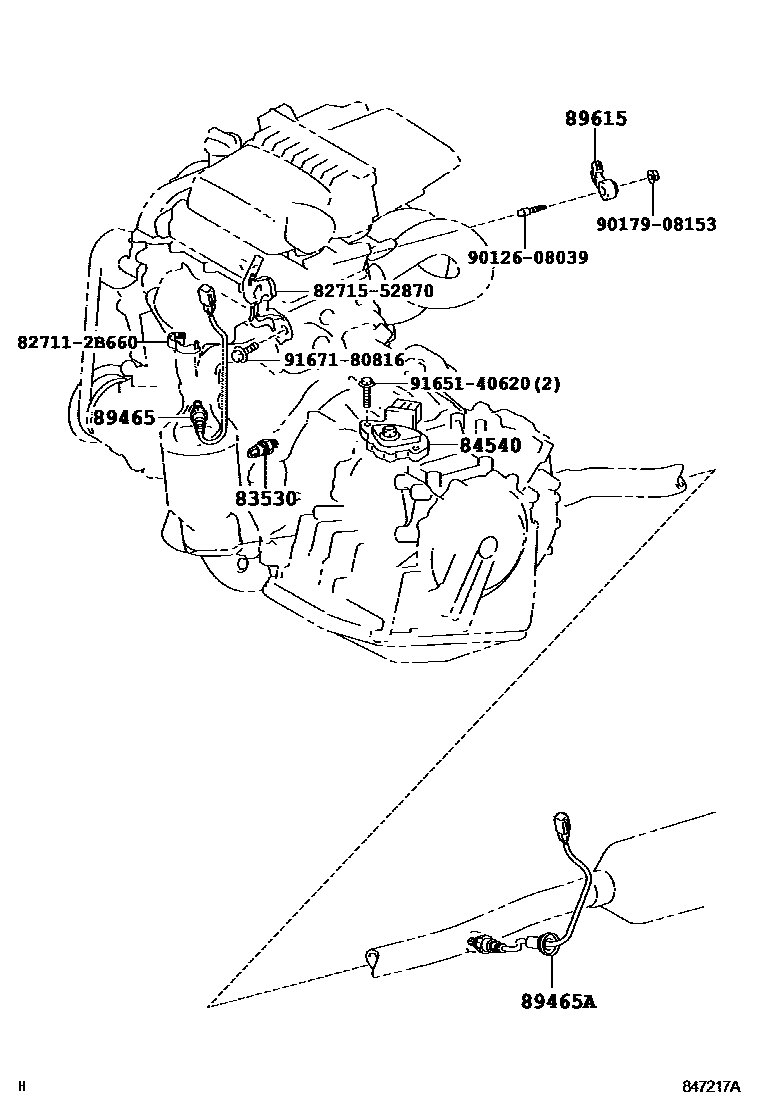

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iSCP100200910

DENSO

main83530-60020iSCP100200910

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-52070iSCP100200910-201008

89465SENSOR, OXYGEN

main89465-52250iSCP100200910

89465ASENSOR, OXYGEN NO.2

main89465-52360iSCP100200910

89615SENSOR, KNOCK CONTROL

main89615-20090iSCP100200910

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

8271552870BRACKET,WIRING HARNESS CLAMP

main82715-52870

9012608039

main90126-08039

9017908153

main90179-08153

9165140620

main91651-40620

9167180816

main91671-80816

11 parts on this diagram · 7 diagrams in section
