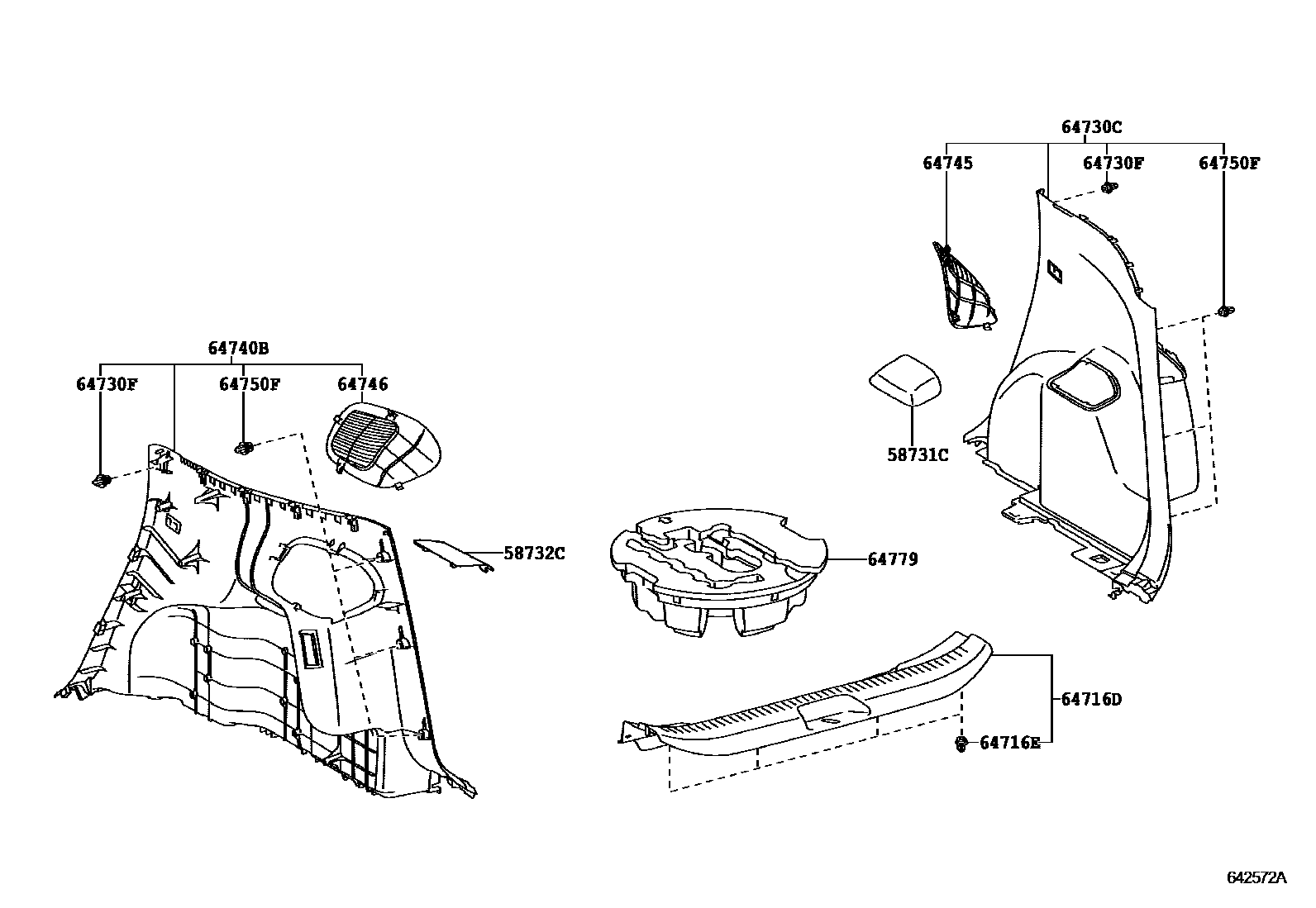

DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

main58731-52050-B0iSCP100200910-201008

DK.GRAY,TRIM1#

sub58731-52050

58732CCAP, REAR ABSORBER

main58732-52030-B0iSCP100200910-201008

DK.GRAY,TRIM1#

sub58732-52030

64716DCOVER, DECK TRIM, REAR

main64716-52130-B0iSCP100200910-201008

DK.GRAY,TRIM1#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iSCP100200910

64730CBOARD, DECK TRIM SIDE, RH

main64731-52050-B0iSCP100200910-201008

DK.GRAY,TRIM1#

64730FCLAMP(FOR DECK TRIM SIDE BOARD)

main90467-10167iSCP100200910

64740BBOARD, DECK TRIM SIDE, LH

main64732-52050-B0iSCP100200910-201008

DK.GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-52110-B0iSCP100200910-201008

DK.GRAY,TRIM1#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-52120-B0iSCP100200910-201008

DK.GRAY,TRIM1#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iSCP100200910

64779TRAY, SPARE WHEEL COVER

main64779-46010iSCP100200910

11 parts on this diagram · 1 diagram in section
