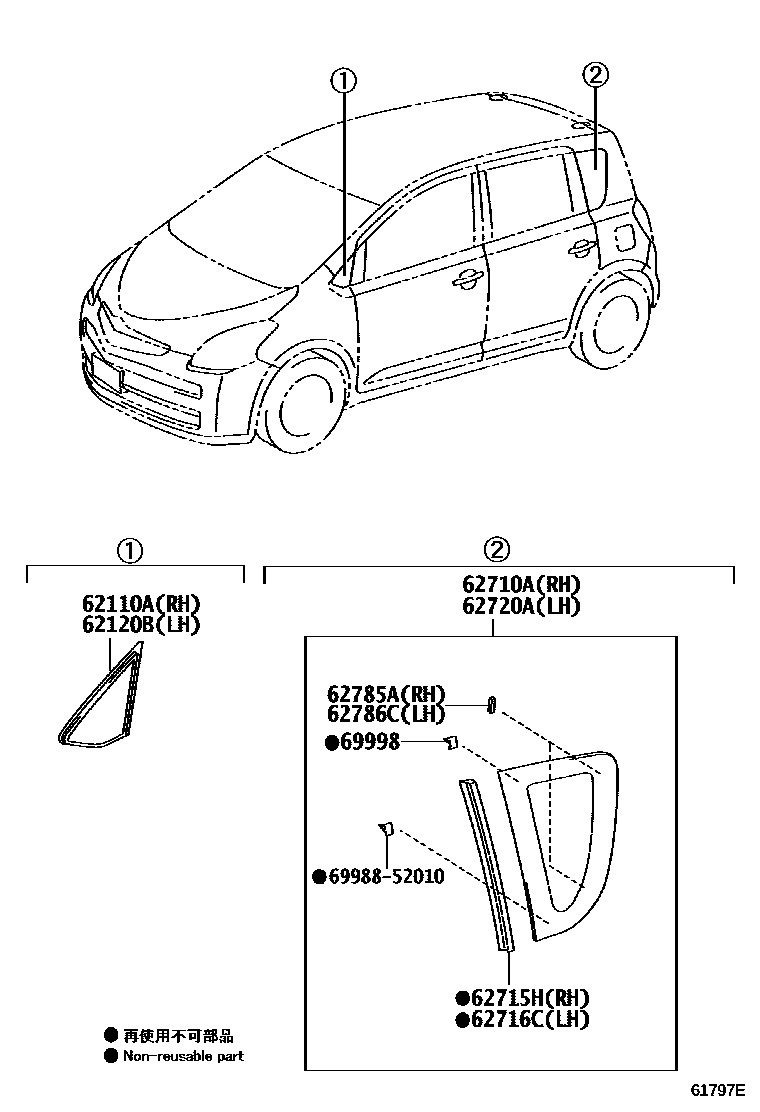

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-52020iSCP100200910

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-52020iSCP100200910

62710AWINDOW ASSY, QUARTER, RH

main62710-52230iSCP100200910

*UVCT,T=2.8,GREEN

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62715-52050iSCP100200910

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62715-52050iSCP100200910

62720AWINDOW ASSY, QUARTER, LH

main62720-52230iSCP100200910

*UVCT,T=2.8,GREEN

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030×2iSCP100200910

62786CSPACER, QUARTER WINDOW GLASS, LH

main62785-16030×2iSCP100200910

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-52040iSCP100200910

RH

main69999-52010iSCP100200910

LH

6998852010SPACER, QUARTER WINDOW GLASS

main69988-52010

10 parts on this diagram · 1 diagram in section
