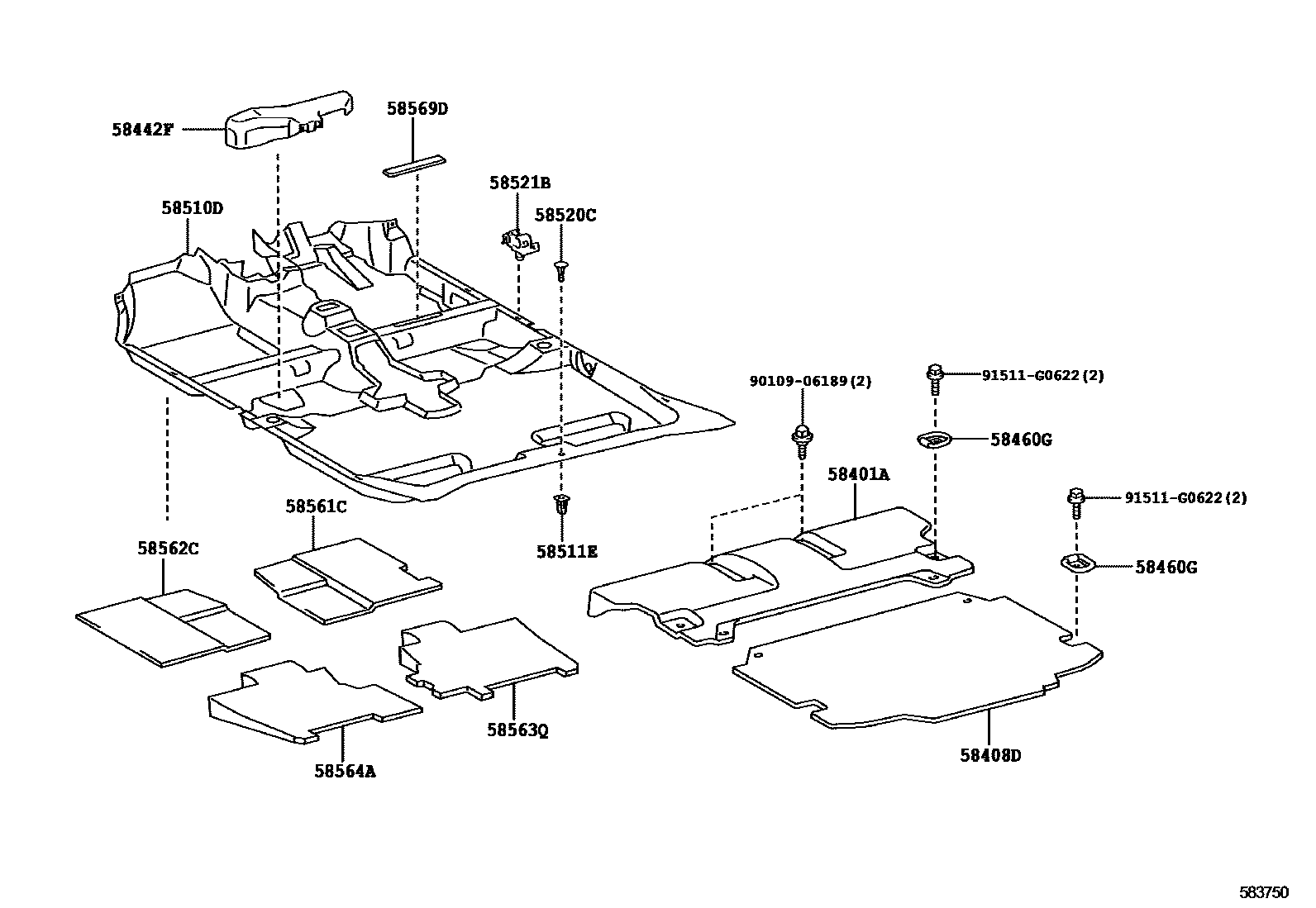

MAT & CARPET

58401ABOARD SUB-ASSY, DECK, NO.1

main58401-52060-B1iSCP100200910-201008

DARK GRAY,TRIM1#

58408DBOARD SUB-ASSY, DECK, NO.2

main58408-52040-B1iSCP100200910-201008

DARK GRAY,TRIM1#

58442FCOVER, JACK

main58442-52060iSCP100200910

58460GSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-52020×4iSCP100200910

58510DCARPET ASSY, FLOOR, FRONT

main58510-52B51-B0iSCP100200910-201008

GRAY,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-10023iSCP100200910

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07115-B0iSCP100200910-201008

DK.GRAY,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-52040×6iSCP100200910

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52140iSCP100200910-200912

main58561-52141iSCP100201001

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52110iSCP100200910-200912

main58562-52111iSCP100201001

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52120iSCP100200910

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52120iSCP100200910

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-52020-B0iSCP100200910-201008

DK.GRAY,TRIM1#

sub58569-52021

9010906189

main90109-06189

91511G0622

main91511-G0622

15 parts on this diagram · 1 diagram in section
