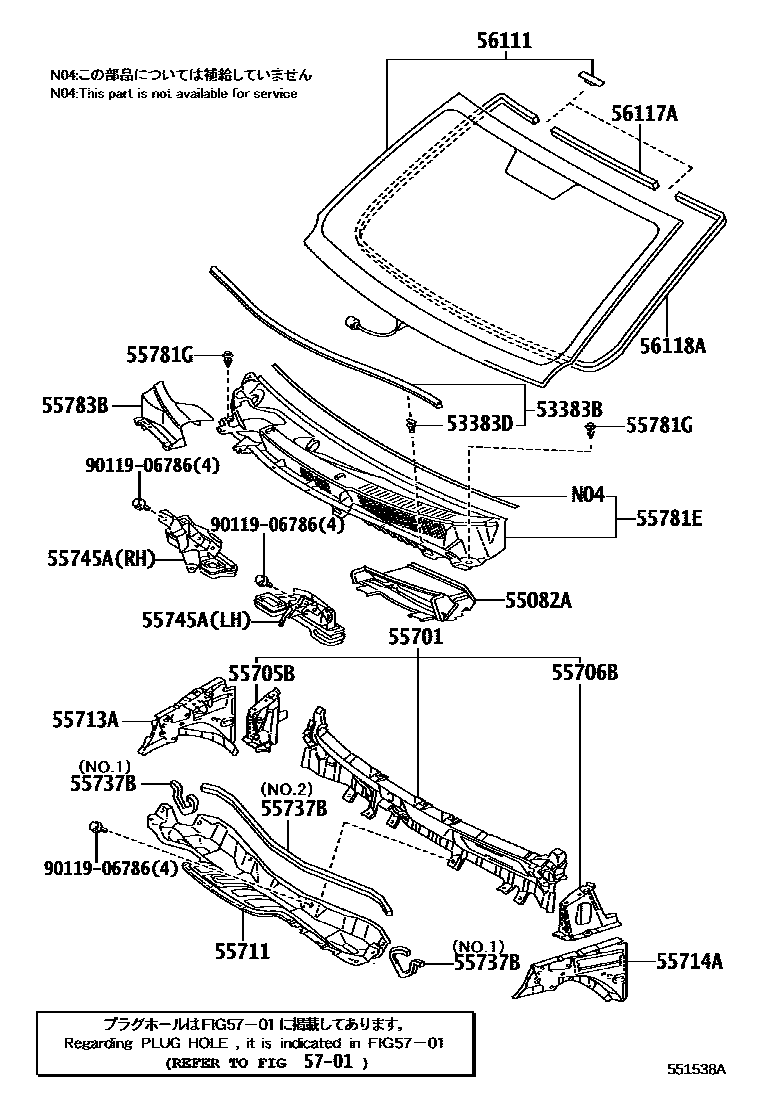

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52090iSCP100200910

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iSCP100200910

55082ADUCT SUB-ASSY, COWL TO REGISTER, LH

main55082-52020iSCP100200910

55701PANEL SUB-ASSY, COWL

main55700-52230iSCP100200910-201008

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52100iSCP100200910

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52100iSCP100200910

55711PANEL, COWL TOP, OUTER

main55701-52200iSCP100200910

55713APANEL, COWL TOP SIDE, RH

main55703-52260iSCP100200910-201008

55714APANEL, COWL TOP SIDE, LH

main55704-52020iSCP100200910-201008

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52050iSCP100200910

NO.1

main55737-52060iSCP100200910

NO.2

55745AREINFORCEMENT, COWL TOP, INNER

main55705-52120iSCP100200910

RH

main55706-52120iSCP100200910

LH

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52070iSCP100200910

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-16010iSCP100200910

sub52161-0K040

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52190iSCP100200910

56111GLASS, WINDSHIELD

main56101-52290iSCP100200910

*LAM,T=4.5,GREEN

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52140iSCP100200910

L=616

sub56117-74010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-52090iSCP100200910

L=3355

sub56117-64010

5701

9011906786

main90119-06786

19 parts on this diagram · 1 diagram in section
