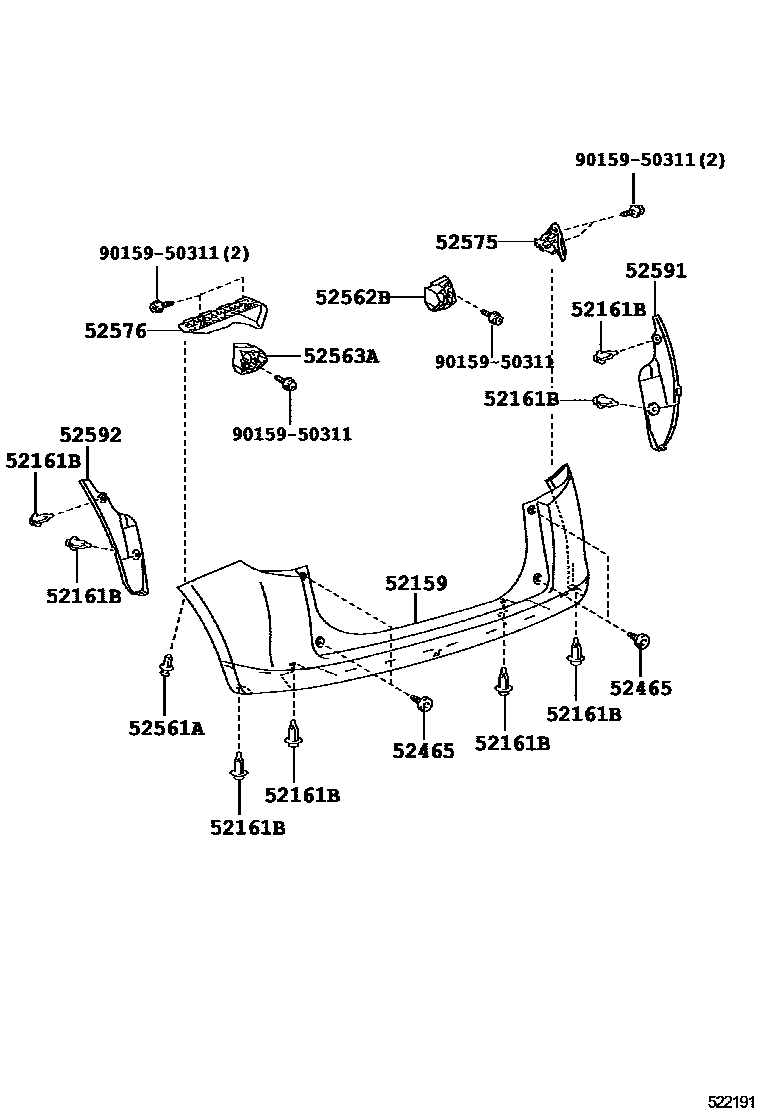

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-52956iSCP100¥25,800200910-201008

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iSCP100¥120200910

sub52161-0K040¥120

52465CUSHION, REAR BUMPER, NO.1

main52461-52020iSCP100¥590200910

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iSCP100200910-201008

DK.GRAY

sub90467-05090¥110

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-52040iSCP100¥3,430200910

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-52010iSCP100¥3,430200910

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52130iSCP100¥3,570200910

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52110iSCP100¥3,570200910

52591SEAL, REAR BUMPER SIDE, RH

main52591-52220iSCP100¥1,330200910

52592SEAL, REAR BUMPER SIDE, LH

main52592-52210iSCP100¥1,330200910

9015950311

main90159-50311¥70

11 parts on this diagram · 1 diagram in section
