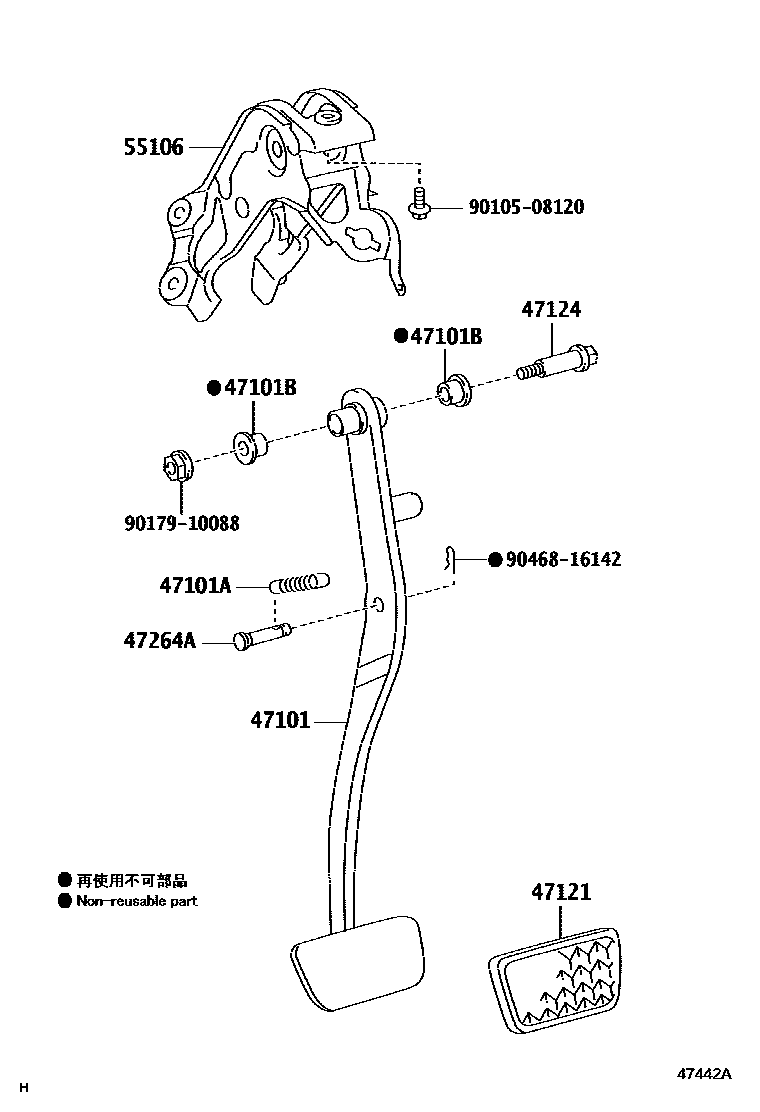

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52240iSCP100200910

sub47101-52241

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iSCP100200910

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSCP100200910

47121PAD, BRAKE PEDAL

main47121-52010iSCP100200910

47124SHAFT, BRAKE PEDAL

main90109-10167iSCP100200910

47264APIN(FOR PUSH ROD)

main90249-08051iSCP100200910

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52130iSCP100200910

sub55106-52H01

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

10 parts on this diagram · 1 diagram in section
