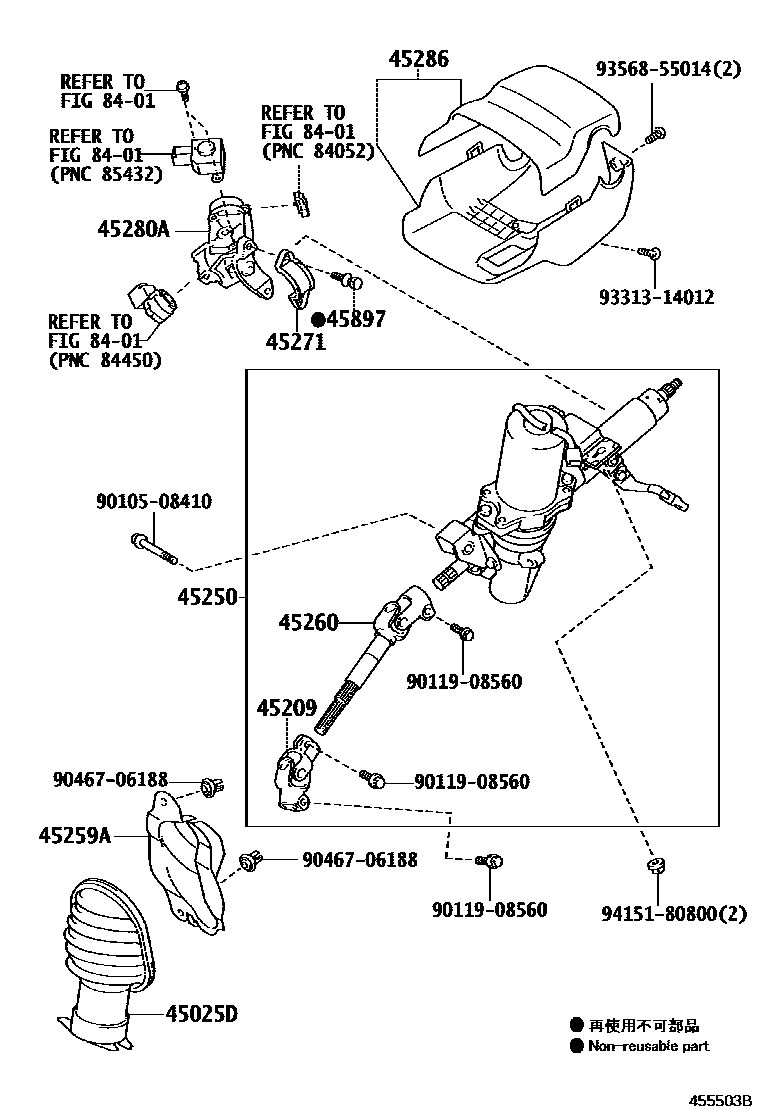

STEERING COLUMN & SHAFT

0001 1 0002 1W(SMART KEY SYSTEM)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iSCP100¥3,010200910

sub45025-52170¥2,750

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52070iSCP100¥7,200200910

45250COLUMN ASSY, STEERING

main45250-52162iSCP100¥104,000200910-201008

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iSCP100¥700200910

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52221iSCP100¥14,700200910

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iSCP100¥440200910

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iSCP100¥14,300200910-201008

45286COVER, STEERING COLUMN

main45286-52931-B0iSCP100200910-201008

DK.GRAY,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020iSCP100¥210200910

8401

9010508410

main90105-08410¥220

9011908560

main90119-08560¥110

9046706188

main90467-06188¥160

9331314012

main93313-14012¥60

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

16 parts on this diagram · 2 diagrams in section
