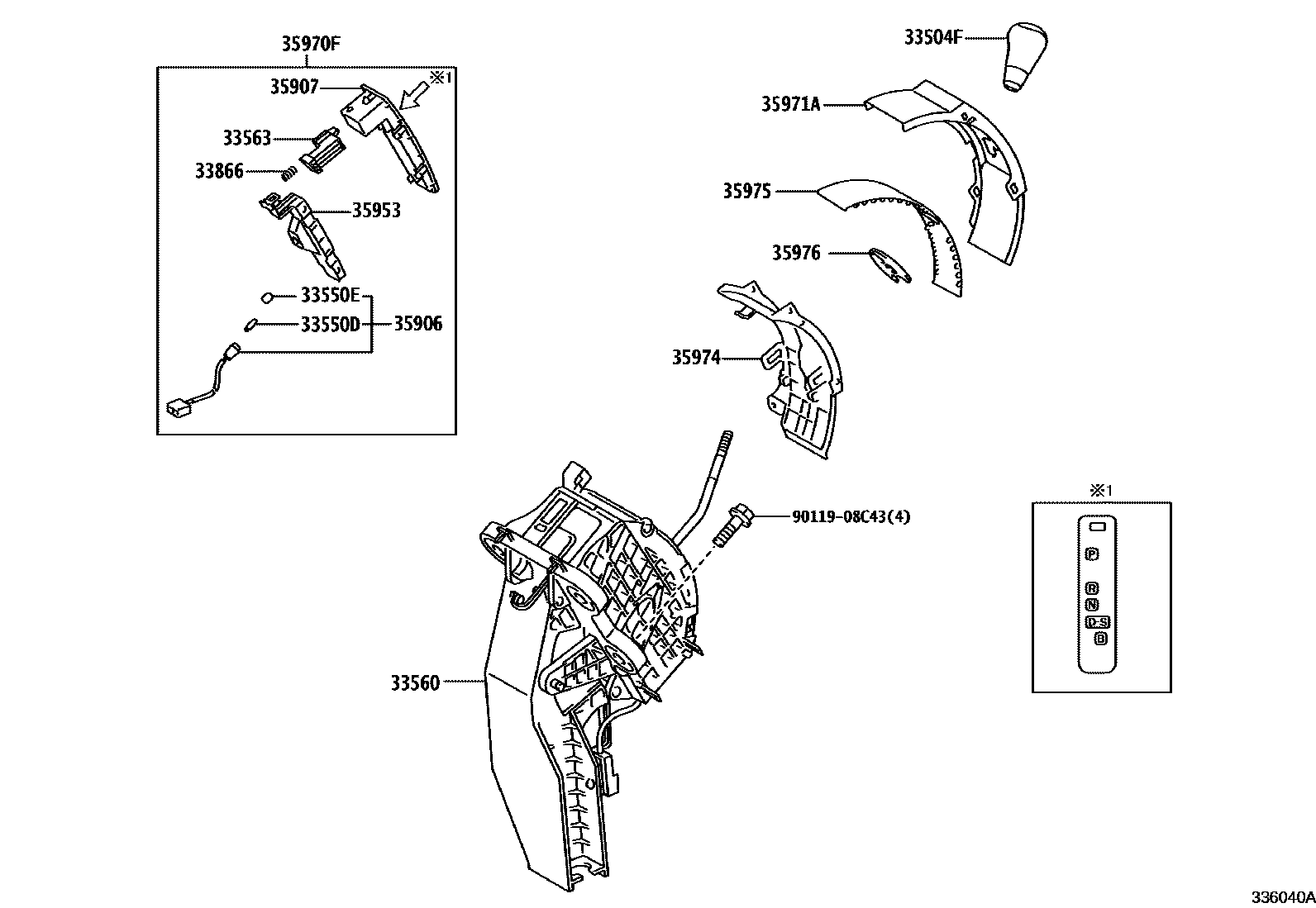

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-68010-B0iSCP100200910-201008

DK.GRAY,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iSCP100200910-201008

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-58010iSCP100200910-201008

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52280supersedes 33560-52240iSCP100200910

L PACKAGE

33563BUTTON, SHIFT LOCK RELEASE

main33563-52130iSCP100200910

33866SPRING, SHIFT LOCK RELEASE

main33866-52020iSCP100200910

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52100iSCP100200910

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-52180iSCP100200910

35953GUIDE, POSITION INDICATOR LIGHT

main35953-52070iSCP100200910

35970FHOUSING ASSY, POSITION INDICATOR

main35970-52060iSCP100200910

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52240iSCP100200910

35974HOUSING, POSITION INDICATOR, LOWER

main35974-52010iSCP100200910

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52090iSCP100200910

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-52090iSCP100200910

9011908C43

main90119-08C43

15 parts on this diagram · 2 diagrams in section
