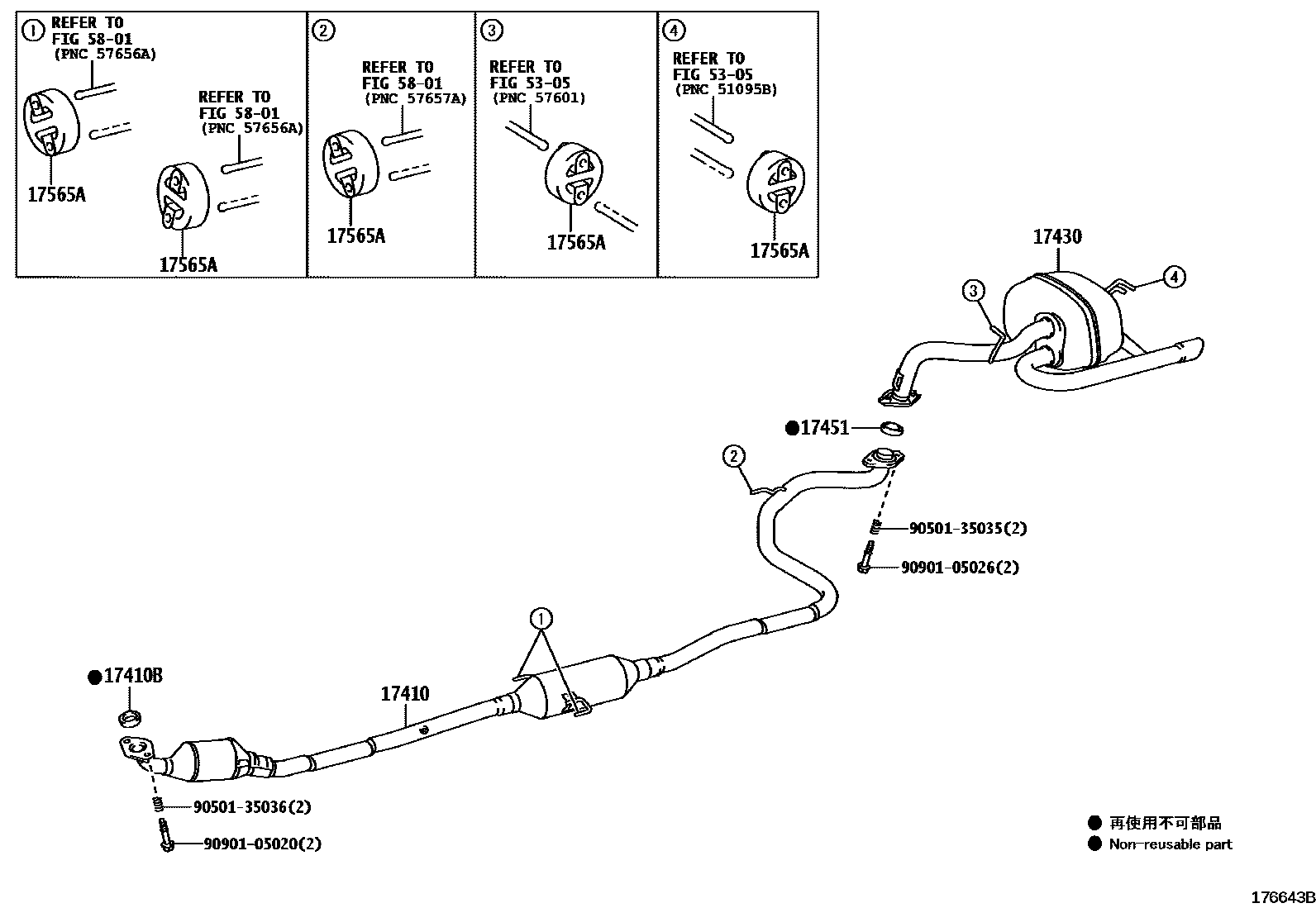

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-23160i2SZFE..SCP100200910-201001

main17410-23161i2SZFE..SCP100201001

17410BGASKET, EXHAUST PIPE

main17451-21070i2SZFE..SCP100200910

17430PIPE ASSY, EXHAUST, TAIL

main17430-21681i2SZFE..SCP100200910

17451GASKET, EXHAUST PIPE

main17451-23041i2SZFE..SCP100200910-201008

sub17451-23042

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-40010×5i2SZFE..SCP100200910

sub17565-47010

5305

5801

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

11 parts on this diagram · 1 diagram in section
