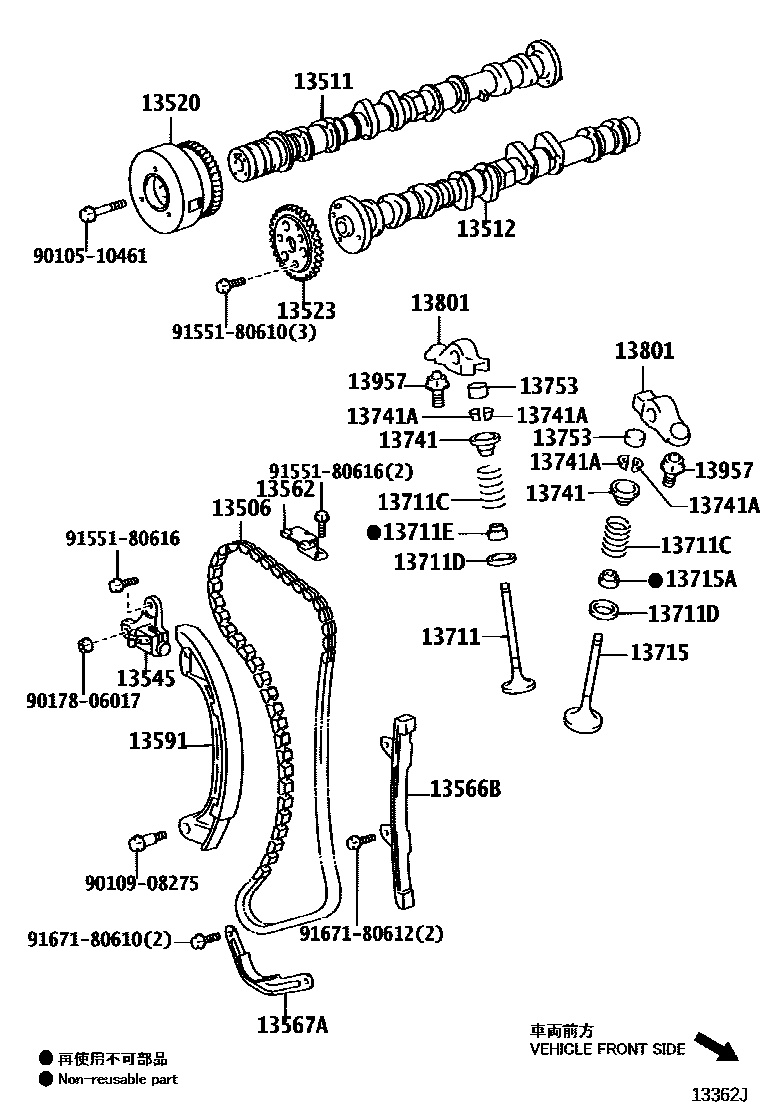

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13512CAMSHAFT, NO.2
13520SPROCKET ASSY, CAMSHAFT TIMING
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13545PLUNGER, CHAIN TENSIONER
13562DAMPER, CHAIN VIBRATION, NO.2
13566BGUIDE, TIMING CHAIN
13567AGUIDE, TIMING CHAIN, NO.2
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711CSPRING, COMPRESSION(FOR OUTER)
BLUE PAINTED
YELLOW PAINTED
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.000
T=2.020
T=2.040
T=2.060
T=2.080
T=2.100
T=2.120
T=2.140
T=2.160
T=2.180
T=2.200
T=2.220
T=2.240
T=2.260
T=2.280
T=2.300
T=2.320
T=2.340
T=2.360
T=2.380
T=2.400
T=2.420
T=2.440
T=2.460
T=2.480
T=2.500
T=2.520
T=2.540
T=2.560
T=2.580
T=2.600
T=2.620
T=2.640
T=2.660
T=2.680
T=2.700
T=2.720
T=2.740
T=2.760
T=2.780
T=2.800
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13957PIVOT, VALVE ROCKER ARM
9010510461
main90105-10461
9010908275
main90109-08275
9017806017
main90178-06017
9155180610
main91551-80610
9155180616
main91551-80616
9167180610
main91671-80610
9167180612
main91671-80612
28 parts on this diagram · 1 diagram in section
