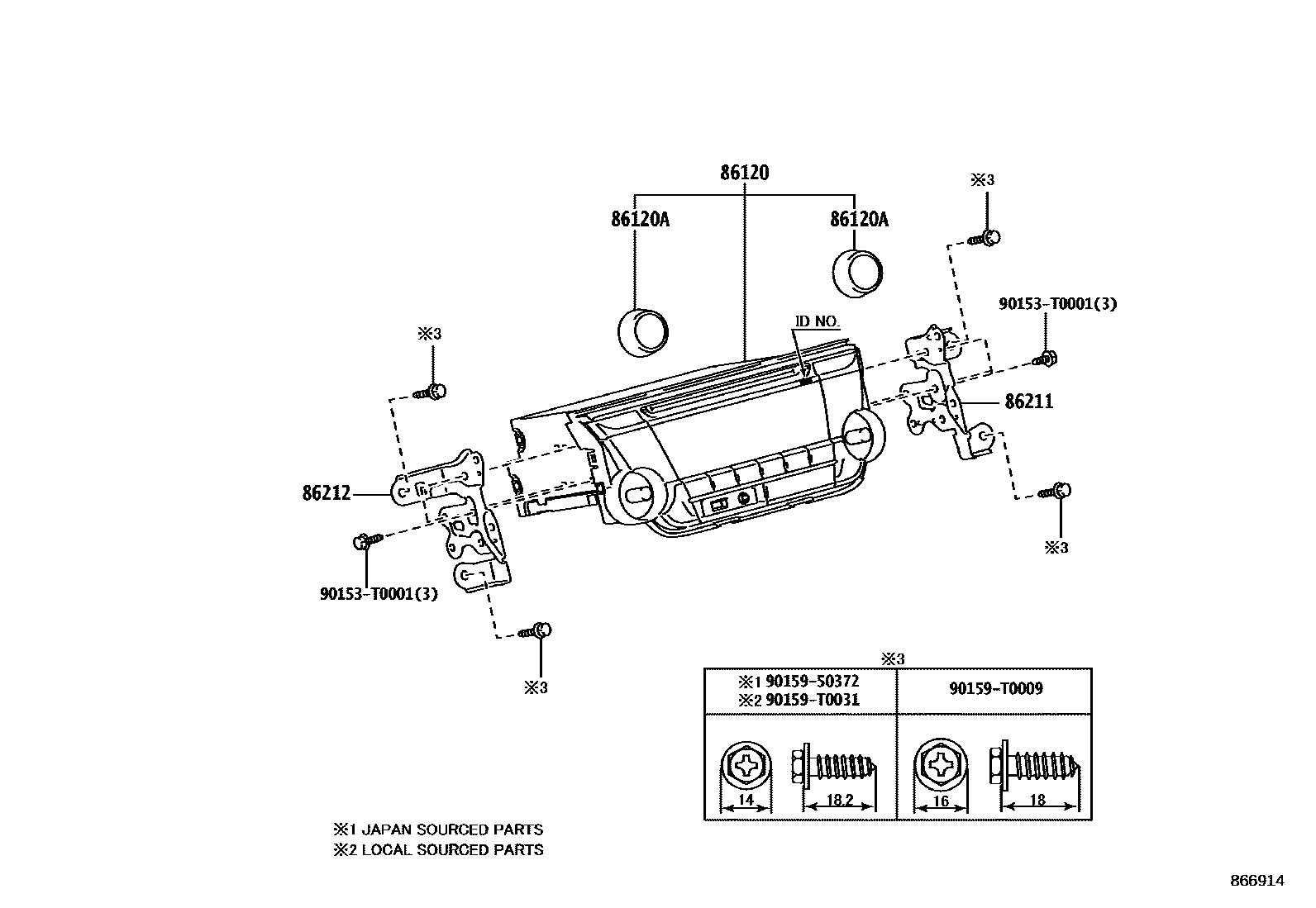

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0006 1RECEIVER 0011 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0D790iNSP152201310-201708

PANASONIC,ID=528AM

main86120-0D790iNCP151,NSP150,152..RHD201310-201708

PANASONIC,ID=528AM,ECO PACKAGE

main86120-0D790iNCP151,NSP150,152..RHD201310-201708

PANASONIC,ID=528AM,J PACKAGE

main86120-0D800iNCP15#..PH201403-201710

PANASONIC,ID=528AK

sub86120-0D801

main86120-0D801iNSP151..TAIW201711-201802

PANASONIC,ID=528AK

main86120-0D801iNSP151..TAIW201711-201802

PANASONIC,ID=528AK,G-LO PACKAGE(FOR TAIWAN)

main86120-0DA40iNSP152201709-201910

PANASONIC,ID=510250

main86120-0DA40iNSP152201709-201910

PANASONIC,ID=510250,G PACKAGE

main86120-0DA50iNSP151..SA..D201710-202207

PANASONIC,ID=510251

main86120-0DA70iNSP150..H201806-201910

DENSO TEN,ID=100749

main86120-0DA80iNSP151..(D,R)..H201806-201910

DENSO TEN,ID=100750

main86120-0DB80iNSP151..GEN..G201806-201910

DENSO TEN,ID=100752

main86120-0DC00iNSP150..5F..GEN..R201710-202302

PANASONIC,ID=510261,ASEAN GENERAL SPEC&AUDIO-RADIOLESS 4SPEAKER

main86120-0DC00iNSP150,151..LHD..GEN..R201710-202302

PANASONIC,ID=510261,LATIN AMERICA SPEC&AUDIO-RADIOLESS 4SPEAKER

main86120-0DC00iNSP150..5F..GEN..R201710-202302

PANASONIC,ID=510261

main86120-0DC10iNSP150..CVT..GEN..G201710-202302

PANASONIC,ID=510262

main86120-0DC10iNSP150..CVT..GEN..G201710-202302

PANASONIC,ID=510262,ASEAN GENERAL SPEC&AUDIO-RADIOLESS 6SPEAKER

main86120-0DC90iNSP150..RHD201710-202108

PANASONIC,ID=510269

main86120-0DC90iNSP150..RHD201710-202108

PANASONIC,ID=510269,LATIN AMERICA SPEC&AUDIO-RADIOLESS 4SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25216iNCP15#..PH201310-201802

86211BRACKET, RADIO, NO.1

main86211-0D100iNCP15#..GCC,GEN,PH,VN201310-201708

TYPE A:REFER ILLUST.

main86211-0D170iNSP151..TAIW201409-201802

TYPE A:REFER ILLUST.

main86211-0D190iNSP151..C201403-201712

TYPE A:REFER ILLUST.

sub86211-0D290

main86211-0D260iNSP152..HTWC;NSP150,151..LHD..GEN..A201709-202302

TYPE A:REFER ILLUST.

main86211-0D360iNSP151..GEN..H;NSP150,151..(AGT,BZ)..(D,R)201806-201910

TYPE A:REFER ILLUST.

main86211-0D370iNSP150..5F..G201710-202302

AUDIO-RADIOLESS 4SPEAKER,TYPE B:REFER ILLUST.

main86211-0D370iNSP151..F201710-202302

TYPE B:REFER ILLUST.

main86211-0D370iNSP150..5F..PH201710-202302

AUDIO-RADIOLESS 6SPEAKER,TYPE B:REFER ILLUST.

main86211-0D390iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

TYPE B:REFER ILLUST.

main86211-0D430iNSP150..R..H201806-201910

XL-PLUS PACKAGE,TYPE B:REFER ILLUST.

main86211-0D430iNSP150..R..H201806-201910

TYPE B:REFER ILLUST.

86212BRACKET, RADIO, NO.2

main86212-0D100iNSP15#..GCC,GEN,PH,TH,VN201310-201708

TYPE A:REFER ILLUST.

main86212-0D170iNCP150..TAIW201409-201802

TYPE A:REFER ILLUST.

main86212-0D190iNCP150..C201403-201712

TYPE A:REFER ILLUST.

sub86212-0D290

main86212-0D250iNSP151..SA..D201709-202302

TYPE A:REFER ILLUST.

main86212-0D340iNSP151..GEN..H;NSP150,151..(AGT,BZ)..(D,R)201806-201910

TYPE A:REFER ILLUST.

main86212-0D350iNSP150,151..LHD..GEN..(D,R)..A201710-202302

AUDIO-RADIOLESS 6SPEAKER,TYPE B:REFER ILLUST.

main86212-0D350iNSP150..CVT..GEN..G201710-202302

AUDIO-RADIOLESS 4SPEAKER,TYPE B:REFER ILLUST.

main86212-0D350iNSP151..F201710-202302

TYPE B:REFER ILLUST.

main86212-0D370iNSP151..5F..R..C201802-202108

TYPE B:REFER ILLUST.

main86212-0D410iNSP150..R..H201806-201910

XL-PLUS PACKAGE,TYPE B:REFER ILLUST.

main86212-0D410iNSP151..(AGT,BZ)..(G,V)201806-201910

TYPE B:REFER ILLUST.

90153T0001

main90153-T0001

9015950372

main90159-50372

90159T0009

main90159-T0009

90159T0031

main90159-T0031

8 parts on this diagram · 3 diagrams in section
