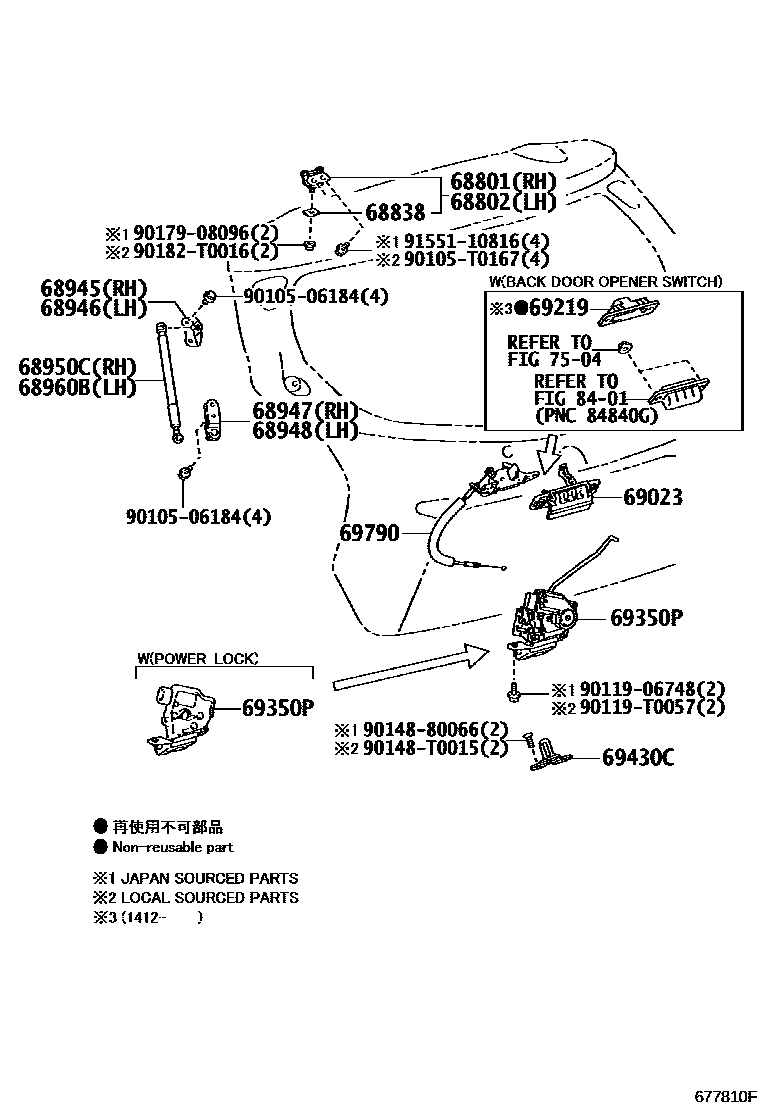

BACK DOOR LOCK & HANDLE

0001 1 0004 1

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-0D150iNSP150,151..H201806-201910

main68801-0D180iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main68801-0D230iNCP150..TAIW201409-202101

main68801-0D280iNSP151..5F..R..C201403-202108

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-0D150iNSP150,151..H201806-201910

main68801-0D180iNCP15#..GCC,GEN,PH,VN201310-202302

main68801-0D230iNCP150..TAIW201409-202101

main68801-0D280iNSP151..5F..R..C201403-202108

68838PAD, BACK DOOR HINGE, NO.1

main68838-0D110iNSP151..F201409-202101

T=0.5

main68838-0D120iNSP151..TAIW201409-202101

T=1.0

main68838-0D130iNSP150..RHD;NSP150..5F..PH201310-202302

T=1.5

main68838-0D240iNSP151..5F..R..C201403-202108

T=1.0

main68838-0D310iNSP150,151..H201806-201910

T=0.5

main68838-0D320iNSP150,151..H201806-201910

T=1.0

main68838-0D330iNSP150,151..H201806-201910

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0D050iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main68945-0D070iNSP151..F201409-202101

main68945-0D080iNSP151..5F..R..C201403-202108

main68945-0D130iNSP150,151..H201806-201910

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-0D050iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main68945-0D070iNSP151..TAIW201409-202101

main68945-0D080iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main68945-0D130iNSP150,151..H201806-201910

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0D010iNCP15#..GCC,GEN,PH,VN201310-201708

main68947-0D020iNCP150..TAIW201409-201802

main68947-0D040iNSP151..C201403-201712

main68947-0D070iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main68947-0D080iNSP151..F201804-202101

main68947-0D090iNSP151..5F..R..C201802-202108

main68947-0D100iNSP150,151..H201806-201910

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68947-0D010iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main68947-0D020iNCP150..TAIW201409-201802

main68947-0D040iNCP150..C201403-201712

main68947-0D070iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main68947-0D080iNSP151..F201804-202101

main68947-0D090iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main68947-0D100iNSP150,151..H201806-201910

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D090iNCP150..C201310-201802

main68950-0D190iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

main68950-0D250iNSP150,151..H201806-201910

68960BSTAY ASSY, BACK DOOR, LH

main68960-0D030iNCP150..TAIW201310-201802

main68960-0D150iNSP152..HTWC;NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(GCC,IDN,MA)..(D,G,V)201709-202302

main68960-0D210iNSP150,151..H201806-201910

69023HANDLE SUB-ASSY, BACK DOOR OUTSIDE

main69023-0D010iNCP15#..5F..D201403-201708

J-LO PACKAGE(FOR LATIN AMERICA)&WIRELESS DOOR LOCK-WITHOUT

main69023-0D010iNSP152201310-201708

ECO PACKAGE&WIRELESS DOOR LOCK-WITHOUT

main69023-0D010iNSP152201310-201708

J PACKAGE&WIRELESS DOOR LOCK-WITHOUT

69219SEAL, BACK DOOR OUTSIDE HANDLE

main69219-0D020iNCP150..TAIW201412-201802

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0D170iNSP152201310-201708

J PACKAGE&WIRELESS DOOR LOCK-WITHOUT

main69350-0D180iNCP15#..GCC,GEN,PH,VN201310-202302

main69350-0D200iNCP15#..5F..D201403-201708

J-LO PACKAGE(FOR LATIN AMERICA)&WIRELESS DOOR LOCK-WITHOUT

main69350-0D200iNSP152201310-201708

ECO PACKAGE&WIRELESS DOOR LOCK-WITHOUT

main69350-0D260iNSP151..5F..R..C202006-202108

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0D090iNSP15#..GCC,GEN,PH,TH,VN201310-202302

main69430-0D110iNSP151..(G,V)..C;NSP151..CVT..R..C202006-202108

main69430-52050iNCP150..TAIW201409-202101

69790CONTROL ASSY, BACK DOOR LOCK

main69790-0D010iNSP152201310-201708

ECO PACKAGE&WIRELESS DOOR LOCK-WITHOUT

main69790-0D010iNSP152201310-201708

J PACKAGE&WIRELESS DOOR LOCK-WITHOUT

main69790-0D010iNSP150,151..5F..D201403-201708

J-LO PACKAGE(FOR LATIN AMERICA)&WIRELESS DOOR LOCK-WITHOUT

7504

8401

9010506184

main90105-06184

90105T0167

main90105-T0167

9011906748

main90119-06748

90119T0057

main90119-T0057

9014880066

main90148-80066

90148T0015

main90148-T0015

9017908096

main90179-08096

90182T0016

main90182-T0016

9155110816

main91551-10816

25 parts on this diagram · 2 diagrams in section
