BACK DOOR PANEL & GLASS

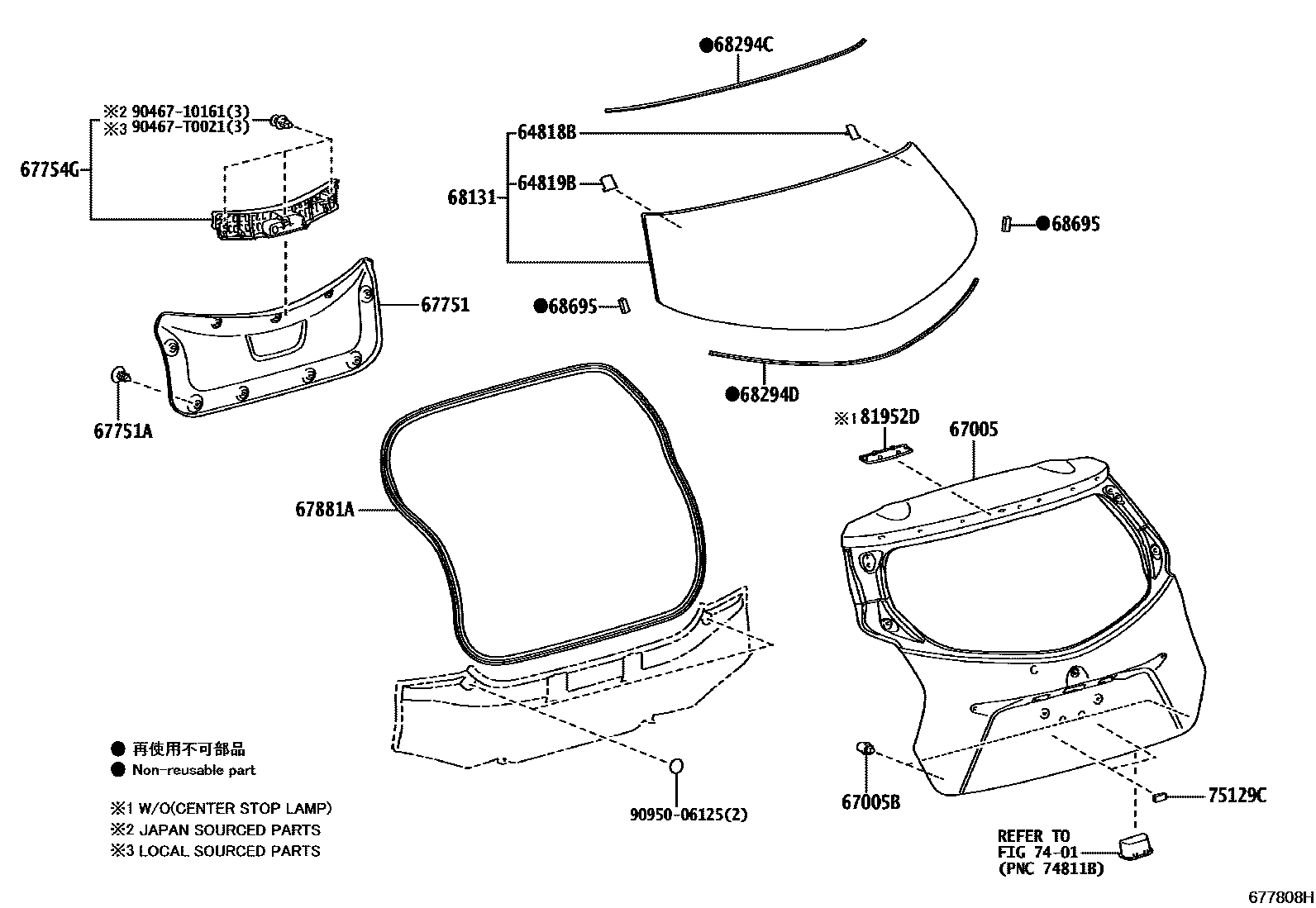

Parts diagram

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0D010i201310-201606

main64818-0D020i201409-201604

main64818-0D050i201403-201609

main64818-0D080i201709-202302

main64818-0D090i201802-202108

main64818-0D100i201804-202101

main64818-0D110i201806-201910

main64818-0D130i201904-202011

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0D010i201310-201606

main64819-0D020i201409-201604

main64819-0D040i201403-201609

main64819-0D070i201709-202302

main64819-0D080i201802-202108

main64819-0D090i201804-202101

main64819-0D100i201806-201910

main64819-0D120i201904-202011

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D130i201409-201802

main67005-0D190i201403-201606

main67005-0D290i201403-201712

main67005-0D460i201709-202108

main67005-0D480i201710-202108

main67005-0D490i201802-202009

main67005-0D500i201804-202101

main67005-0D510i201806-201910

main67005-0D680i201806-201910

main67005-0D730i201806-201910

main67005-0D740i201806-201910

main67005-0D770supersedes 67005-0D180i201904-202302

main67005-0D780i202009-202302

PERU SPEC&AUDIO-RADIOLESS 6SPEAKER & W(AUDIO LESS COVER)

main67005-0D830i202009

main67005-0D260supersedes 67005-0D180i201604-201708

J PACKAGE&WIRELESS DOOR LOCK-WITHOUT

main67005-0D270i201604-201606

LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)&WIRELESS DOOR LOCK-WITHOUT

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09125×2i201310-201604

main90541-09133×2i201709-202101

67751BOARD, BACK DOOR TRIM

main67750-0D120-C0i201607-201708

BLACK,TRIM2#

main67750-0D130-C0i201409-201604

BLACK,TRIM2#

main67750-0D150-C0i201403-201609

BLACK,TRIM2#

main67750-0D240i201709-202302

main67750-0D250i201804-202101

main67750-0D260i201806-201910

main67750-0D270i201802-202108

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08186-C0×9i201310-201604

BLACK

main90467-08186-C3×9i201610-201708

BLACK

67754GSPACER, BACK DOOR TRIM

main67754-0D050i201310-201606

main67754-0D060i201409-201802

main67754-0D070i201403-201712

67881AWEATHERSTRIP, BACK DOOR

main67881-0D080i201310-201606

main67881-0D110i201409-201604

main67881-0D120i201403-201712

main67881-0D170i201709-202207

main67881-0D180i201802

main67881-0D190i201804-202101

main67881-0D200i201806-201812

main67881-0D201i201901-201910

68131GLASS, BACK DOOR

main68105-0D170i201403-201708

main68105-0D180i201409-201604

main68105-0D220i201403-201609

BRUNEI SPEC

main68105-0D230i201403-201609

main68105-0D250i201310-201708

main68105-0D350i201804-202101

main68105-0D360i201806-201910

main68105-0D903i201802-202108

main68105-0D904supersedes 68105-0D904i201802

main68105-0D905i201710-202302

main68105-0D906i201709-202302

main68105-0D907i201904-202011

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main56117-0D300i201409-201802

main56117-50140i201806-201910

main64813-0D230i201310-201708

main64813-0D310i201403-201609

main64813-0D380i201709-202108

main64813-0D390i201802

main64813-0D400i201804-202101

68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2

main56117-0D300i201409-201802

main64814-0D080i201310-201606

main64814-0D160i201403-201712

68695PAD, BACK DOOR WINDOW FRAME

main75955-0D010×2i201310-201606

main75955-0D020×2i201409-201604

main75955-0D040×2i201403-201712

main75955-0D060×2i201806-201910

main75955-0D070×2i201709-202207

main75955-0D080×2i201802-202108

main75955-0D090×2i201804-202101

7401

75129CCUSHION, REAR LICENCE PLATE

main75129-0D030×2i201709-202101

main75129-0D050×2i201403-201712

main75129-0D110×2i201806-201910

81952DCOVER, REAR LAMP

main81952-0D100-C0i201610-201712

BLACK,TRIM2#

9046710161

main90467-10161

90467T0021

main90467-T0021

9095006125

main90950-06125

18 parts on this diagram · 2 diagrams in section
